Nearly 40% of energy in commercial buildings is consumed by heating, ventilation, and air conditioning systems, including thermostatic controls, supply fan, fan motor, and electric resistance. The dual duct HVAC system, with thermostatic controls and an air handler, stands out as a savvy solution for precise temperature control and efficient air distribution of cool air. By leveraging separate pathways for cool and warm air with thermostatic controls and a control system, it offers unparalleled climate customization within different zones of a building through the use of dampers and fan motors. This efficient approach not only caters to diverse comfort needs through optimized air distribution and cool air flow but also aligns with energy-saving goals by integrating an effective air handler.

In the world of HVAC, understanding your options for air flow, supply air, and cool air can mean the difference between cost-effective comfort and wasted resources with valuable tips. Dive into the mechanics of dual duct systems, exploring how dampers regulate the supply of cool air to provide both flexibility and efficiency in modern climate control.

Understanding Dual Duct HVAC System Components

Core Elements

A dual duct HVAC system has several key components. At its heart are the supply fans. These fans push air through the system. Next, there are heating and cooling coils. They adjust the air temperature to the desired level.

The system also includes mixing boxes. Here, hot and cold air streams come together. The mix provides a comfortable climate indoors.

Hot and Cold Ducts

This setup relies on separate pathways for temperature control: one set of supply ducts delivers hot air with a damper; another set carries cold air through the return ducts. The distinct paths allow for precise temperature management in different zones with cool air and supply air.

Hot supply ducts transport warm air during colder months or in cooler areas of a building. Conversely, cold ducts supply chilled air when it’s needed to bring down indoor temperatures.

Air Flow Regulation

Dampers play a crucial role here by regulating airflow from both types of primary air ducts, including supply ducts, into mixing boxes where they converge before distribution throughout a space.

They function like valves that can open or close to control the supply of how much hot or cold air enters the mixing box at any time, balancing out the overall temperature as necessary.

How Dual-Duct HVAC Systems Operate

Air Delivery

Dual-duct HVAC systems supply both hot and cold air. These systems have two separate ducts for supply and return air types. This allows them to deliver the right temperature and supply cool air at any time.

One supply duct carries cool air, while the other carries warm air. Depending on what you need, the system supplies either hot or cold air or a mix to your room.

Mixing Process

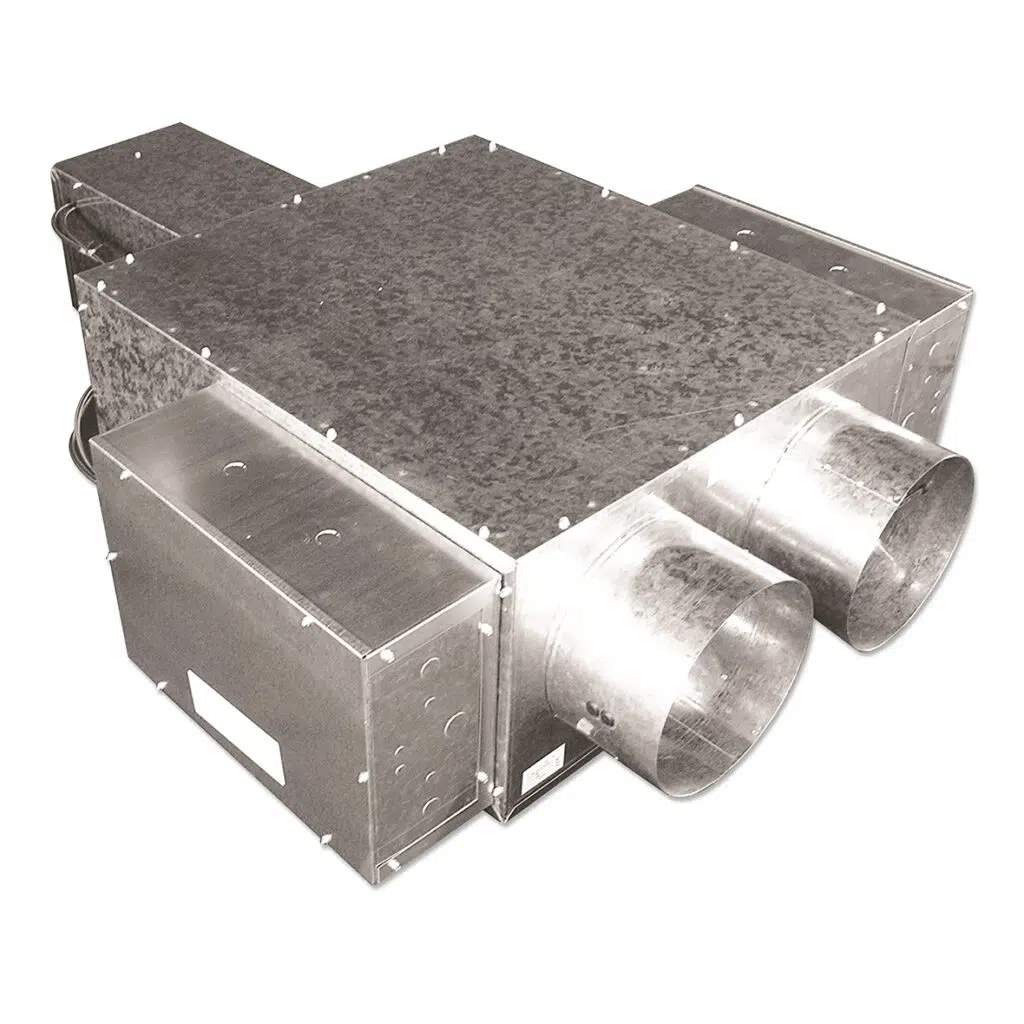

The key to these systems is how they supply and mix the air. A device called a mixing box does this job. It combines hot and cool air streams to get just the right supply air temperature.

Imagine it’s winter but sunny out, so your room gets too warm despite the cool supply air. The system can supply more cool air than hot to balance it out.

Thermostat Demand

It all starts with a thermostat in your space that tells the system what you want, whether it’s supply air or cool air. You set a desired temperature, and then things kick off from there, supplying cool air.

First, sensors tell if more heat or cooling is needed in the supply air. Then, motors adjust supply air dampers inside ducts based on that info. Finally, mixed air comes through vents into your room until it’s perfect for you.

This sequence ensures comfort without wasting energy by only using the necessary supply air.

Dual Duct VAV vs. Single Duct VAV Systems

Temperature Flexibility

Dual duct systems offer superior temperature control. They use two separate ducts for cool and warm air. This allows precise adjustments to the room’s temperature and supply air as needed. For example, on a hot day, more cold air can be mixed in the VAV mixing box, ensuring comfort.

Single duct systems lack this flexibility. They deliver one type of air at a time, either heated or cooled. Adjusting temperatures quickly is harder with these systems.

Airflow Distribution

The dual duct system uses separate pathways for different air temperatures. It means airflow distribution is more evenly managed throughout a building.

In contrast, single duct systems may struggle with even distribution of supply air. Some areas might get too much heat while others stay cool due to this limitation in supply air distribution.

Space Requirements

Installing dual duct HVAC requires more space than single ones do because it has two sets of ductwork.

A single duct system needs less room in comparison since it uses just one pathway for all its airflow tasks.

Advantages of Dual Duct HVAC Systems

Precise Control

Dual duct systems excel in temperature management. Different zones can have unique settings. Imagine a large office: the conference room needs cooling during a busy meeting, while someone prefers warmth in their private office. This system handles such scenarios with ease.

The key is separate ducts for cool air and warm air. They mix at controlled ratios before reaching each zone. Users experience consistent comfort without major fluctuations.

Air Quality

Improved indoor air quality is another benefit. Dual duct systems use two streams of airflow: one for cool and one for warm air. Separate pathways mean less chance of cross-contamination between different air types.

Consider allergy sufferers or those sensitive to dust; this design can make a real difference in their comfort levels by providing cleaner breathing spaces through better filtration and reduced recirculation of indoor pollutants.

Load Adaptability

Adaptability shines when discussing dual duct HVAC’s strengths. It adjusts to changing demands across various areas efficiently, which is not just about temperature but also about handling the load – how much heating or cooling an area requires at any given time.

A sunny side room might need more cold air on a bright afternoon, whereas shaded areas require less intervention from the system due to natural coolness provided by lack of direct sunlight exposure – dual duct systems manage these variations smoothly without wasting energy where it’s not needed.

Disadvantages of Dual Duct HVAC Systems

Installation Costs

Dual duct systems often cost more to install than single duct options. This is because they require two separate sets of ductwork. The materials and labor needed for this can quickly add up. For instance, a homeowner may find the initial investment significantly higher when choosing a dual duct system.

The complexity of these systems also means that skilled technicians are necessary for installation. This specialized work further increases the overall cost.

Space Requirements

Another issue with dual duct systems is their need for more space. They have extensive networks of ducts that must run throughout a building. In some structures, finding room for all the necessary components can be challenging.

This requirement might limit design options or necessitate remodeling work to accommodate the large volume of ducts. It’s not uncommon for architects and builders to face difficulties integrating these systems into existing spaces without significant alterations.

Energy Consumption

If not managed correctly, dual duct HVAC systems can lead to higher energy use. Since there are two separate airflow streams to control, it’s vital that they are properly regulated.

Without precise management, one stream could overcompensate for the other, leading to wasted energy and increased costs. Properly calibrated controls and routine maintenance become essential in preventing inefficiency.

Zone Control in Dual Duct HVAC Systems

Individual Thermostats

Dual duct HVAC systems allow each zone to have its own thermostat. This means that different areas can be set to different temperatures. For example, a sunny room might need more cooling than a shaded one.

With individual thermostats, people can change the temperature in their space without affecting others. This leads to better occupant comfort as everyone can choose what feels best for them.

Zoning Benefits

Zoning is smart for saving energy too. It stops heating or cooling empty spaces unnecessarily. Here’s how it works:

This way, dual duct systems are efficient and keep costs down.

Climate Flexibility

Buildings often have rooms with varied climate needs. A kitchen may get hot while an office stays cool.

A dual duct system sends warm or cold air where needed by controlling the air stream and static pressure of each zone’s supply air. This flexibility ensures all parts of a building stay comfortable year-round.

Terminal and Reheat Options in Dual Duct Systems

Unit Types

Dual duct HVAC systems offer two main terminal units: constant volume (CV) and variable air volume (VAV). CV units deliver air at a consistent rate, regardless of the temperature demand. This simplicity can be a plus, but it lacks flexibility.

VAV units adjust airflow based on need. A thermostat measures room temperature against the set point. When temperatures deviate, the VAV unit changes airflow to compensate. This method is more energy-efficient than CV because it matches cooling or heating delivery to current conditions.

Reheat Function

Reheat options are crucial for precise zone control in dual duct systems. They use a reheat coil within the terminal unit to warm up cooled air when necessary. The process works like this:

  1. Primary air flows into the system.
  2. If too cold for comfort, it passes over a heated coil.
  3. Warmth adjusts to match desired conditions.

This setup prevents overcooling spaces during summer months when only slight cooling is needed or providing warmth during colder periods without affecting other zones’ temperatures.

Reheating typically happens when return air isn’t enough to maintain comfort or if there’s excess supply air due to minimum position settings of VAV dampers. It’s an effective way of ensuring individual comfort while maintaining overall system efficiency.

Energy Efficiency and Fan Control in Dual Duct Systems

Variable Speed Drives

Variable speed drives (VSDs) can cut energy use. They adjust the fan motor’s speed to match the air flow needed. This means less wasted electricity.

A single fan with a VSD is more efficient than multiple fans at fixed speeds. It reacts to changes in demand for heating or cooling.

Summary

By now, you’ve got the lowdown on dual duct HVAC systems. These setups offer tailored comfort with their zone control, andThey’re tough to beat. Sure, they’ve got some downsides—higher initial costs and space demands could be deal-breakers for some. But if you’re after precise temperature control in different zones of your building, a dual duct system could be your ticket.

Ready to crank up your climate game? If a dual duct HVAC system sounds like it fits the bill, reach out to a pro and chat about your options. It’s a big decision, but you’ve got this—after all, who doesn’t want their own comfort zone? Go on, take control of your space’s vibe!

Frequently Asked Questions

What is a dual duct HVAC system?

A dual duct HVAC system uses two separate air ducts, one for cool air and another for warm, to maintain desired temperatures in different zones of a building.

How does a dual-duct system differ from single-duct VAV?

Unlike single-duct systems that use one duct to deliver variable air volumes, dual-duct systems have two pathways allowing simultaneous delivery of hot and cold air for precise temperature control.

What are the main advantages of using a dual duct HVAC system?

Dual duct systems offer superior zone control with the ability to precisely adjust temperatures in different areas, making them ideal for buildings with diverse heating and cooling needs.

Are there any disadvantages to dual duct HVAC systems?

Yes, they can be more complex and costly to install and operate compared to simpler single-duct setups due to additional components like extra ductwork.

Can terminal reheat be used with dual duct systems?

Absolutely! Terminal reheat options work well with these systems by reheating cooled air at the zone level if necessary, offering even finer temperature adjustments.

How energy efficient are dual duct HVAC systems?

While offering excellent climate control, older models may not be as energy-efficient as other modern designs. However, advancements like variable speed fans have improved their efficiency significantly.
