Key Takeaways
- Ready the tank and materials in advance for an efficient and safe install, and heed the manufacturer’s directions to optimize.
- Be sure to measure height and circumference and allow for space for pipes and valves, so there will be no gaps and the insulation fits snugly.
- Select your insulation by R-value, safety near gas units, and climate requirements. Fiberglass provides high R-value, reflective foil shields radiant heat, and natural fibers offer eco-friendliness.
- Insulate pipes — both hot lines near the tank and cold lines in unheated spaces — to speed hot water delivery, prevent freezing, and reduce energy loss.
- Leave the thermostat, burner, pressure relief valve, and vents uncovered and cut exact openings to prevent safety hazards and support proper heater function.
- Check your completed installation for gaps, wetness, and tightly sealed seams. Monitor energy consumption before and after installation to verify savings and life extension.
How to insulate a water heater for efficiency describes the process of minimizing heat loss and energy consumption.
With a dedicated blanket, sealed gaps around pipes, and insulation on the first 50 to 100 millimeters of inlet and outlet pipes, standby heat loss was reduced. Efficient insulation may save 5 to 10 percent on water heating costs, depending on your tank type and local temperatures.
The guide below details supplies, safety considerations, and direct steps.
Installation Guide
Insulation minimizes standby heat loss and enhances system efficiency. Prior to the bullets, ready yourself by either cutting power or setting gas to pilot, collecting your tools and materials and clearing the local area so you can work safely and distraction free.
- Shut off power (electric) or gas to pilot. Shut cold-water supply if necessary.
- Collect insulation blanket or pre-cut kit, tape or straps, utility knife, measuring tape, marker, gloves, mask, and ladder.
- Measure tank height, circumference, and pipe locations and clearances.
- Then clean the tank surface and inspect for leaks, rust, or moisture.
- Cut and fit insulation, carefully cutting out for the thermostat, burner, and pressure relief valve.
- Fasten insulation with tape or straps. Overlap seams. Leave access points open.
- Install a drain pan under the unit if the floor is susceptible to water damage.
- Recheck all fittings, turn on power or gas, and observe for leaks and condensation.
1. Safety Protocol
Turn power off at the breaker on electric tanks and on gas units put on pilot. Wear gloves, a dust mask, and long sleeves. Fiberglass and even some loose-fill materials can irritate skin and lungs.
Maintain good ventilation during application, particularly in confined basements. Do not cover thermostat, burner access, pressure relief valve, vents or wiring. For seismic zones, install a minimum of two 22-gauge straps to anchor the tank.

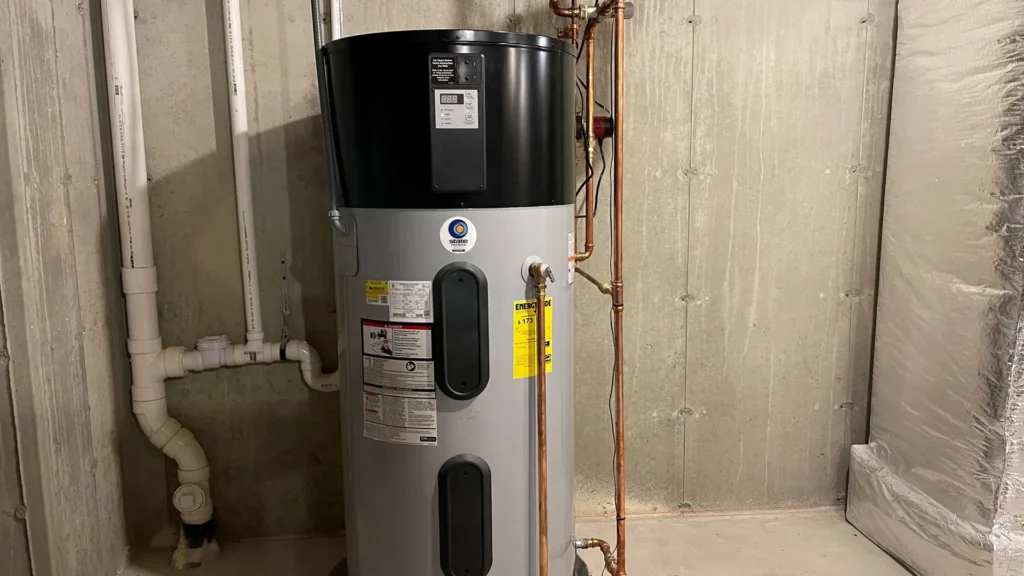

If you install a heat pump water heater, add flex piping at the inlet and outlet to reduce vibration and enable minor shifting.
2. Correct Measurements
Measure height and circumference with care and note values. Include tank sides, top clearance, pipe entries and access panels in your list.
Allow for valves, wiring, and insulation thickness. Verify every number. A minor mistake can create holes that decrease efficiency.
3. Material Selection
R-value and cost comparison of fiberglass blankets, reflective foil wraps, and natural fibers. Select a higher R-value where winters are harsh or for poorly insulated plant rooms.
My pre-cut kits are a real timesaver and they reduce waste. Anything in contact with or adjacent to a gas burner or hot surface should be rated as safe for such conditions.
4. Surface Preparation
Rinse the tank with a mild soap and dry. Check for leaks, rust or old insulation. Repair or replace any problems prior to wrapping.
Get rid of junk and clean it out. If leaks can occur, install a drain pan and route condensate lines so they can be cleaned annually.
5. Wrapping Technique
Wrap insulation loosely — compression decreases R-value. Overlap seams, and tape or straps hold material tight.
Open 5 to 10 centimeters around controls and valves. Insulate the cold-water inlet for the initial 1 meter and the hot pipes within 1 meter of the heater.
6. Essential Cutouts
After marking the location of the thermostat, burner and pressure relief valve, cut the holes. Apply a box cutter to the edges.
Don’t cover vents or wiring. Leave access open for six-monthly relief valve inspections and tank flushing in hard-water locations.
7. Final Inspection
Inspect for any gaps, loose edges, or exposed fittings. Check for warm spots to verify coverage and observe for any condensation.
Clean air filters every 6 to 12 months and flush condensate lines annually.
Insulation Materials
Insulation materials reduce heat loss from water heaters and thereby improve efficiency, which can often shave annual water heating costs by 7 to 16 percent depending on use and climate. Blankets, wraps, reflective barriers, and specialized jackets are all options. Select according to heater type, local climate, safety clearances, and whether the unit is factory insulated.
Fiberglass
Fiberglass provides an excellent R-value and heat retention in wraps or blankets around tanks. It hugs round tanks beautifully and can even be stacked to boost the R-value in areas with extra room.
Be careful with fiberglass. Loose fibers can be an irritant to skin, eyes, and lungs. Wear gloves, long sleeves, eye protection, and a dust mask when cutting or fitting. Seal edges with foil tape to reduce fiber release and enhance vapor control.
Fiberglass is the least expensive and is available in blanket or batt form and in jackets for water heaters. It operates on standard tank storage heaters and on indirect water heaters plumbed to space-heating systems. Cutouts are required for valves and controls and provide access for burners, thermostats, and the pressure-relief valve.
Reflective Foil
Reflective foil insulation, including radiant barrier products like Reflectix, reflects radiant heat and minimizes standby heat loss, particularly where radiation to the room is substantial. It works best in a warm climate or unheated area where preventing heat from escaping the tank to a cold ambient is the primary concern.
It’s lightweight and simple to install. You just wrap it around tanks and tape it with foil tape. It’s less bulky than fiberglass and good for tight clearances. It fits pipe wrapping where bends and tight fits are required.
Reflective foil is best as an additional layer with a bit of air gap for the reflective surface to do its magic. For gas heaters, make sure the foil is not covering combustion air paths or blocking access to burners. For electric heaters, foil is fine because there aren’t any combustion clearances.
Natural Fibers
Natural fiber alternatives are wool, cotton, hemp, and recycled cellulose blends that score well for low embodied energy and sustainable qualities. They’re easier on the hands than fiberglass and a nice, natural pick for homeowners looking for greener upgrades.
Check fire resistance and moisture behavior before use. Some natural fibers absorb moisture or may need a fire-retardant treatment to meet safety needs. Use products rated for at least the temperatures found on a water heater surface.
Natural fibers can be cut to fit around valves and pipes, but maintain required clearances and keep the pressure-relief valve and burner areas free.
Material comparison (brief): fiberglass has a low cost, high R-value, and moderate irritation. Reflective foil has low bulk, is easy to install, and works best with an air gap. Natural fibers are green, soft to the touch, and have inconsistent price and fire or moisture properties.
Choose based on climate, heater type, and whether pipes need insulation too.
Pipe Insulation
Pipe insulation decreases heat loss from hot lines and heat gain on cold lines, boosting overall water heater efficiency and typically reducing water heating energy by about 4 to 9 percent. Pipe insulation should be done on new installs or as a DIY retrofit. Concentrate initially on exposed runs in unheated areas and on the initial sections of pipe adjacent to the tank, where most codes and effective benefits occur.
- Types of pipe insulation and benefits:
- Closed-cell foam (pre-slit tubes): easy to fit, low cost, good for most domestic copper or CPVC pipes, resists moisture.
- Fiberglass with jacket: high-temperature tolerance, good for hot surfaces, fits irregular runs, better for external or attic installations.
- Rubber (elastomeric) foam: flexible, resists condensation, long lasting in damp spaces.
- Foam tape: good for tight bends and small-diameter runs, simple to wrap.
- Mineral wool: for high-temperature or fire-rated needs, used where manufacturer specs require.
- Reflective foil wraps: reduce radiant heat gain in hot climates, best combined with foam or fiberglass.
- Specialty jackets: for valves and fittings, can be cut and sealed to fit.
I always recommend foam or fiberglass insulation for most residential applications. Foam provides the speediest install and decent insulating value for typical hot and cold water pipes. Fiberglass is superior where higher heat or exposed runs require tougher cover.
Cut around valves and fittings and cement or glue if necessary. Certain electric water heaters come with their own insulation instructions and consult the manufacturer.
Hot Water Lines
Insulate hot water lines to maintain temperature between the tank and fixtures. This minimizes standby loss and wait time for hot water and reduces energy consumption and water waste.
Begin insulation as close to the tank as possible. Many jurisdictions require insulating the first few meters; a typical rule of thumb is the first 1.5 meters or 5 feet. Use pre-slit foam tubes for quick fit: slice open, wrap around the pipe, and seal with tape.
For tees and valves, cut foam pieces to fit or use removable valve jackets so service continues to be possible.
Cold Water Lines
Insulate cold water pipes to prevent condensation and to reduce the risk of freezing where applicable. In chilly regions or cool basements and attics, insulation keeps pipes from bursting and causing water damage.
The cold inlet from the tank can pick up heat if run near hot equipment – insulate this line too. Select either foam or rubber pipe insulation, with foam offering less resistance to condensation than rubber but being easier to install.
Insulating cold lines supports your general home temperature management by maintaining separation and stability between hot and cold circuits.
Performance Impact
When you insulate a water heater, it shifts the dynamics of the entire system by reducing heat loss, easing the heater’s burden, and decreasing energy consumption. This section breaks the main effects into temperature stability, recovery rate, and energy savings, with practical notes on pipes, equipment access, and expected savings.
Temperature Stability
Insulation maintains a consistent water temperature throughout the day. It closes heat leaks that cool the tank down between uses, so the thermostat experiences smaller dips and maintains set points more easily. That decreases the frequency with which the heater cycles on and off, which conserves fuel or electricity and decreases wear on controls and element components.
Homes with high hot-water demand see a more noticeable advantage. Insulation helps hold temperatures steadier during back-to-back showers or when multiple appliances are simultaneously running. Insulating hot water pipes sends faucet and shower temperature soaring and reduces hot water lag, which increases comfort without turning up the thermostat.
Recovery Rate
Performance impact: an insulated tank delivers usable hot water sooner after heavy draws. The insulation blanket holds core temperatures higher, so after a shower, the system requires less heat input to warm new cold water to the set temperature. That compresses inter-shower or appliance cycle wait time and alleviates stress on the heater element or burner.
For bigger families or locations with multiple simultaneous usage, more rapid recovery translates into less wait time and lowers the stress on elements, which typically prolongs service life. Keep in mind that modern heaters already come well insulated right from the factory. The improvements are smaller unless the unit is located in a really drafty, cold room.
Energy Savings
| Scenario | Monthly water-heating cost (USD) before | Monthly after insulation |
|---|---|---|
| Typical home (baseline) | 40.00 | 33.60 |
| cold-storage location (higher loss) | 55.00 | 36.75 |
Insulation can reduce standby heat loss by as much as 45% and save up to 16% of total water-heating expenses. Sealing heat loss into floors can provide an additional 9% in savings. Most projects pay back in a few years, depending on the local energy prices and how cold the storage area is.
Measure energy consumption prior to and subsequent to insulation. Juxtapose monthly bills or meter readings to observe tangible savings and construct a straightforward graph to illustrate trends. Be aware of trade-offs. Wrapping a tank can hide temperature and pressure relief valves and make maintenance harder. Certain owners observe minimal difference, therefore compare install cost with likely returns for your own case.
Common Mistakes
Water heater insulation can be an energy-saving measure if applied properly. Homeowners tend to make a few predictable mistakes that diminish the benefits or generate hazards. Below subsections enumerate common pitfalls, why they matter, and actionable steps to avoid them. Consult the checklist at the end to make sure you hit the fundamentals.
Obstructing Vents
Blocking air vents or the exhaust on gas-fired water heaters interferes with combustion and airflow, making it dangerous. Vents must be clear so the burner receives fresh air and combustion gases can vent. Covering or compressing the vent when installing insulation invites carbon monoxide poisoning, which is often fatal.
Check vent locations twice before cutting or wrapping insulation. Leave the clearance specified by the manufacturer around the draft hood, flue, and air openings. If the heater resides in a closet or unheated area, you might want to insulate it with a heat-resistant insulating jacket, cut to snake around vents or properly gapped rigid foam panels.
NEVER close vents with regular duct tape or non-rated material. When in doubt, refer back to the unit manual or a certified technician to verify allowed clearances.
Improper Sealing
Gaps, loose seams and poorly taped joints accomplish the same as no insulation at all because heat escapes through them. Insulation is effective only if it creates an almost airtight layer surrounding the tank and pipes. Use high quality foil tape or insulation tape that is rated for the material and temperature range, not some ordinary cloth or masking tape.
Verify all edges, overlaps and cutouts—especially around top and bottom access panels and thermostat wells—are tight after installation. Search for cold spots by hand feel or infrared thermometer and re-seal loose areas immediately.
When applying fiberglass or blanket jackets, overlap seams by a minimum of 50 mm and fasten with stainless steel bands or zip ties where possible. Poor sealing seals in moisture, which can diminish r-value and encourage corrosion as well.
Neglecting Pipes
Not insulating hot and cold water pipes is a common oversight that results in heat loss and lower outlet temperatures. Pipe insulation is cheap and easy and should be in the mix. Insulate any hot water lines that are accessible coming out of the heater, and consider cold-pipe insulation in unheated areas to avoid freezing.
Not insulating fittings and short runs near your tank creates thermal bridges that decrease your system efficiency. Check elbows, unions, and valves and use pre-slit foam sleeves or wrap with self-adhesive tape for seamless coverage.
Keep in mind that older tanks may already be inefficient, so verify the unit’s age and condition before investing in the pipe work for a near-end-of-life system.
Checklist of mistakes to avoid
- Block vents
- Leave seams unsealed
- Skip pipe insulation
- Set water temperature above 60 degrees Celsius (140 degrees Fahrenheit)
- Ignore location and unit age
- Use improper tapes
- Install in a way that traps moisture.
The Unseen Benefits
Wrapping a water heater and pipes in insulation does more than cut a smidge off monthly bills. It shifts how the system runs and how the home performs. Let’s begin with energy and emissions. Water heating is generally the second largest energy cost in a home, accounting for approximately 18% of utility expenditures.
Cutting down on heat loss means the heater doesn’t run as much. Insulation disrupts heat transfer so water remains warmer longer and the unit avoids additional reheating cycles. That reduction in run time reduces the impact of energy consumption and lowers the household carbon footprint, an easy local step toward more green living. With today’s blanket materials and pipe wrap significantly better than earlier designs, the savings are more stark and consistent.
Comfort increases in immediate, quantifiable manners. Less cold snaps at the tap and more consistent delivery mean people sense hot water that is more steady. Pipe insulation can increase faucet temperature by 2 to 4 degrees Fahrenheit (1 to 2 degrees Celsius) over uninsulated lines, so showers start warmer and remain that way.
That counts in homes with long runs from tank to bathroom or in cooler climates where heat loss along the line is considerable. The improved temperature retention likewise cuts down on the time you need your water to run longer to get hot, thereby saving water and energy.
System longevity and fewer repairs ensue from softer handling. The less often a heater cycles on and off, the less wear on mechanical and electrical parts. Fewer on-off cycles indicate that the thermostat, heating element, and burner are subjected to less stress, which may reduce repairs and extend service life.
A little extra insulation can go a long way toward increasing the efficiency of the unit and extending its life, particularly for older tanks where the initial insulation was minimal or non-existent.
Home value and direct ROI are pragmatic points a lot of people forget. A small investment in a water heater blanket and pipe insulation returns rapid dividends. Insulation not only reduces heat loss but can yield about 7% to 16% savings on annual water heating costs.
With low material and labor costs, the upgrade can frequently pay for itself within a year. For sellers or upgrade planners, a well-insulated furnace is an obvious, inexpensive upgrade to advertise. Pipe wraps and blankets are inexpensive immediate measures that work everywhere and are easy to install, while new tanks with enhanced factory insulation deliver longer-term benefits.
Conclusion
Water heater insulation reduces heat loss, trims energy bills, and delivers ready-hot water quicker. Most models come with a 50 to 100 mm (2 to 4 in) blanket which you wrap around the tank. Place foam sleeves or tape-on wraps on exposed pipes and maintain a 5 cm (2 in) clearance around the thermostat and burner. Factor in R-value and select water-resistant material. Seal seams with heat-safe tape and zip ties for a nice, tight fit. Easy fixes such as repairing pipe leaks and setting the thermostat to 49 to 52 °C (120 to 125 °F) add savings. Small steps build real gains: lower bills, less wear on the heater, and steadier hot water. Go with your basic blanket and pipe foam first, then layer on the upgrades if the savings tempt you.
Frequently Asked Questions
How much energy can I save by insulating my water heater?
Water heater insulation can reduce standby heat loss by 7 to 16 percent. Savings depend on heater age, insulation added, and climate. Anticipate reduced energy costs and quicker recovery times, particularly for aging or inefficient tanks.
What insulation materials work best for a water heater?
Wrap with an approved water heater blanket of fiberglass or mineral wool with an outer foil layer. For ease of installation, opt for pre-cut jackets with adhesive closures. Make sure the material is rated for your heater’s surface temperature.
Can I insulate a tankless water heater or only tank models?
You can insulate inlet and outlet pipes on tankless systems but not the unit. Insulating any exposed pipes from your water heater helps reduce heat loss and increase response time. Check with the manufacturer’s instructions to avoid voiding the warranty.
How thick should pipe insulation be?
For most residential hot and cold pipes, use 13 to 19 mm (1/2 to 3/4-inch) foam or rubber insulation. Thicker is better, especially in colder climates. Tape joint and valve coverings with removable insulation for maintenance.
Is it safe to install a water heater blanket myself?
Sure, if you read directions and shut off power or gas first. Do not cover controls, thermostat, or venting with insulation. If you’re not certain, just hire a licensed technician who can do the job safely and without invalidating your warranty.
How long does water heater insulation last?
Good quality blanket or pipe insulation can last 10 to 20 years if not exposed to moisture and physical damage. Check every year for moisture, tears or compression and replace when degraded to keep efficiency gains.
Will insulating my water heater improve hot water availability?
Indirectly, yes. Standby loss is reduced by insulation, so water stays hotter longer and recovery can be marginally faster. This leads to more consistent hot water and less frequent reheating.
