Placing an HVAC system in the attic is a common practice in many homes, offering a space-saving solution that can keep mechanical equipment out of sight and out of mind. However, this decision comes with a complex set of trade-offs that can significantly impact your home’s energy efficiency, comfort, and long-term maintenance costs. According to research from the National Renewable Energy Laboratory (NREL), typical HVAC systems with ductwork in attics can lose a staggering 25% to 40% of their heating and cooling energy.^[1] This comprehensive guide will explore the critical factors you need to consider when evaluating an attic HVAC system, from building code requirements and insulation standards to the practical realities of maintenance and safety. By understanding both the advantages and the significant risks, you can make an informed decision that ensures your home remains comfortable, efficient, and safe for years to come.

The Context: Why Attic HVAC Systems Are a Critical Home Decision

The decision of where to locate a home’s HVAC system has become increasingly important as energy costs rise and building standards evolve. For decades, attics have been a popular choice for builders, especially in regions with mild climates or where basements are uncommon. The primary driver for this trend has been the desire to maximize living space and reduce construction costs. By placing the bulky furnace and air handler in the unused attic space, builders can free up valuable square footage in the main living areas, closets, or utility rooms. This approach also simplifies the ductwork installation process in many single-story homes, as it provides a central, overhead location for the air distribution network.

However, this convenience comes at a significant cost to energy efficiency and system longevity. The attic is typically the most extreme environment in a home, with temperatures that can soar to over 150°F (65°C) in the summer and drop below freezing in the winter.^[2] Placing an HVAC system and its ductwork in such a harsh environment forces the equipment to work much harder to maintain a comfortable indoor temperature. This not only leads to higher energy bills but also puts significant strain on the system’s components, potentially leading to premature failures and costly repairs. As building science has advanced, the focus has shifted towards creating a more controlled and conditioned environment for HVAC equipment. Modern building codes and energy efficiency programs, such as those from the Department of Energy (DOE), now strongly advocate for placing HVAC systems within the home’s conditioned space to minimize energy losses and improve overall performance.^[3] This has led to a growing debate among builders, HVAC professionals, and homeowners about the long-term viability of attic installations and the importance of investing in more efficient and sustainable home designs.

Analysis: The High Cost of Inefficiency in Attic HVAC Systems

The most significant drawback of placing an HVAC system in an unconditioned attic is the substantial energy penalty it imposes. The extreme temperatures in the attic directly impact the efficiency of both the HVAC unit and the ductwork, leading to a significant waste of energy and money. The U.S. Department of Energy (DOE) has extensively researched this issue, highlighting the critical need for proper insulation and air sealing to mitigate these losses. According to a report from the National Renewable Energy Laboratory (NREL), duct systems in unconditioned attics can lose between 25% and 40% of the heating or cooling energy that passes through them.^[1] This means that for every dollar you spend on heating or cooling your home, up to 40 cents could be lost before the conditioned air even reaches your living space.

These energy losses occur in two primary ways: conduction and air leakage. Conduction is the transfer of heat through the walls of the ductwork. In the summer, the hot attic air heats the cool, conditioned air inside the ducts, forcing the air conditioner to run longer to cool your home. In the winter, the cold attic air robs heat from the warm air in the ducts, making your furnace work harder to keep you warm. Air leakage, on the other hand, occurs when conditioned air escapes from poorly sealed duct connections. These leaks not only waste energy but can also introduce dust, allergens, and other pollutants from the attic into your home’s air supply, negatively impacting indoor air quality.

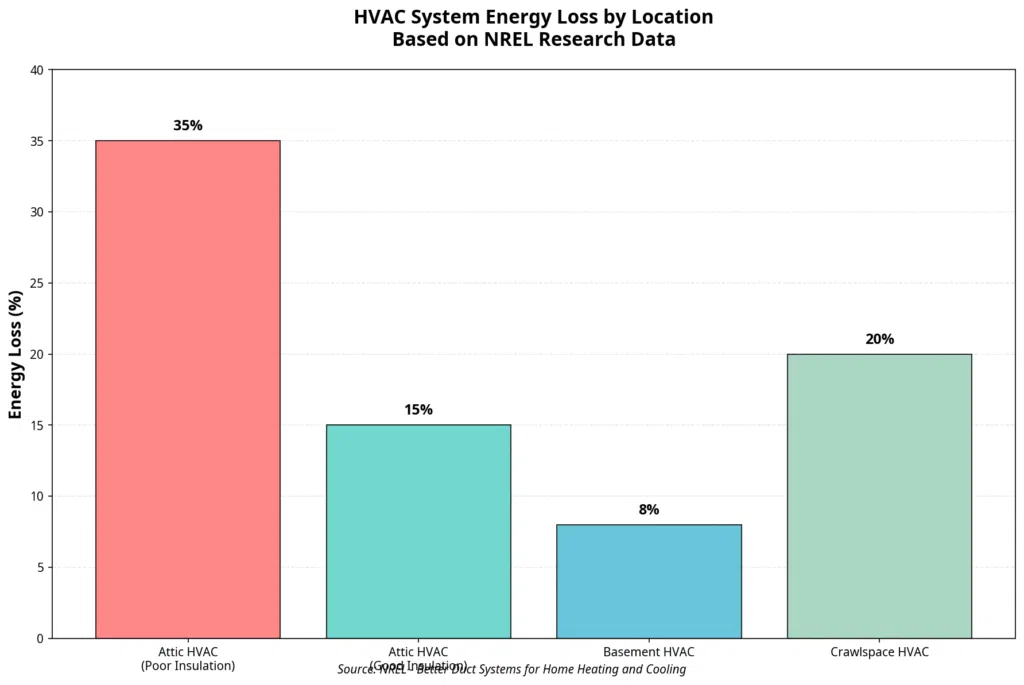

label,value
Attic HVAC (Poor Insulation),35
Attic HVAC (Good Insulation),15
Basement HVAC,8
Crawlspace HVAC,20

The financial implications of this inefficiency are substantial. The Environmental Protection Agency (EPA) estimates that homeowners can save an average of 15% on heating and cooling costs by air sealing their homes and improving insulation.^[4] For a home with an attic HVAC system, these savings can be even greater. By properly sealing and insulating the ductwork and the attic itself, homeowners can significantly reduce the energy losses and lower their utility bills. However, these retrofits can be costly and complex, often requiring the expertise of a qualified HVAC professional. In many cases, the long-term cost of operating an inefficient attic HVAC system can far outweigh the initial savings in construction costs, making it a poor investment for homeowners who are concerned about energy efficiency and sustainability.

Analysis: Navigating the Complexities of Building Codes and Safety

Beyond the energy efficiency concerns, installing an HVAC system in an attic introduces a host of building code and safety challenges that must be carefully addressed. The International Residential Code (IRC), which serves as the basis for most local building codes in the United States, has specific requirements for attic installations to ensure the safety of both the home and its occupants. These codes are designed to provide adequate access for maintenance and repairs, as well as to prevent fire hazards and other safety risks associated with placing mechanical equipment in a confined and often combustible space.

One of the most critical code requirements is the provision of a safe and accessible service area for the HVAC unit. According to the 2021 IRC, attics containing appliances must have a clear and unobstructed passageway that is large enough to allow for the removal of the largest appliance.^[5] This passageway must be at least 30 inches high and 22 inches wide, with a continuous solid floor that is at least 24 inches wide. Additionally, a level service space of at least 30 inches by 30 inches must be provided on all sides of the appliance where access is required. These requirements are essential for ensuring that HVAC technicians can safely and effectively service the equipment without having to navigate treacherous terrain or work in cramped and unsafe conditions.

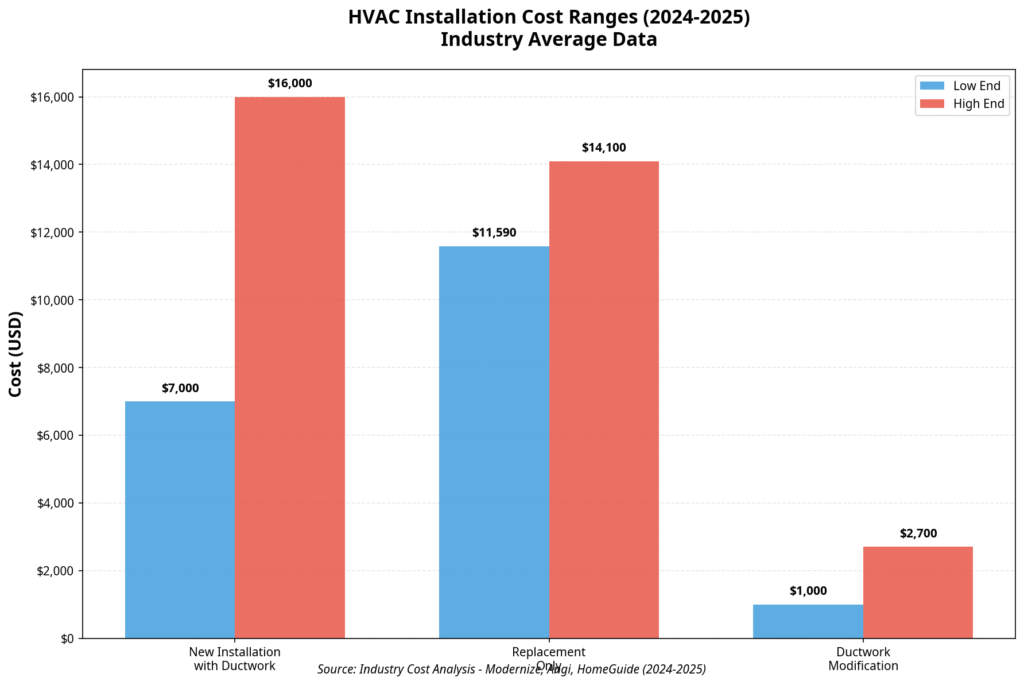

label,value
New Installation with Ductwork,7000,16000
Replacement Only,11590,14100
Ductwork Modification,1000,2700

In addition to the access requirements, the IRC also mandates specific electrical safety measures for attic installations. A luminaire controlled by a switch at the passageway opening and a receptacle outlet must be installed near the appliance to provide adequate lighting and power for service work.^[5] Exposed lamps must also be protected from damage to prevent accidental breakage and potential fire hazards. These electrical requirements are crucial for creating a safe working environment for technicians and for minimizing the risk of electrical fires in the attic. Failure to comply with these building codes can not only result in a failed inspection but can also create serious safety hazards that could have devastating consequences. Therefore, it is essential for homeowners to work with a qualified and licensed HVAC contractor who is knowledgeable about the local building codes and can ensure that the installation is done safely and correctly.

Analysis: The Practical Realities of Maintenance and Longevity

While the initial cost savings of an attic HVAC installation can be appealing, homeowners must also consider the long-term maintenance and longevity implications of this decision. The harsh environment of an unconditioned attic can take a significant toll on HVAC equipment, leading to more frequent breakdowns and a shorter lifespan for the system. The extreme heat in the summer can cause electrical components to fail, while the cold in the winter can make plastic parts brittle and prone to cracking. Additionally, the dust, debris, and humidity that are often present in attics can clog filters, corrode coils, and promote the growth of mold and mildew, all of which can negatively impact the system’s performance and indoor air quality.

Regular maintenance is essential for keeping any HVAC system running efficiently and reliably, but it is especially critical for units located in the attic. However, the difficult access and uncomfortable working conditions in many attics can make it challenging for homeowners and even professional technicians to perform routine maintenance tasks. Changing filters, cleaning coils, and inspecting ductwork can be a hot, sweaty, and dirty job in an attic, which can lead to these important tasks being neglected. This lack of maintenance can exacerbate the already harsh conditions in the attic, leading to a downward spiral of declining performance, increased energy consumption, and more frequent repairs.

The long-term financial consequences of these maintenance challenges can be significant. A well-maintained HVAC system can last for 15 to 20 years, but a unit that is subjected to the extreme conditions of an attic and is not properly maintained may only last for half that time. This means that homeowners with attic HVAC systems may find themselves facing the prospect of a premature and costly replacement. When you factor in the higher energy bills, the more frequent repairs, and the shorter lifespan of the equipment, the initial cost savings of an attic installation can quickly evaporate. Therefore, it is essential for homeowners to weigh the long-term costs and benefits of an attic HVAC system before making a final decision. In many cases, investing in a more efficient and durable system that is located within the conditioned space of the home can be a much smarter and more cost-effective choice in the long run.

Action Plan: A Step-by-Step Guide for Homeowners

If you are considering a home with an attic HVAC system or are planning to install one in your own home, it is essential to take a proactive approach to ensure that the system is as efficient, safe, and reliable as possible. This action plan provides a step-by-step guide to help you navigate the complexities of attic HVAC systems and make informed decisions that will protect your investment and your family’s comfort and safety.

Conduct a Thorough Inspection: Before purchasing a home with an attic HVAC system or proceeding with a new installation, it is crucial to have a qualified HVAC professional conduct a thorough inspection of the system and the attic environment. This inspection should include an assessment of the insulation levels, the condition of the ductwork, the accessibility of the equipment, and compliance with local building codes.
Prioritize Air Sealing and Insulation: One of the most effective ways to improve the performance of an attic HVAC system is to create a sealed and insulated attic space. This can be achieved by air sealing all the gaps and cracks in the attic floor and then adding a thick layer of insulation. The Department of Energy recommends an insulation level of R-38 to R-60 for most attics, depending on the climate zone.^[6] By creating a conditioned or semi-conditioned attic space, you can significantly reduce the temperature extremes and minimize the energy losses from the HVAC system and ductwork.
Ensure Proper Ductwork Design and Installation: The design and installation of the ductwork are critical for the performance of any HVAC system, but they are especially important in an attic installation. The ducts should be properly sized to ensure adequate airflow, and all the connections should be sealed with mastic or foil tape to prevent air leakage. The ducts should also be insulated to at least an R-8 level to minimize heat transfer.
Provide Safe and Easy Access: To ensure that the HVAC system can be properly maintained, it is essential to provide safe and easy access to the equipment. This includes installing a permanent staircase or pull-down ladder, a lighted walkway, and a service platform around the unit. These features will not only make it easier for technicians to service the equipment but will also reduce the risk of accidents and injuries.
Schedule Regular Maintenance: Once the HVAC system is installed, it is crucial to schedule regular maintenance with a qualified HVAC professional. This should include an annual inspection, cleaning, and tune-up of the system to ensure that it is operating at peak performance. Regular maintenance will not only improve the efficiency and reliability of the system but will also help to identify and address any potential problems before they become major issues.

Future Outlook: The Shift Towards Conditioned Attics and High-Performance Homes

The future of residential HVAC design is moving towards a more integrated and holistic approach that prioritizes energy efficiency, indoor air quality, and long-term sustainability. As building codes become more stringent and homeowners become more aware of the environmental and financial costs of energy waste, the practice of placing HVAC systems in unconditioned attics is likely to become less common. The industry is already seeing a significant shift towards creating conditioned or semi-conditioned attic spaces that are sealed, insulated, and brought within the home’s thermal envelope. This approach not only improves the performance of the HVAC system but also creates a more comfortable and healthier living environment.

The concept of the “high-performance home” is also gaining traction, with a growing number of builders and homeowners embracing advanced building science principles to create homes that are ultra-efficient, durable, and resilient. These homes often feature advanced framing techniques, continuous insulation, high-performance windows, and, most importantly, HVAC systems that are located entirely within the conditioned space. By eliminating the energy penalties associated with attic installations, these high-performance homes can achieve significant energy savings and provide a superior level of comfort and indoor air quality. As the cost of energy continues to rise and the impacts of climate change become more apparent, the demand for high-performance homes is likely to grow, further accelerating the shift away from traditional attic HVAC installations.

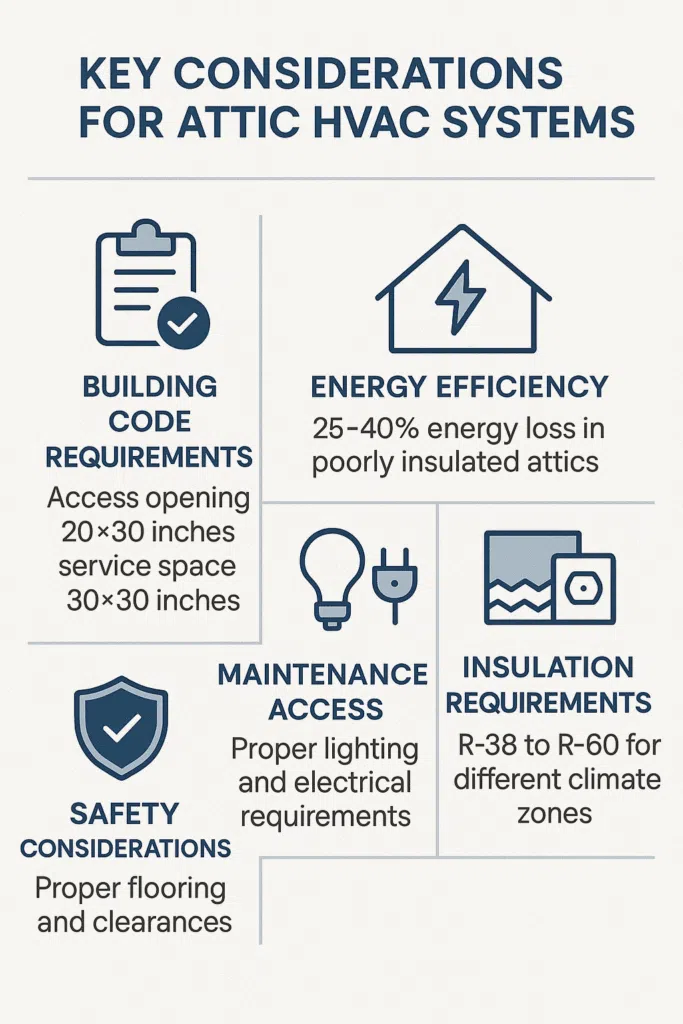

Key Takeaways

Attic HVAC systems can save living space but often come with a significant energy penalty, with NREL data showing potential energy losses of 25-40%.
Proper insulation (R-38 to R-60) and air sealing are critical for mitigating energy losses and improving the performance of attic HVAC systems.
Building codes (IRC) have strict requirements for attic installations, including safe access, service space, and electrical safety measures.
The harsh environment of an unconditioned attic can lead to more frequent breakdowns and a shorter lifespan for HVAC equipment.
The future of residential HVAC design is shifting towards high-performance homes with HVAC systems located within the conditioned space.
