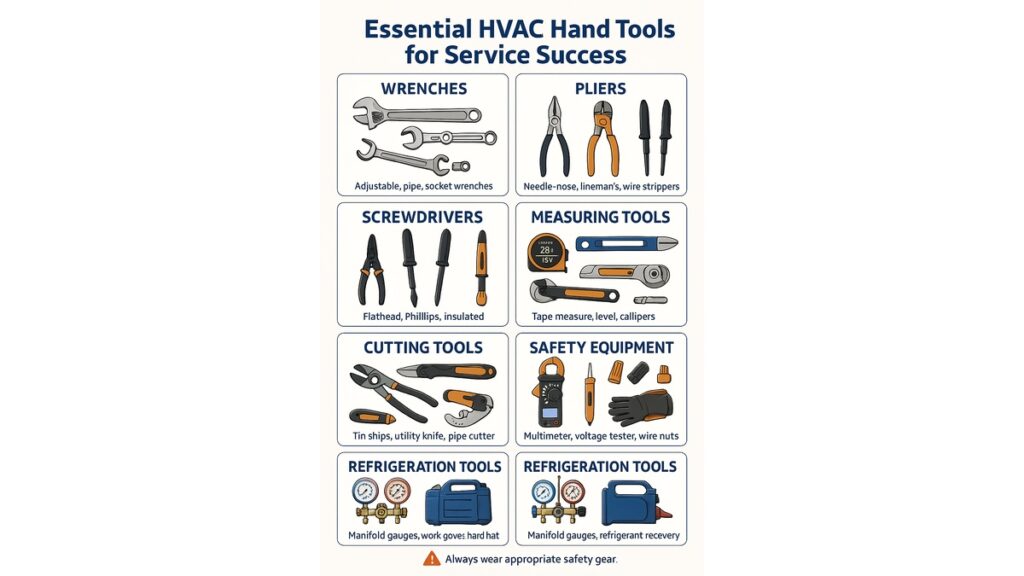

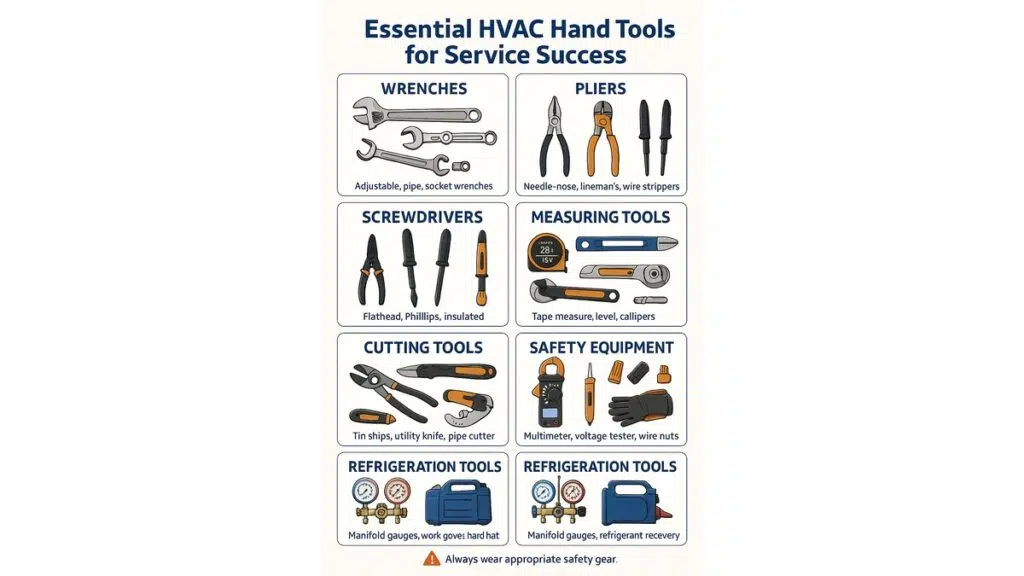

Essential HVAC hand tools fall into a handful of categories every technician relies on: adjustable and pipe wrenches, needle-nose and lineman’s pliers, Phillips and insulated screwdrivers, tape measures and levels, and tin snips and pipe cutters. Together they cover the mechanical, electrical, and refrigeration work behind a dependable service call, from a routine furnace tune-up to a full system install.
This guide walks through the core hand tools by job, not by brand, so you can see what actually earns a spot in the bag. It reflects how the crews at Northern Services Today work across west-central Minnesota, where hard water, long sub-zero winters, and rural properties on wells and propane around Olivia, Willmar, and Hutchinson put every tool to a real test.
Why the Right Hand Tools Matter on Every Service Call
When a furnace quits at 20 below or a sump pump fails during the spring melt, a technician’s hand tools are what actually get the system running again. Unlike meters or power tools, hand tools need no battery, give you direct feel for a fitting or fastener, and never leave you stranded in a rural mechanical room miles from the truck. That reliability is what separates a clean, lasting repair from a callback. The tools below are grouped by the job they do, so you can see how each one fits into everyday HVAC, plumbing, and electrical service.
Wrenches: The Backbone of Mechanical Work
Wrenches secure and adjust the threaded connections that hold a system together, from furnace gas unions to condensing-unit fittings.
Adjustable Wrenches
An adjustable wrench handles the odd sizes you meet in the field when you don’t know the fastener until you’re standing in front of it. Keep the jaws snug against the flats. A worn or sprung jaw that slips can round a nut and bark your knuckles, so retire any adjustable that no longer closes tight.
Pipe Wrenches
Pipe wrenches bite round stock with serrated jaws, which makes them the go-to for threaded steel gas pipe and iron water lines – common on the propane and well systems around rural west-central Minnesota. Use two: one to hold and one to turn, so you don’t twist a joint loose somewhere you can’t see.
Socket and Ratchet Sets
A socket set with both standard (SAE) and metric sizes speeds up repetitive fastening on blower assemblies, panels, and equipment mounts. The ratchet action saves your hand in tight cabinets where a full swing isn’t possible.
Service Valve Wrenches
A service valve wrench – the ratcheting refrigeration wrench with square sockets in 1/4″, 3/16″, 3/8″, and 5/16″ – turns the stems on an air conditioner’s suction and liquid service valves. It’s the tool that lets a technician isolate the refrigerant charge, connect gauges, and open the system back up without rounding a valve stem. If you’ve searched for an “HVAC service valve” and wondered how a tech operates one, this ratchet is the answer.
Pliers and Wire Tools
Modern furnaces and air handlers are as much electrical as mechanical, so a technician’s pliers pull double duty.
Needle-Nose Pliers
Their long, tapered jaws reach into crowded control boxes to seat a spade connector or free a pinched wire without disturbing everything around it.
Lineman’s Pliers
Lineman’s pliers cut, grip, and twist solid copper for line-voltage work – joining wires, pulling conductors, and shaping loops under a terminal screw.
Wire Strippers
Dedicated strippers remove insulation cleanly at the right gauge so you don’t nick the conductor. On low-voltage thermostat and control wiring, a clean strip is the difference between a solid connection and an intermittent fault that’s miserable to chase.
Screwdrivers and Nut Drivers
Flathead and Phillips
Between them, flat and Phillips drivers open nearly every access panel and terminal on residential equipment. Match the tip to the screw so you don’t cam out and chew up the head.
Insulated Screwdrivers
Insulated drivers rated to IEC 60900 add a layer of protection when you’re working near line voltage. They don’t replace shutting off power, but they back up good habits.
Nut Drivers
A 1/4″ and 5/16″ nut driver pull the hex-head sheet-metal screws that hold furnace and air-handler panels, faster and with less slipping than a socket.
Measuring and Cutting Tools
Tape Measure and Level
A tape confirms clearances and duct runs, and a level keeps a condensing unit and its pad true so the compressor sits right and condensate drains the way it should. On a settling rural slab, a quick level check is worth the minute it takes.
Tin Snips and Utility Knife
Snips cut and shape sheet-metal duct and plenum, and a utility knife trims insulation and duct board. Retract or lock the blade every time – a slip on a knife is one of the most common injuries in the trade.
Tube Cutters
A tube cutter makes the clean, square, burr-free cut that copper needs for a leak-free braze or flare, whether it’s a refrigerant line or a water line. Hard water is tough on plumbing out here, so clean cuts and solid joints pay off over the long run.
Keeping Your Tools Safe and Dependable
Good tools last when you look after them. Wipe them down, keep them dry so Minnesota humidity and hard-water splash don’t start rust, and store them where you can grab the right one fast. Inspect before you rely on a tool: check wrench jaws for wear, handles for cracks, and cutting edges for dullness, and pull anything questionable out of service. A worn tool doesn’t just work slower – it’s how people get hurt.
Frequently Asked Questions
What is an HVAC service valve wrench?
It’s a ratcheting wrench with several square sockets built to turn the stems on an air conditioner or heat pump’s service valves. Technicians use it to open, close, and access the refrigerant side of the system during service.
Can a homeowner do this work with the same tools?
Basic hand tools such as screwdrivers, pliers, and an adjustable wrench are fine for changing a filter or tightening a panel. Anything involving refrigerant is different: federal EPA Section 608 rules require certification to handle it, so charging and recovery are jobs for a licensed technician, not a homeowner tool kit.
Which hand tools do HVAC techs reach for most?
Screwdrivers, nut drivers, and pliers come out on nearly every call, with wrenches and a service valve wrench close behind on any job that touches the mechanical or refrigerant side.
