Key Takeaways
- Today’s drain cameras have waterproof, high resolution video heads with bright LED illumination designed to capture sharp images inside the pipe, allowing plumbers to locate cracks and leaks, roots and debris. Opt for cameras with flexible cables or crawlers for lengthy or complicated runs.
- Get ready to inspect the camera and drain. Clear all access points and document site conditions prior to insertion!
- Advance the camera carefully. View live video locator and rod feedback, and mark depths and entry points so you can precisely locate and record issues.
- Capture time and location stamped video and stills. Maintain a paper or electronic journal and document findings in a concise report to assist with repair planning and follow-up inspections.
- Be on the lookout for typical pitfalls, such as mistaking normal features as defects, pushing the camera through, and cutting scans short. Use cross-checks and training to minimize them.
- Keep your equipment in top shape with daily cleaning, routine inspections, protective storage, and a maintenance log to extend its service life and ensure reliable future inspections.
How to use a drain camera for inspection describes how to locate blockages, leaks and pipe damage with a miniature video probe.
It includes tips on lighting and depth markings. It covers safety, cleanup and calling in a pro.
Hands-on examples allow readers to evaluate typical problems in household drains and determine next actions.
Camera Technology
Today’s sewer inspection cameras allow technicians to see inside pipes without excavation or demolition, eliminating guesswork and the trial-and-error of inspections. Integrated into these systems are waterproof video cameras, lighting, and cable or crawler platforms to produce live images from within pipes, from small household drains up to municipal lines.
Camera systems vary by size. Some are built for smaller pipes, about 1½ to 3 inches. Others are for mid-size runs, 3 to 6 inches. Specialty rigs exist for very small lines under 2 inches.
The Camera Head
The camera head itself contains the lens, LED lights, and protective casing. It is the heart of the system that has to weather the exposure to sewage, wastewater, and chemicals. A waterproof housing shields against water damage while still enabling crisp images.
Some heads feature self-leveling or pan-tilt-zoom mechanisms that maintain an upright view and allow operators to examine joints or side connections without repositioning the cable. Little strong heads weave through sharp elbows and joints in indoor pipework and dense commercial circuits.
A diminutive head minimizes the potential of snagging in trap bends and can navigate fixture outlets and branch lines. High-resolution optics in the head matter. They reveal hairline cracks, small leaks, and partial blockages that lower-resolution units miss.
Opt for a waterproof, chemically resistant head and clean between uses. Don’t sit on it, don’t drop it in a washing machine, and don’t bake it in an oven.
The Push Rod
The push rod is the flexible cable that transports the camera head into the pipe. Reach is a function of length and flexibility. Longer rods allow you to scope out-of-reach or deeply buried sewer lines, while more rigid rods give you the muscle to push through silt or loose blockages.
Different cable types exist: traditional push-rod or cable for long runs and spring-leader setups for tight, short runs and lateral entries. Choose a rod that is somewhere between rigid and bendable.
Too rigid will break at sharp turns, and too soft is difficult to push through a blockage. Tough materials and reinforced jackets last longer when used daily in a commercial environment. Zero out the distance counter prior to deployment so that footage and distance markers correspond with the actual pipe layout.
The Monitor
The monitor shows live photos and is the operator’s eye into the pipe. The high-resolution screens assist in identifying hard-to-spot defects like hairline fractures and minor leaks. Most have recording, Wi-Fi output for sharing footage, and built-in 512 Hz sondes for aboveground locating.
Portable monitors accelerate on-site diagnostics and allow teams to review footage with clients right away. Capturing video and then logging the distance traveled makes a valuable record to have for repairs or warranty claims.
Make inspections efficient and defensible with a monitor that has obvious controls and stable connectivity.
The Inspection Process
A defined, stepwise approach establishes the basis for a valuable drain camera inspection. Have a flow from site prep to equipment retrieval so results are repeatable and findings are reliable. Safety and documentation are key throughout.
1. Preparation
Collect the drain camera, monitor, locator, fresh batteries (plenty for eight or more hours), gloves, safety glasses, and cleaning supplies. Inspect whether the camera light turns on, the feed appears on the monitor, and records.
Prepare the job site by cleaning the work area of loose debris and providing safe access to the cleanout or drain opening. Keep tools close at hand but out of the flow path. Capture the original site with a few pictures or a video clip for after-work comparison.
It’s helpful to run a small stream of water down the pipe during inspection, as this settles sediment and allows the camera to transit the pipe more smoothly.

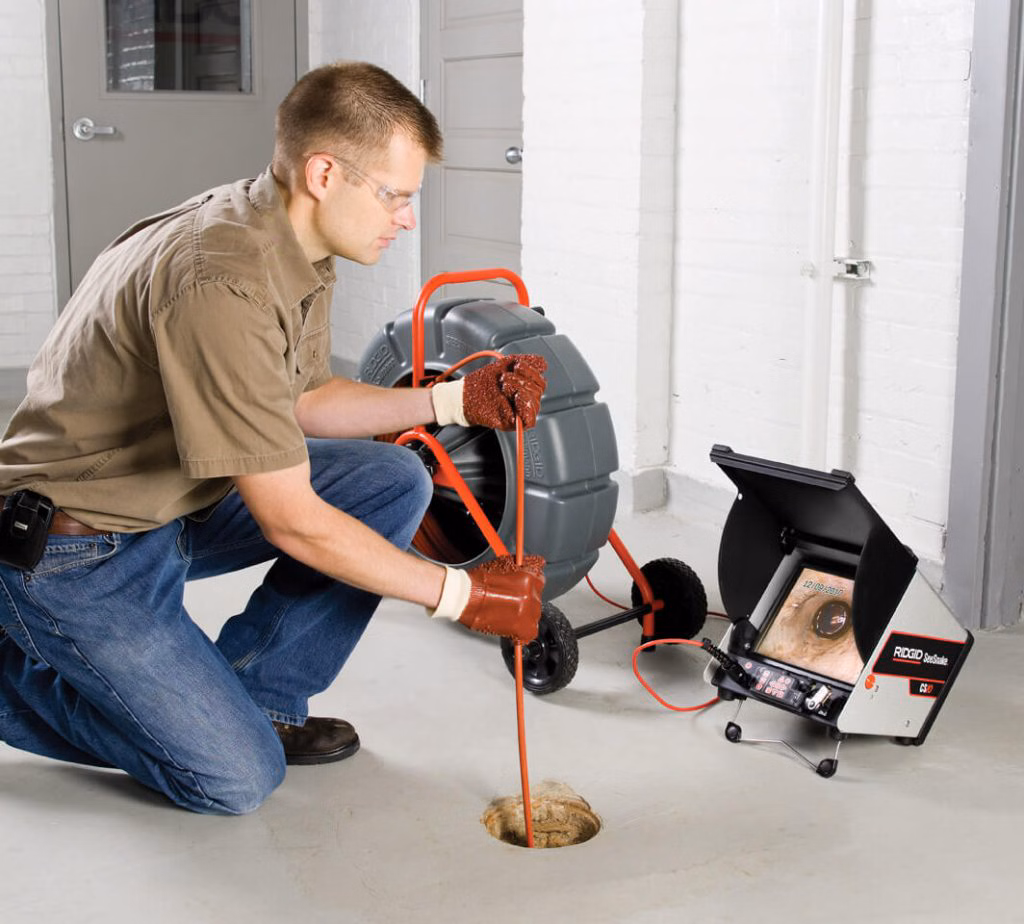

2. Insertion
Slide the camera head into the drain or pipe without pushing, as pressure might bend the head or damage delicate pipes. Employ a slow, steady shove so the head doesn’t catch on joints, broken sections or debris.
Follow the live feed carefully and stop if the view smudges or the rod encounters friction. Mark the entry point and approximate depth at intervals. These annotations assist in identifying problems later.
Water runs and aids in flushing the camera cable through and decreases friction if the camera cable needs to be guided.
3. Navigation
Guide the push rod with smooth, gentle strokes to get around curves and corners. Jerky motions can catch the head. Be vigilant of unexpected resistance or shifts in angle.
These typically indicate a blockage, root intrusion, or break. Use the locator device periodically to tag the camera’s trajectory and correlate trouble areas to ground coordinates.
Adjust lighting and focus as needed to keep images crisp, and let water run lightly through the pipe to enhance visibility and wash away loose silt.
4. Documentation
Record continuous video and capture stills of defects: cracks, leaks, offsets, root growth, or deformed sections. Tag files with timestamp, entry point, depth, and locator coordinates so every discovery associates with a precise location.
Maintain a notebook or electronic journal with notes, probable causes, and suggested action items. Gather the media and notes into a compact report for the homeowner or contractor with screen grabs and a batch map of fault locations for repair routing.
5. Retrieval
Pull the camera back slowly, observing the feed for overlooked signs on the way out. Flush the camera head and push rod upon removal to prevent buildup and bacteria growth.
Then check equipment for wear or damage. Save and exit all recorded data properly before shutdown. Store gear dry and charged so it’s ready for the next job.
Visual Interpretation
Visual interpretation reduces what the camera presents into actionable truths about pipe condition and adjacent substrate. Trained technicians separate findings into two categories: the condition of the pipe itself and signals coming from the soil or fill outside the pipe. This initial division aids in connecting trends observed on recordings to probable reasons, for instance, substrate settlement or localized joint failure.
Blockages
Blockages manifest themselves as standing water, visible debris accumulations, grease films or non-soluble objects impeding flow. Record how far from entrances and the pipe clock position the clog sits. This allows crews to select the proper tool and minimize guesswork.
Partial clogs typically manifest as diminished flow paths with air gaps. Complete clogs typically manifest as material or an impenetrable mass. Based on footage, determine mechanical cleaning, hydro-jetting, or targeted excavation.
Record type (hair/wipes/mineral scale), size and location in a report so maintenance crews can schedule equipment and time. Footage indicates if repeated blockages are originating from an internal source like a grease trap or an external source like root ingress.
Pipe Damage
Cracks, fractures, corrosion, and collapsed sections each have visual signatures: linear hairline cracks, open gaps at joints, pitted interiors from corrosion, or full collapses where pipe ribs fold. Note scratches depth and run length.
Extended fractures spanning several joints are indicative of substrate shift over single impact. Test before and after any repair to confirm seals hold and structural integrity is restored. Untreated damage can let soil into the line or allow significant inflows during rain events, increasing the danger of sewage backup and expensive repairs.
Knowing the pipe material directs interpretation, as clay, cast iron, and PVC exhibit different failure patterns.
Root Intrusion
Scout for fine root hairs or thick root masses infiltrating through joints or cracks. Roots tend to follow imperfect joints. Mark cleanout entries for rooter service or partial replacement with distance and clock face references.
Tackle roots fast because they quickly expand fissures and can cause blockages or collapse. In treed areas, inspect often as roots tend to resurface. Experienced specialists can frequently identify if roots infiltrated through a pre-existing fault or created a new rupture.
Pipe Condition
Material quality, dirtiness, and signs of aging throughout the run. Typical pipe conditions for comparison:
- Clear: smooth walls, no deposits.
- Scaled: mineral deposits, reduced diameter.
- Corroded: pitting, flaking metal.
- Joint failure: open gaps at seams.
- Settled: multiple low spots along run.
- Intrusion: roots or external material.
Evaluate areas for maintenance priority and mark accumulation areas requiring cleanup or sections requiring replacement. Regular inspections identify minor problems prior to backups or surface symptoms like gurgling toilets or mushy grass.
Common Pitfalls
Typical drain-camera inspection snags usually boil down to readiness, reading, and maintenance. The rundown below points out common pitfalls to beware of and actions to minimize danger and maximize outcomes.
- Skipping pre-inspection checks includes not charging batteries, not testing controls, or neglecting to lay out tools.
- Poor workspace prep includes cluttered access, inadequate lighting, or unsanitary conditions.
- Just trusting what the camera displays without using additional diagnostics.
- Powering the camera through narrow passages, acute turns, or dense blockage.
- Neglecting to clean and dry the camera after use, particularly when it has been submerged.
- Putting the camera in direct sun or storing it above 80 °C.
- Not checking the camera head and cable for wear prior to and after use.
- Missing a methodical sweep and pulling the camera back prematurely.
- Inadequate PPE means not using gloves, safety glasses, or barrier measures in contaminated sites.
- No peer review for questionable video. Single-operator closings have no back-up.
Misinterpretation
It’s easy to mistake normal pipe characteristics for flaws. Pipe joints, small mineral deposits, biofilm and light reflections can appear like cracks or roots on low-resolution video.
Cross-check your footage against pipe layout plans and previous inspections to contextualize your findings. Use distance markers or on-screen odometers to correlate images with schematic plans.
Training matters: structured practice and review of labeled image sets will improve accuracy. When the footage is ambiguous, consult a second or have a colleague review the clips. A brief hesitation for validation can save an unnecessary dig or patch!
Equipment Damage
If you try pushing the camera or rod into a blocked or sharply bent section, you risk cable kinks, head damage, or loss of the unit. Check the camera head and cable for small cracks, abrasions, or stiff spots before and after each use.
Common Pitfalls – Wash and dry your head, seals, and connectors after any contact with water. If left wet, your internal components corrode and the image quality plummets.
Shield the unit from heat or do not store it where temperatures exceed 80 °C, and protect it from direct sunlight, which can cause lens and adhesive failure. Use protective sleeves and follow manufacturer cleaning instructions. Frequent damage spikes replacement and repair costs for businesses and homeowners.
Incomplete Scans
Skipping sections or pulling the camera back too early results in overlooked defects. Follow a set path: note start and end points, mark progress on a map, and use the camera’s distance readout to confirm coverage.
Double check footage post-run, pausing and re-scanning suspicious looking areas. Detailed scans minimize the risk of overlooked fractures, deposits or penetrations and enhance diagnostic precision.
Half-measures inspections lead to trips back and additional cost.
Beyond The Visuals
Sophisticated inspection cameras can feature sensors and tools that extend beyond mere video. These can sense noises, thermal variation, and haptic feedback via the push rod. Before getting into the details, integrating these additional channels makes inspections more consistent and reduces the guesswork.
Taking care of your camera by cleaning it periodically, shielding it from moisture, and avoiding extreme heat, as many models can be damaged above 80°C or 176°F, keeps those features functioning and diminishes lifetime expenses.
Sound Analysis
Other cameras feature built-in microphones or sonar pulses to provide an acoustic dimension to imaging. Sound can detect slow leaks, the flow direction, or obstructions lurking beneath sediment. Hear constant dripping, a high-pitched hiss or gurgling that varies as you shake the camera.
Those sounds typically indicate live leaks or partial blockages. Correlate where the noise occurs with the video frame and record the camera depth or sonde reading. Sondes on a few units broadcast up to a depth of 10 to 15 feet, aiding in identifying the source.
Employ sound when the sludge or roots might block your view. Sounds tend to permeate where light does not. Take audio clips and associate them with footage for later playback to show engineers what we heard on location.
Temperature Clues
Thermal sensors sense temperature differences generated by hot water pipes, damaged insulation, or leaks. Scan at a reduced speed and capture temperature readouts simultaneously with your video. A cool spot on a wall or floor with typical surroundings indicates a potential leak path.
Hot streaks can indicate the path of a hot water line or where friction is causing heat at a seized element. Use thermal data to discover concealed problems behind walls or under slabs that video alone cannot penetrate.
Overlay thermal images and visual frames and record the readings so repair crews come prepared for hot water, steam danger, or cold infiltration.
Rod Feedback
Tactile signals via push rod provide live indication of pipe status. Sense for added resistance, scraping or sudden drops in tension. These typically indicate rough patches, bellies, scale or hard blockages.
Vibrations can denote loose fittings or fractured components.
| Feedback Type | Likely Cause | Action |
|---|---|---|
| Increased resistance | Scale, roots, obstruction | Stop, pull back, try different angle |
| Scraping vibration | Rough pipe wall or joints | Note location, mark for repair |
| Sudden give | Void or collapsed section | Mark for immediate follow‑up |
| Steady drag | Long bend or sediment build‑up | Clean or use auger after mapping |
Record significant feedback occurrences including depth, sonde position, and video timecode. That history directs repair decisions and aids in prioritizing maintenance.
Maintenance Practices
Regular cleaning and inspection of the camera and its components keeps the instrument prepared and prevents unexpected crashes. Examine the camera head, lens, and cable for cuts, dents, or loose fittings prior to each use. Check for clouding or scratches on the lens that will degrade image quality.
Test the light ring and camera rotation so you can catch control problems early. Run the camera for a moment in clean water or a test pipe to verify that the image is clear and that the steering is responsive before you get to a job.
Keep cameras, cables, and monitors in cases that protect from knocks and moisture. Hard cases and foam cutouts prevent impact and keep parts from touching. Take care to use desiccant packs inside your cases when you store equipment to absorb moisture from the air.
Protect gear from heat sources. Don’t subject cameras to temperatures over 80 °C (176°) as internal seals and electronics can fail. Never leave batteries or monitors in the sun or near a heater, as heat will shorten component life and can warp cable sheathing.
Heavy users should put maintenance checks on a calendar. Check cables for frays, kinks, or flattening that could get caught in bends. Inspect connector pins and seals for corrosion or debris and tighten threaded joints as necessary.
Check that the camera head’s waterproof rating hasn’t been compromised by pressure or leak tests suggested by the manufacturer. Change out worn rollers or guide components before they score the cable. If you have systems with motorized reels, apply lubricants to moving components using the type specified by the manufacturer.
Maintain a maintenance log noting dates, hours of use, faults discovered, repairs performed, and parts replaced. Record any firmware or software updates and which version was installed. A clean log assists in determining when to retire a camera or when recurring faults indicate a design problem.
Include simple checks after each job: image test, cable sweep, connector wipe, and case dry-out. Utilize the log to schedule parts orders so that you’re always stocked with spare camera heads, seals, and connectors.
Adhere to the provided maintenance and repair recommendations and implement suggested firmware or software updates to ensure compatibility and introduce enhancements. Firmware updates can address bugs, optimize image processing or battery management.
Good maintenance, like treating it well, cleaning your system regularly, and installing updates on time, saves you expensive repairs and lengthens its service life.
Conclusion
A drain camera puts pipe inspection in focus — clear, fast, and with less guesswork. It reveals blockages, cracks, roots, and buildup in real time. Choose a camera that has the appropriate cable length, excellent lighting, and a steerable head for tight turns. Run clean sweep, record hot spots and depth marks with the meter run. Use images, shape, texture, and shadow to read scale and cause. Be on the lookout for false reads from glare, debris, or bad seals. Keep gear clean, dry, and charged to prevent job-day meltdowns. Use the footage to schedule repairs, purchase the appropriate materials, and discuss with experts or customers armed with information. Take a quick test run in an easy pipe to build experience.
Frequently Asked Questions
What is a drain camera and why use one?
A drain camera is basically a waterproof flexible camera on a cable. It visualizes the interior of pipes to locate blockages, fissures, root intrusion, and obstructions. It saves time and keeps you from digging in the wrong places by pinpointing issues.
How do I prepare for a drain camera inspection?
Make space and take off drain covers. Run a trickle of water if necessary. Make sure access points are flung wide and safe. This accelerates inspection and captures clearer images for diagnosis.
Can a drain camera detect pipe material and age?
Yes. Good quality cameras show pipe fittings, rust, and material surfaces. A seasoned inspector can even make rough guesses about pipe type and wear, which assists in planning repairs or replacement.
What common issues will the camera reveal?
It detects clogs, grease, scale, roots, cracks, collapse, and offset joints. Understanding the problem in detail allows you to select specific repairs and prevent return visits.
How do I interpret what I see on the screen?
Look for discontinuities: cracks, collapsed areas, or foreign objects. Record location and direction from the cable length marker. When in doubt, call a professional for diagnosis.
Are there limitations to drain camera inspections?
Yes. In very small, heavily obstructed, or flooded pipes, cameras may struggle. Suspended debris can obscure defects. You may need multiple passes or complementary tests.
How should I maintain my drain camera equipment?
Wash and dry the cable and camera. Keep them in a cool, dry place. Inspect and replace aged cable jackets and seals. Routine care prolongs longevity and picture quality.
