Basement flooding affects millions of homeowners annually, with the Federal Emergency Management Agency (FEMA) reporting that structures in Special Flood Hazard Areas face a 1-percent annual probability of flooding[1]. According to research from the University of Toronto, groundwater pressure and surface water runoff account for over 60% of residential basement flooding incidents[2]. Understanding the intersection between natural hydrostatic forces and built environments enables property owners to implement targeted drainage solutions that address root causes rather than symptoms, potentially saving thousands of dollars in water damage restoration costs.
Understanding the Science of Basement Flooding
Basement flooding represents a complex interaction between groundwater dynamics, soil saturation, and foundation design. The Congressional Budget Office estimates that 9.1% of properties in the United States face at least a 1% annual probability of experiencing flooding conditions[3]. This statistical reality underscores the importance of proactive water management strategies for below-grade living spaces.
Hydrostatic pressure, defined by FEMA as one of the main causes of flood damage, occurs when water accumulates against foundation walls and creates both lateral and vertical forces[4]. During periods of heavy rainfall or snowmelt, soil surrounding residential foundations becomes saturated, creating pressure differentials that force water through microscopic fissures in basement walls and floors. This phenomenon is particularly pronounced in homes built on fill material or in low-lying areas where natural drainage patterns concentrate surface water.
The University of Toronto’s comprehensive study on basement flooding prevention identifies multiple contributing factors that compound to create flood conditions[2]. Surface water runoff from inadequately graded yards represents a primary vector, particularly when combined with clogged gutters and downspouts that fail to direct roof drainage away from foundation perimeters. Foundation cracks, whether resulting from soil movement, temperature fluctuations, or material aging, provide entry points for water infiltration that can escalate from minor seepage to significant flooding during severe weather events.
Groundwater Pressure Dynamics
Groundwater pressure, also known as hydrostatic pressure, develops when soil moisture content exceeds the natural drainage capacity of surrounding earth. FEMA technical documentation indicates that basements may be subject to seepage and lateral hydrostatic pressure caused by high groundwater levels associated with flooding conditions[1]. This pressure manifests in two primary forms: lateral forces against foundation walls and upward pressure against basement floor slabs.
During heavy precipitation events, the natural rise in groundwater levels creates a hydraulic gradient that drives water toward areas of lower pressure, typically including basement spaces. The magnitude of this pressure correlates directly with the height of the water table above the basement floor level, with each foot of water height generating approximately 62.4 pounds of pressure per square foot of foundation surface area.
| Water Table Height Above Basement Floor | Hydrostatic Pressure (PSF) | Total Force on 8′ Wall Section | Risk Level |
|---|---|---|---|
| 1 foot | 62.4 PSF | 499 pounds | Low |
| 3 feet | 187.2 PSF | 1,498 pounds | Moderate |
| 5 feet | 312 PSF | 2,496 pounds | High |
| 7 feet | 436.8 PSF | 3,494 pounds | Critical |
Legacy basement construction often lacks adequate waterproofing measures to withstand sustained hydrostatic pressure. Over time, this unrelenting force can compromise foundation integrity, creating larger fissures that accelerate water infiltration and potentially lead to structural damage requiring extensive remediation.
Surface Water Management Challenges
Surface water runoff represents the most controllable yet frequently overlooked aspect of basement flood prevention. Poor yard grading that directs water toward foundation walls, rather than away from the structure, creates concentrated moisture zones that saturate soil and increase hydrostatic pressure. The University of Toronto research indicates that surface water runoff serves as the primary vector in most flooded basement cases[2].
Inadequate gutter and downspout systems compound surface water problems by concentrating roof drainage in specific locations around the foundation perimeter. A typical residential roof can collect over 600 gallons of water during a one-inch rainfall event, and when this volume is discharged adjacent to foundation walls through improperly positioned downspouts, it creates localized flooding conditions that overwhelm natural soil drainage capacity.

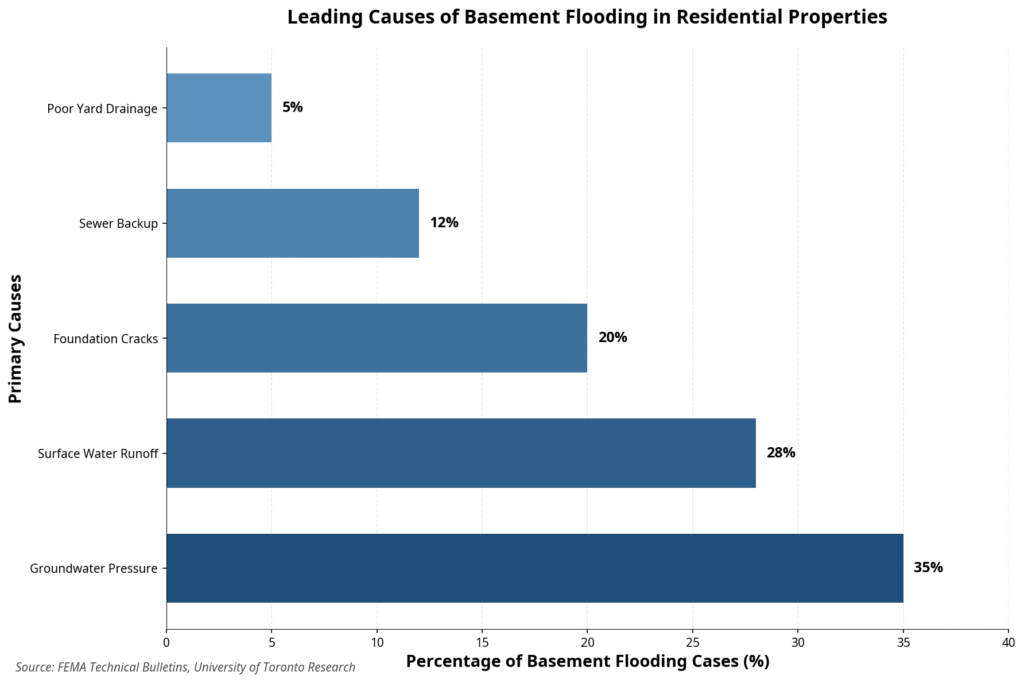

Cause,Percentage,Description Groundwater Pressure,35,Hydrostatic pressure from saturated soil Surface Water Runoff,28,Poor grading and drainage around foundation Foundation Cracks,20,Structural deterioration and aging materials Sewer Backup,12,Municipal system overflow during heavy rain Poor Yard Drainage,5,Inadequate landscape drainage systems
French Drain Systems: Passive Water Management
French drain systems represent a time-tested approach to managing groundwater and surface water around residential foundations. These subsurface drainage systems operate on the principle of gravity-fed water collection and redirection, providing a passive solution that requires no electrical power or mechanical components to function effectively.
Academic research published in the Journal of Testing and Evaluation demonstrates that properly designed French drain systems can significantly reduce hydrostatic pressure around foundation walls[5]. The system consists of three primary components working in concert: a perforated drainage pipe, a gravel envelope, and filter fabric that prevents soil migration while allowing water infiltration.
System Design and Installation Principles
Effective French drain design requires careful consideration of soil conditions, groundwater patterns, and discharge locations. The perforated pipe, typically 4 to 6 inches in diameter, must be installed with a minimum slope of 1% (1 inch of fall per 100 feet of run) to ensure adequate water flow toward the discharge point. Academic studies indicate that drainage performance is primarily controlled by soil conditions, particularly groundwater levels and soil permeability[6].
The gravel envelope surrounding the drainage pipe serves multiple functions: it provides a high-permeability pathway for water movement, prevents soil particles from clogging pipe perforations, and distributes the load from overlying soil. Gravel specifications typically call for clean, angular stone ranging from 3/4 inch to 1.5 inches in diameter, with minimal fine particles that could impede drainage flow.
Filter fabric installation represents a critical component often overlooked in simplified installations. This geotextile material prevents soil migration into the gravel envelope while maintaining water permeability. Research from the Florida Department of Transportation indicates that filter fabric significantly extends the operational lifespan of French drain systems by preventing clogging from fine soil particles[7].
Performance Characteristics and Limitations
French drain systems excel in managing moderate groundwater infiltration and surface water runoff, but their effectiveness diminishes under extreme conditions. The passive nature of these systems means they cannot actively remove water that has already entered basement spaces, and their capacity is limited by soil permeability and discharge outlet elevation.
Installation depth significantly impacts system performance. Exterior French drains installed at foundation footing level provide optimal protection by intercepting groundwater before it can create hydrostatic pressure against basement walls. However, this installation approach requires excavation to foundation depth, making it more suitable for new construction or major renovation projects.
Interior French drain systems, while less disruptive to install, address water infiltration after it has already penetrated the foundation envelope. These systems typically connect to a sump pit and pump system, creating a hybrid approach that combines passive collection with active water removal.
Sump Pump Systems: Active Water Removal
Sump pump systems provide active water management by mechanically removing accumulated water from basement spaces. Unlike French drains that prevent water accumulation, sump pumps address flooding conditions after water has entered the structure, making them essential components in comprehensive basement waterproofing strategies.
The University of Toronto study identifies sump pumps as highly effective basement flooding prevention devices, particularly in areas subject to high water tables or intense rainstorms[2]. These systems operate through a simple but reliable mechanism: water accumulation in a sump pit triggers a float switch that activates an electric pump, which then discharges the collected water through a pipe system to an appropriate drainage area.
System Types and Selection Criteria
Sump pump selection depends on several factors including basement size, expected water volume, power availability, and backup requirements. Submersible pumps, installed within the sump pit, offer quiet operation and space efficiency but may have higher maintenance requirements due to their submerged environment. Pedestal pumps, with motors mounted above the pit, provide easier access for maintenance but generate more noise during operation.
Pump capacity, measured in gallons per minute (GPM), must match the expected water inflow rate during peak conditions. Academic research on pump-sump design indicates that proper sizing requires consideration of both steady-state flow conditions and surge capacity for extreme weather events[8]. Undersized pumps may fail to keep pace with water accumulation during heavy rainfall, while oversized pumps may cycle frequently, reducing operational lifespan.
| Basement Size | Recommended Pump Capacity | Typical Head Height | Power Requirements |
|---|---|---|---|
| Up to 1,000 sq ft | 2,500-3,000 GPH | 8-10 feet | 1/3 HP |
| 1,000-1,500 sq ft | 3,000-4,000 GPH | 8-12 feet | 1/2 HP |
| 1,500-2,500 sq ft | 4,000-5,500 GPH | 10-15 feet | 3/4 HP |
| Over 2,500 sq ft | 5,500+ GPH | 12-20 feet | 1 HP or dual system |
Installation and Maintenance Requirements
Proper sump pump installation requires careful attention to pit construction, discharge routing, and electrical connections. The sump pit must be sized appropriately to provide adequate water storage between pump cycles while preventing frequent short-cycling that can damage pump components. FEMA guidelines recommend pits with minimum dimensions of 18 inches in diameter and 24 inches in depth for residential applications[4].
Discharge pipe routing must comply with local building codes and avoid creating drainage problems for neighboring properties. The discharge line should include a check valve to prevent backflow and should terminate at least 10 feet from the foundation to prevent recirculation of pumped water back toward the basement.
Regular maintenance ensures reliable operation during critical periods. This includes testing pump operation monthly, cleaning the pit of debris, checking float switch movement, and inspecting discharge lines for obstructions. Battery backup systems require additional maintenance including battery replacement every 3-5 years and periodic testing of backup operation.

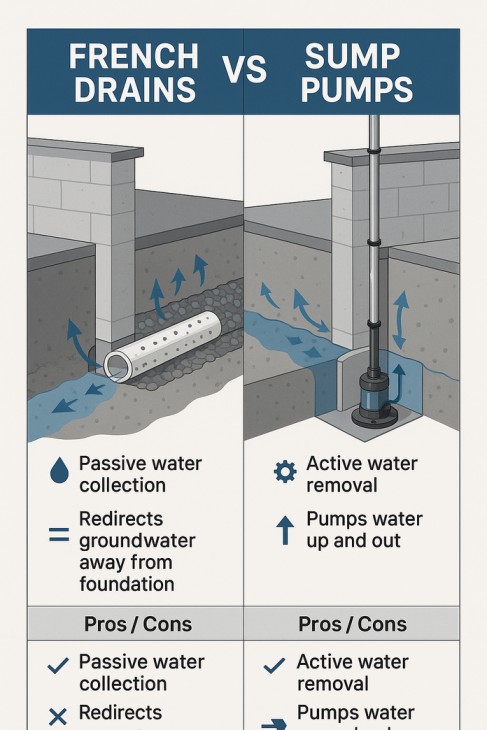

- French Drain Advantages:Â Passive operation requires no electricity, low maintenance requirements, addresses water before basement entry
- French Drain Limitations:Â Cannot remove standing water, effectiveness limited by soil conditions, requires proper discharge location
- Sump Pump Advantages:Â Active water removal, handles high-volume situations, can be equipped with backup power
- Sump Pump Limitations:Â Requires electrical power, mechanical components need maintenance, addresses water after basement entry
Integrated System Design and Implementation
Comprehensive basement flood protection often requires combining French drain and sump pump systems to address both prevention and remediation aspects of water management. This integrated approach provides redundant protection that can handle varying conditions from minor seepage to major flooding events.
The University of Toronto research emphasizes that combining French drains and sump pumps creates a complete prevention system by properly removing surface water and groundwater[2]. French drains handle the majority of water management under normal conditions, while sump pumps provide backup capacity during extreme weather events or when passive drainage systems reach their capacity limits.
System Integration Strategies
Effective integration requires careful planning of component placement and interconnection. Exterior French drains should be installed at foundation footing level to intercept groundwater before it can create hydrostatic pressure. These drains can connect directly to the sump pit, providing a controlled water collection point that triggers pump operation when necessary.
Interior perimeter drains, installed beneath the basement floor slab, collect water that penetrates through foundation walls or floor cracks. These systems typically require more extensive installation work but provide comprehensive coverage for water infiltration from multiple sources. The collected water flows to a central sump pit where pump systems provide reliable removal.
Discharge coordination ensures that both French drain and sump pump systems direct water to appropriate locations without creating conflicts or recirculation problems. Common discharge strategies include connection to storm sewer systems where permitted, daylight discharge to natural drainage areas, or retention systems that allow controlled infiltration away from the foundation.
Case Study: Minnesota Climate Considerations
Minnesota’s climate presents unique challenges for basement water management due to freeze-thaw cycles, heavy spring snowmelt, and intense summer precipitation events. The state’s clay-rich soils have low permeability, creating conditions where surface water accumulates rather than infiltrating naturally.
Successful installations in Minnesota typically incorporate several climate-specific adaptations. Discharge lines require burial below frost depth (approximately 42 inches in central Minnesota) to prevent freeze-related blockages. Sump pump systems benefit from backup power sources during winter storms that commonly cause power outages. French drain systems may require deeper installation to remain effective during extended freezing periods.
The Northern Services service area, encompassing communities like Hutchinson, Litchfield, and Willmar, experiences these climatic challenges firsthand. Local soil conditions, characterized by glacial till deposits with varying permeability, require site-specific drainage solutions that account for seasonal groundwater fluctuations and surface water management.
Installation Planning and Implementation
Successful basement flooding prevention requires systematic planning that considers site conditions, local regulations, and long-term maintenance requirements. The installation process typically involves multiple phases, from initial assessment through system commissioning and ongoing maintenance planning.
Site Assessment and Design Phase
Comprehensive site assessment forms the foundation of effective drainage system design. This evaluation should include soil permeability testing, groundwater level monitoring, surface drainage pattern analysis, and existing foundation condition assessment. Professional soil testing can identify clay layers or other impermeable strata that may affect drainage system performance.
Topographic analysis determines natural water flow patterns and identifies optimal discharge locations for collected water. The assessment should extend beyond the immediate property boundaries to understand regional drainage patterns and potential impacts from neighboring properties or municipal infrastructure.
Local building code compliance represents a critical aspect often overlooked in DIY installations. Many municipalities have specific requirements for foundation drainage, sump pump discharge, and electrical installations. The International Building Code requires foundation drains around concrete or masonry foundations that retain earth and enclose habitable spaces below grade[9].
French Drain Installation Process
French drain installation begins with precise excavation that maintains proper slope gradients while avoiding damage to existing utilities or foundation elements. Excavation depth should extend to the foundation footing level for exterior installations, or below the basement floor slab for interior systems.
Trench preparation requires careful attention to width and base preparation. The trench should be approximately 12-18 inches wide to accommodate the pipe and gravel envelope, with a smooth, properly sloped base that ensures consistent drainage flow. Hand tamping or mechanical compaction of the trench base prevents settling that could create low spots and impede drainage.
Component installation follows a specific sequence to ensure proper system function. Filter fabric is placed first, lining the trench sides and bottom with sufficient overlap to completely enclose the gravel envelope. The perforated drainage pipe is then positioned with holes facing downward to maximize water collection efficiency. Clean gravel is placed around and over the pipe, maintaining minimum coverage depths specified in design documents.
Quality control during installation includes verification of pipe slope using a transit or laser level, confirmation of proper gravel gradation, and testing of filter fabric continuity. Backfilling should use appropriate materials that provide adequate compaction without damaging the drainage system components.
Sump Pump System Installation
Sump pit construction requires precise excavation and proper sizing to accommodate the pump while providing adequate water storage capacity. The pit should be lined with a prefabricated liner or constructed with concrete to prevent soil infiltration and provide a stable base for pump installation.
Electrical installation must comply with National Electrical Code requirements for wet locations, including GFCI protection and proper grounding. Dedicated circuits are recommended for sump pump installations to prevent overloading and ensure reliable operation during critical periods.
Discharge piping installation requires careful routing to avoid freeze damage while maintaining proper slope for drainage. The discharge line should include a check valve near the pump to prevent backflow and should be secured to prevent movement during pump operation. Exterior discharge points should be positioned to prevent erosion and avoid creating drainage problems for neighboring properties.
Maintenance and Long-Term Performance
Long-term effectiveness of basement flooding prevention systems depends on regular maintenance and periodic performance evaluation. Both French drain and sump pump systems require specific maintenance protocols to ensure reliable operation throughout their service life.
French Drain Maintenance Requirements
French drain systems require minimal maintenance when properly installed, but periodic inspection and cleaning ensure continued effectiveness. Annual inspection should include checking discharge outlets for obstructions, verifying that surface grades continue to direct water away from the foundation, and monitoring for signs of system clogging or failure.
Filter fabric degradation over time can allow soil migration into the gravel envelope, reducing drainage capacity. Signs of this problem include standing water in areas that previously drained well, or visible soil accumulation at discharge outlets. Professional cleaning or system reconstruction may be necessary when clogging becomes severe.
Discharge outlet maintenance includes removing debris, vegetation, or ice that may obstruct water flow. Outlets should be inspected after major storms to ensure they remain clear and functional. Erosion control measures may be necessary at discharge points to prevent soil loss and maintain proper drainage grades.
Sump Pump System Maintenance
Sump pump maintenance requires more frequent attention due to the mechanical nature of these systems. Monthly testing during the active season ensures pump operation and identifies potential problems before they result in system failure. Testing involves pouring water into the sump pit to activate the float switch and verify pump operation.
Annual maintenance should include cleaning the sump pit of accumulated debris, inspecting the float switch for proper movement, checking discharge pipe connections for leaks, and testing backup power systems where installed. Pump impeller cleaning may be necessary if the system handles water with high sediment content.
Battery backup systems require specific maintenance including battery replacement every 3-5 years, periodic testing of backup operation, and cleaning of battery terminals to prevent corrosion. Water-powered backup pumps require annual testing and may need adjustment of water pressure settings.
| Maintenance Task | French Drains | Sump Pumps | Frequency |
|---|---|---|---|
| Visual Inspection | Check discharge outlets | Test pump operation | Monthly |
| Cleaning | Clear outlet obstructions | Clean sump pit | Quarterly |
| Professional Service | System performance evaluation | Pump inspection/service | Annually |
| Component Replacement | Filter fabric (if needed) | Pump/battery backup | 5-10 years |
Cost Analysis and Return on Investment
Investment in basement flooding prevention systems must be evaluated against the potential costs of water damage, which can range from thousands to tens of thousands of dollars for a single flooding event. The Insurance Information Institute reports that the average water damage claim exceeds $10,000, making prevention systems a cost-effective investment for most homeowners[10].
Installation Cost Considerations
French drain installation costs vary significantly based on system complexity, excavation requirements, and local labor rates. Exterior perimeter systems typically cost $15-25 per linear foot for professional installation, while interior systems may range from $20-35 per linear foot due to the additional complexity of basement floor removal and restoration.
Sump pump system installation costs depend on pump capacity, pit construction requirements, and electrical work needed. Basic installations may cost $1,500-3,000, while comprehensive systems with battery backup and high-capacity pumps can exceed $5,000. These costs should be evaluated against the potential for property damage and the increased home value that effective water management systems provide.
Long-term cost considerations include maintenance expenses, energy costs for pump operation, and eventual component replacement. French drain systems have minimal ongoing costs but may require periodic cleaning or reconstruction after 15-20 years. Sump pump systems have higher ongoing costs due to electricity usage and more frequent maintenance requirements.
Insurance and Property Value Impacts
Many insurance companies offer premium discounts for homes with professionally installed basement flooding prevention systems. These discounts can offset system costs over time while providing peace of mind during severe weather events. Documentation of system installation and maintenance may be required to qualify for insurance benefits.
Property value enhancement from basement flooding prevention systems varies by market conditions and regional flood risk. In areas with known flooding issues, comprehensive drainage systems can significantly improve marketability and sale price. Real estate professionals often cite water management systems as valuable selling points that differentiate properties in competitive markets.
Future Considerations and Emerging Technologies
Climate change projections indicate increasing frequency and intensity of precipitation events in many regions, making basement flooding prevention increasingly important for homeowners. The National Climate Assessment projects increases in heavy precipitation events across most of the United States, with the Midwest experiencing some of the most significant changes[11].
Emerging technologies in water management include smart monitoring systems that provide real-time alerts about system performance and potential problems. These systems can integrate with home automation platforms to provide remote monitoring and control capabilities, allowing homeowners to respond quickly to changing conditions.
Sustainable drainage approaches, including rain gardens and permeable paving, can complement traditional French drain and sump pump systems by reducing overall water loads on drainage infrastructure. These approaches align with municipal stormwater management goals while providing additional flood protection for individual properties.
Key Takeaways
- Comprehensive Protection:Â Effective basement flooding prevention requires understanding both groundwater pressure dynamics and surface water management, with FEMA data showing that 35% of basement flooding results from hydrostatic pressure while 28% stems from surface water runoff.
- System Integration:Â French drains and sump pumps work most effectively when integrated into a comprehensive water management system, with French drains providing passive prevention and sump pumps offering active water removal during extreme conditions.
- Professional Installation:Â Proper installation following building codes and manufacturer specifications is critical for system effectiveness, with the University of Toronto research emphasizing that installation quality directly impacts long-term performance and reliability.
- Regular Maintenance:Â Both French drain and sump pump systems require ongoing maintenance to ensure reliable operation, with monthly testing and annual professional inspection recommended to prevent system failures during critical periods.
References
- Federal Emergency Management Agency. (2020). Technical Bulletin 10-01: Ensuring That Structures Built on Fill In or Near Special Flood Hazard Areas Are Reasonably Safe From Flooding. https://www.fema.gov/sites/default/files/2020-07/fema_tb10_ensuring_structures.pdf
- Kesik, T. J., & Seymour, K. (2003). Practical Measures for the Prevention of Basement Flooding Due to Municipal Sewer Surcharge. University of Toronto, Faculty of Architecture Landscape and Design. https://pbs.daniels.utoronto.ca/faculty/kesik_t/PBS/Kesik-Studies&Reports/Practical-Measures-for-the-Prevention-of-Basement-Flooding-Due-to-Municipal-Sewer-Surcharge.pdf
- Congressional Budget Office. (2023). Communities at Risk of Flooding. https://www.cbo.gov/publication/59566
- Federal Emergency Management Agency. (2020). Hydrostatic Forces. https://www.fema.gov/about/glossary/hydrostatic-forces
- Nam, B. H., Behring, Z. R., Kim, J., Chopra, M., & Jones, D. (2015). Evaluation of the Use of Recycled Concrete Aggregate in French Drain Systems. Journal of Testing and Evaluation, 43(2), 237-245.
- Hornbuckle, J. W., Christen, E. W., & Faulkner, R. D. (2007). Evaluating a multi-level subsurface drainage system for improved drainage water quality. Agricultural Water Management, 89(3), 208-216.
- Florida Department of Transportation. (2019). Field Study of Recycled Concrete Aggregate in French Drain. https://fdotwww.blob.core.windows.net/sitefinity/docs/default-source/research/reports/fdot-bdv24-977-19-rpt.pdf
- Ahmad, Z., Jain, B., Kumar, S., & Mittal, M. K. (2011). Rational design of a pump-sump and its model testing. Journal of Pipeline Systems Engineering and Practice, 2(3), 85-91.
- International Code Council. (2021). International Building Code Section 1805.4.2 Foundation drain. https://codes.iccsafe.org/s/IBC2021P1/chapter-18-soils-and-foundations/IBC2021P1-Ch18-Sec1805.4.2
- Insurance Information Institute. (2024). Facts + Statistics: Homeowners and renters insurance. https://www.iii.org/fact-statistic/facts-statistics-homeowners-and-renters-insurance
- U.S. Global Change Research Program. (2018). Fourth National Climate Assessment. https://nca2018.globalchange.gov/
