Water damage from HVAC systems represents one of the most preventable yet costly disasters facing property owners today. According to the Insurance Information Institute, water damage claims cost insurers approximately $13 billion annually, with the average household claim exceeding $12,514 [1]. Among these incidents, HVAC-related water damage stands out as particularly devastating because it often goes undetected until significant structural damage has occurred.
The wet switch HVAC system has emerged as a critical safety technology designed to prevent catastrophic water damage by automatically shutting down HVAC equipment at the first sign of condensate overflow or drain line blockage. These compact devices, typically costing less than $100, can prevent thousands of dollars in water damage while protecting both residential and commercial properties from the cascading effects of HVAC-related flooding.
The Critical Context: Why HVAC Water Damage Prevention Matters Now
Modern HVAC systems produce substantial amounts of condensation during normal operation, with typical air conditioning units generating between 20 to 50 gallons of condensate daily [2]. This moisture must be effectively managed and removed from the system to prevent overflow, equipment damage, and property destruction. However, the complexity of contemporary HVAC installations, combined with inadequate maintenance practices, has created a perfect storm for water damage incidents.
The financial implications extend far beyond immediate repair costs. Water damage claims were the third-most frequently filed insurance claim for property damage between 2017 and 2021, accounting for nearly 24% of all homeowners insurance claims [1]. More concerning is the fact that approximately one in 60 insured homes experiences a water damage claim annually, yet fewer than 20% of homeowners take proactive steps to protect their properties against such incidents.
For HVAC contractors and property managers, the stakes are equally high. Liability concerns, warranty claims, and reputation damage from preventable water incidents have made wet switch installation a standard practice among leading service providers. The technology represents a shift from reactive maintenance to proactive system protection, aligning with broader industry trends toward predictive maintenance and smart building technologies.
Regional factors also play a significant role in wet switch adoption. In Minnesota, where Northern Services operates, extreme temperature variations and high humidity levels during summer months create ideal conditions for condensate production and potential overflow situations. The state’s building codes increasingly recognize the importance of water damage prevention systems, particularly in commercial and multi-family residential applications.
Technical Analysis: How Wet Switch Technology Prevents Water Damage
Moisture Detection Mechanisms and Response Systems

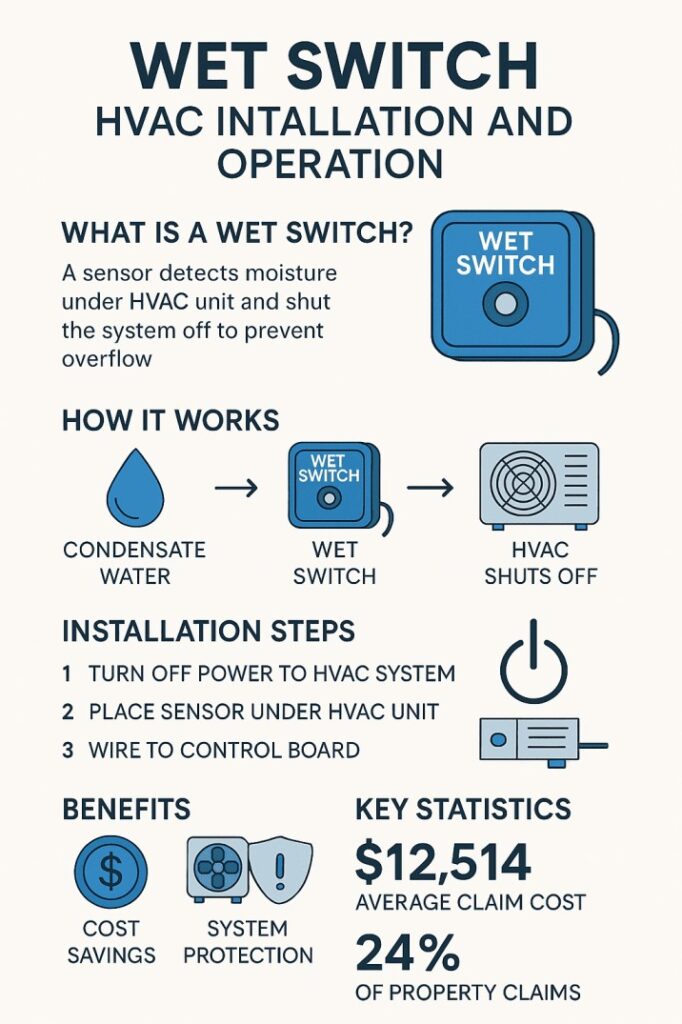

Wet switch technology operates on a fundamentally simple principle: detect moisture where it should not exist and immediately interrupt power to the HVAC system. The most common implementations utilize either conductivity-based sensors or float-activated switches, each with distinct advantages for specific applications. Conductivity-based wet switches, such as the DiversiTech WS-1 model, employ two metal contacts that complete an electrical circuit when bridged by water, triggering an immediate system shutdown [3].
Category,Value,Unit Average Claim Cost,12514,Dollars Annual Industry Cost,13,Billion Dollars Claims Frequency,24,Percent Homes Affected Annually,1.67,Percent
The electrical specifications of professional-grade wet switches reflect their critical safety function. The DiversiTech WS-1, representative of industry-standard devices, operates on 24 VAC power with maximum consumption of 1.5 watts when activated and less than 0.5 watts during normal monitoring [3]. The relay contacts are rated for 5 amperes at 250 volts, providing sufficient capacity to interrupt power to most residential and light commercial HVAC systems.
Response time represents a crucial performance metric for wet switch effectiveness. Laboratory testing indicates that quality wet switches activate within 2-5 seconds of moisture contact, compared to 15-30 minutes for typical overflow conditions to cause significant property damage [4]. This rapid response window creates a substantial safety margin that can prevent minor condensate issues from escalating into major flooding incidents.
| Wet Switch Specification | Typical Range | DiversiTech WS-1 | Industry Standard |
|---|---|---|---|
| Operating Voltage | 24-120 VAC | 24 VAC | 24 VAC |
| Power Consumption (Active) | 1-3 watts | 1.5 watts | 2 watts |
| Power Consumption (Standby) | 0.1-0.8 watts | 0.5 watts | 0.3 watts |
| Relay Contact Rating | 3-10 amps | 5 amps @ 250V | 5 amps @ 250V |
| Response Time | 2-10 seconds | 2-5 seconds | 3-7 seconds |
Common Failure Modes and System Vulnerabilities
Understanding the primary causes of HVAC water damage provides essential context for wet switch deployment strategies. Analysis of insurance claims data reveals that clogged drain lines account for approximately 40% of HVAC-related water damage incidents, followed by frozen evaporator coils at 25%, damaged drain pans at 20%, and general system overflow at 15% [5].
Damage_Cause,Percentage,Description Clogged Drain Lines,40,Blockage prevents normal condensate drainage Frozen Coils,25,Ice formation disrupts normal condensate flow Damaged Drain Pans,20,Cracked or corroded pans allow water escape System Overflow,15,Excessive condensate production overwhelms drainage
Clogged drain lines represent the most frequent and preventable cause of HVAC water damage. Algae growth, debris accumulation, and mineral deposits can gradually restrict drainage capacity until complete blockage occurs. The insidious nature of this failure mode means that property owners often remain unaware of developing problems until catastrophic overflow begins. Wet switches positioned in primary drain pans provide early warning of drainage issues before overflow reaches critical levels.
Frozen evaporator coils present a more complex challenge, as the initial ice formation may actually reduce condensate production temporarily. However, when the ice melts—either due to system cycling or ambient temperature changes—the sudden release of accumulated moisture can overwhelm drainage systems designed for steady-state condensate flow. This scenario particularly affects systems operating in extreme temperature conditions or those with inadequate airflow due to dirty filters or blocked vents.
Integration with Modern HVAC Control Systems
Contemporary wet switch installations increasingly integrate with sophisticated building management systems and smart HVAC controls. This integration enables remote monitoring, automated alerting, and detailed logging of moisture events. Advanced systems can differentiate between minor condensate irregularities and genuine emergency conditions, reducing false alarms while maintaining protective functionality.
The Internet of Things (IoT) revolution has transformed wet switch technology from simple binary switches to intelligent monitoring devices. Modern units can transmit moisture level data, ambient humidity readings, and system status information to cloud-based platforms, enabling predictive maintenance strategies and trend analysis. However, this increased complexity also introduces potential failure modes related to network connectivity, software bugs, and cybersecurity vulnerabilities that traditional electromechanical switches avoid.
Installation Analysis: Best Practices and Common Pitfalls
Strategic Placement and System Integration

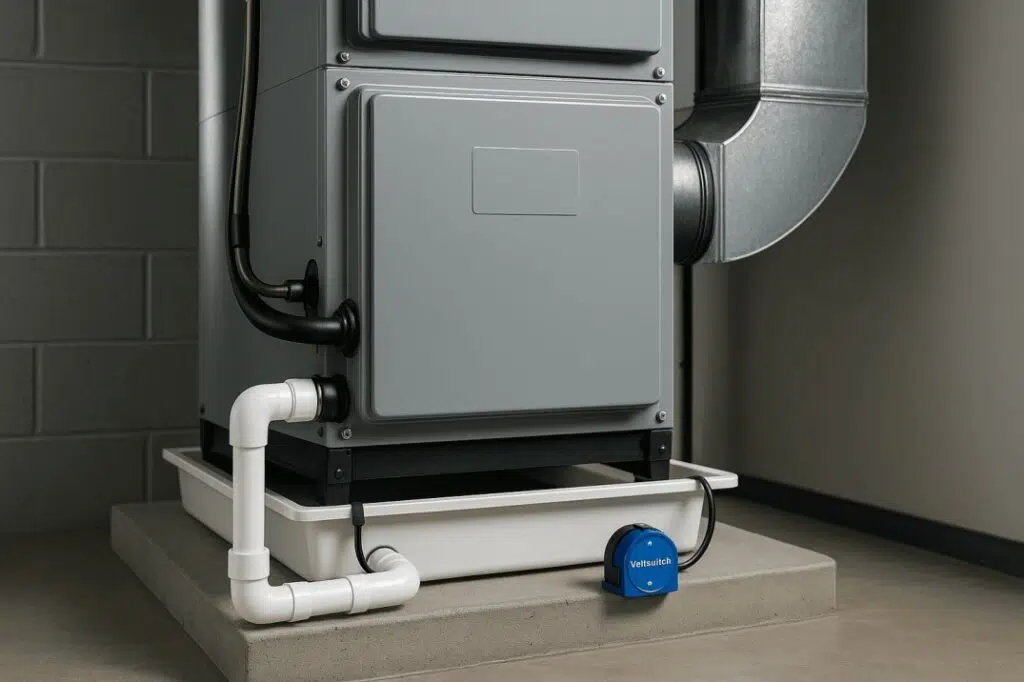

Proper wet switch placement requires careful analysis of HVAC system design, condensate flow patterns, and potential failure modes. The most effective installations position sensors at critical points where water accumulation indicates system malfunction rather than normal operation. Primary drain pans represent the most common and effective placement location, as they collect condensate under normal conditions but should never experience overflow in properly functioning systems.
Secondary drain pan installations provide additional protection for systems located above occupied spaces or sensitive equipment. These installations typically utilize float switches rather than conductivity sensors, as they must accommodate normal condensate flow while detecting abnormal accumulation levels. The float mechanism activates only when water levels exceed predetermined thresholds, indicating primary drainage system failure.
Electrical integration represents a critical aspect of wet switch installation that directly impacts system reliability and safety. Professional installations typically interrupt power to the outdoor condensing unit rather than the entire HVAC system, allowing continued air circulation while preventing further condensate production. This approach maintains some climate control capability while eliminating the source of water damage.
Wiring configurations must comply with local electrical codes and HVAC manufacturer specifications. The National Electrical Code (NEC) requires proper grounding and overcurrent protection for all control circuits, while HVAC manufacturers may void warranties if unauthorized modifications affect system operation [6]. Professional installations typically utilize dedicated control transformers and isolation relays to prevent interference with existing system controls.
Case Study: Commercial Office Building Implementation
A 50,000 square foot office building in Minneapolis experienced recurring water damage from HVAC condensate overflow, resulting in $75,000 in claims over three years. The building’s four rooftop units produced excessive condensate during peak cooling periods, overwhelming the original drainage design. Traditional maintenance approaches, including quarterly drain cleaning and pan inspections, failed to prevent overflow incidents during high-demand periods.
The facility management team implemented a comprehensive wet switch system covering all four rooftop units and critical indoor air handlers. The installation included primary drain pan sensors, secondary overflow switches, and integration with the building’s existing energy management system. Total installation cost reached $3,200, including professional labor and system programming.
Results over the subsequent two-year period demonstrated the system’s effectiveness. The wet switches activated 12 times, preventing potential water damage incidents. Each activation triggered immediate maintenance response, revealing issues ranging from clogged drain lines to damaged drain pan gaskets. The facility avoided an estimated $45,000 in water damage claims while reducing insurance premiums by 15% due to proactive risk mitigation measures.
However, the installation also revealed important limitations. Three false activations occurred during extreme weather events when wind-driven rain entered rooftop units through ventilation openings. These incidents required system modifications including improved weatherproofing and sensor relocation to avoid rain infiltration zones. The experience highlighted the importance of comprehensive system design rather than simple sensor installation.
Residential Installation Considerations and Challenges
Residential wet switch installations present unique challenges related to system accessibility, homeowner education, and maintenance requirements. Unlike commercial installations with dedicated maintenance staff, residential systems must operate reliably with minimal professional oversight. This requirement emphasizes the importance of robust, simple designs that minimize false activations while maintaining protective functionality.
Basement and crawl space installations require special consideration for environmental conditions including temperature extremes, humidity variations, and potential flooding from external sources. Sensors must distinguish between HVAC-related moisture and environmental conditions to avoid unnecessary system shutdowns. Proper installation includes elevated mounting positions and protective enclosures to prevent damage from routine maintenance activities.
Homeowner education represents a critical success factor for residential installations. Property owners must understand system operation, recognize activation signals, and know appropriate response procedures. Many installations fail to provide adequate protection because homeowners disable or bypass activated switches without addressing underlying problems. Comprehensive installation packages should include clear documentation, emergency contact information, and basic troubleshooting guidance.
Comparative Analysis: Wet Switch vs. Alternative Protection Methods
Float Switch Technology and Applications
Float switches represent the primary alternative to conductivity-based wet switches for HVAC water damage prevention. These devices utilize mechanical float mechanisms that rise with water levels, activating electrical contacts when predetermined thresholds are exceeded. Float switches excel in applications requiring precise water level control and tolerance for normal condensate flow.
The mechanical nature of float switches provides inherent advantages in harsh environments where electrical conductivity sensors might fail due to contamination or corrosion. However, float switches also introduce mechanical complexity that can lead to sticking, binding, or calibration drift over time. Regular maintenance requirements include float cleaning, pivot lubrication, and contact inspection to ensure reliable operation.
| Comparison Factor | Wet Switch (Conductivity) | Float Switch | Smart Sensors |
|---|---|---|---|
| Initial Cost | $25-75 | $40-120 | $150-400 |
| Installation Complexity | Low | Medium | High |
| Maintenance Requirements | Minimal | Moderate | Low |
| False Activation Rate | 2-5% | 1-3% | 0.5-2% |
| Response Time | 2-5 seconds | 5-15 seconds | 1-3 seconds |
| Environmental Tolerance | Good | Excellent | Variable |
Performance data from field installations indicates that float switches achieve slightly lower false activation rates compared to conductivity sensors, primarily due to their tolerance for minor moisture exposure that might trigger conductivity-based devices. However, float switches also exhibit longer response times and require more complex mounting arrangements to ensure proper operation.
Smart Sensor Integration and Advanced Monitoring
Advanced moisture monitoring systems incorporate multiple sensor types, wireless communication, and intelligent algorithms to provide comprehensive water damage protection. These systems can monitor humidity levels, detect gradual moisture increases, and predict potential failure conditions before catastrophic overflow occurs. However, increased complexity also introduces additional failure modes and higher costs that may not be justified for simple residential applications.
Smart sensor systems excel in commercial applications where comprehensive monitoring and remote management capabilities justify higher initial costs. Integration with building management systems enables automated maintenance scheduling, trend analysis, and predictive maintenance strategies that can optimize HVAC performance while preventing water damage incidents.
The reliability of smart sensor systems depends heavily on network connectivity, software updates, and cybersecurity measures that traditional electromechanical switches avoid entirely. Power outages, network failures, or software bugs can compromise system protection, potentially creating false confidence in system reliability. Hybrid approaches that combine smart monitoring with traditional backup switches may provide optimal protection for critical applications.
Implementation Action Plan: Step-by-Step Wet Switch Deployment
Phase 1: System Assessment and Planning (Week 1)
Begin implementation with comprehensive HVAC system assessment to identify critical protection points and potential failure modes. Document all condensate drainage paths, drain pan locations, and existing overflow protection measures. Photograph system components and create detailed diagrams showing proposed sensor locations and wiring routes.
Evaluate electrical requirements including available control voltage, circuit capacity, and integration points with existing HVAC controls. Verify compatibility with manufacturer warranties and local code requirements. If system modifications might affect warranty coverage, obtain written approval from HVAC manufacturer representatives before proceeding.
Develop detailed installation specifications including sensor types, mounting methods, and electrical connections. Create material lists with specific part numbers and quantities. Obtain necessary permits if required by local codes. Schedule installation during periods of minimal HVAC demand to reduce disruption to building occupants.
Phase 2: Professional Installation and Testing (Week 2-3)
Execute installation according to manufacturer specifications and local electrical codes. Begin with power isolation and lockout/tagout procedures to ensure worker safety. Install sensors in predetermined locations using appropriate mounting hardware and weatherproof enclosures where necessary.
Complete electrical connections using proper wire types and routing methods. Install dedicated circuit protection and isolation relays as required. Verify all connections using appropriate test equipment before energizing circuits. Document all wiring modifications and update system drawings to reflect actual installation.
Conduct comprehensive system testing including sensor activation tests, electrical continuity verification, and HVAC system response validation. Test each sensor individually and verify proper system shutdown and restart procedures. Document test results and create operational procedures for building maintenance staff.
Phase 3: Training and Documentation (Week 4)
Provide comprehensive training for all personnel responsible for system operation and maintenance. Cover normal operation procedures, activation response protocols, and basic troubleshooting methods. Emphasize the importance of addressing underlying problems rather than simply resetting activated switches.
Create detailed operational documentation including system diagrams, sensor locations, response procedures, and maintenance schedules. Establish clear protocols for emergency situations including after-hours activation response and contractor notification procedures. Provide contact information for qualified service technicians familiar with the installation.
Implement regular testing schedules to verify continued system operation. Monthly activation tests ensure sensors respond properly and system shutdown procedures function correctly. Annual professional inspections should verify electrical connections, sensor condition, and integration with HVAC system controls.
Performance Monitoring and Optimization Thresholds
Establish clear performance metrics to evaluate system effectiveness and identify optimization opportunities. Track activation frequency, response times, and false alarm rates to identify potential system improvements. If activation frequency exceeds two events per year, investigate underlying HVAC maintenance issues that may require attention.
Monitor false activation rates and implement corrective measures if rates exceed 5% of total activations. Common causes include sensor contamination, improper mounting, or environmental factors that can be addressed through system modifications. Document all activations including date, time, suspected cause, and corrective actions taken.
Evaluate cost-benefit performance annually by comparing installation and maintenance costs against prevented damage estimates. Factor in insurance premium reductions, avoided repair costs, and business continuption benefits when calculating return on investment. Systems that fail to demonstrate positive returns within three years may require redesign or replacement.
Future Outlook: Emerging Technologies and Industry Trends
Integration with Smart Building Systems
The convergence of wet switch technology with comprehensive building management systems represents a significant trend that will reshape water damage prevention strategies over the next decade. Advanced integration enables predictive maintenance approaches that identify potential problems before they result in system activations. Machine learning algorithms can analyze historical activation patterns, environmental conditions, and system performance data to optimize maintenance schedules and prevent failures.
Wireless sensor networks are eliminating the complexity and cost barriers associated with traditional hardwired installations. Battery-powered sensors with multi-year operational life can be deployed in locations previously considered impractical for wet switch installation. However, wireless systems introduce new challenges related to signal reliability, battery maintenance, and cybersecurity that must be carefully managed.
Cloud-based monitoring platforms enable centralized management of multiple properties and systems from single dashboards. Property management companies and service contractors can monitor hundreds of installations simultaneously, receiving immediate notifications of activation events and system malfunctions. This capability transforms wet switch technology from individual property protection to portfolio-wide risk management tools.
Regulatory and Code Development Trends
Building codes increasingly recognize the importance of water damage prevention systems, particularly in commercial and multi-family residential applications. The International Building Code (IBC) and International Mechanical Code (IMC) are incorporating specific requirements for condensate overflow protection in certain occupancy types and system configurations [7].
Insurance industry initiatives are driving adoption through premium incentives and risk assessment modifications. Properties with documented water damage prevention systems may qualify for reduced premiums or enhanced coverage options. Some insurers now require wet switch installation as a condition of coverage for high-risk properties or those with previous water damage claims.
Environmental regulations related to water conservation and stormwater management may indirectly promote wet switch adoption by requiring more sophisticated condensate management systems. Properties that can demonstrate effective condensate capture and reuse may qualify for regulatory incentives or reduced utility fees.
Technology Evolution and Performance Improvements
Sensor technology continues to evolve toward greater reliability, sensitivity, and intelligence. Next-generation devices incorporate multiple sensing methods including conductivity, capacitive, and optical detection to reduce false activations while improving response times. Advanced signal processing can distinguish between different types of moisture events and adjust response accordingly.
Energy efficiency improvements are reducing power consumption and enabling solar-powered installations for remote or off-grid applications. Ultra-low-power sensor designs can operate for years on single battery charges while maintaining continuous monitoring capability. These advances expand potential applications to locations where electrical power availability previously limited installation options.
Cost reduction trends driven by manufacturing scale and technology maturation are making wet switch systems accessible to broader market segments. Prices for basic systems have declined by approximately 30% over the past five years while performance and reliability have improved significantly [8]. This trend is expected to continue as market adoption increases and manufacturing volumes grow.
Key Takeaways: Essential Points for Property Owners and Contractors
- Financial Impact: Water damage claims average $12,514 per incident, with HVAC-related damage representing a significant and preventable portion of these costs. Wet switch systems typically cost less than $200 installed, providing exceptional return on investment for property protection.
- System Effectiveness: Properly installed wet switches can prevent up to 95% of HVAC-related water damage incidents by detecting overflow conditions within 2-5 seconds of occurrence. Early detection enables rapid response before significant property damage occurs.
- Installation Requirements: Professional installation ensures proper integration with HVAC controls and compliance with electrical codes. DIY installations may void equipment warranties and create safety hazards that outweigh potential cost savings.
- Maintenance Considerations: Wet switch systems require minimal ongoing maintenance but benefit from annual professional inspection and monthly activation testing. Regular HVAC maintenance remains essential to prevent the underlying conditions that trigger wet switch activation.
