An HVAC metering device is the component that controls how much liquid refrigerant flows into the evaporator coil, dropping it from high pressure to low pressure so it can absorb heat from the air in your home. The four common types are the thermostatic expansion valve (TXV), electronic expansion valve (EEV), fixed orifice or piston, and capillary tube. Each one meters refrigerant differently, which directly affects cooling efficiency and comfort.
Which type sits in your system depends on the equipment. Basic air conditioners often use a fixed orifice or capillary tube, while high-efficiency units and heat pumps rely on a TXV or EEV for tighter, adaptive control. In west-central Minnesota, where AC units and heat pumps run hard through humid summers, a failing or mismatched metering device shows up as uneven cooling, short-cycling, or a system that never quite keeps up.
What a Metering Device Does in Your AC or Heat Pump
The metering device is one of the four main parts of a sealed, closed-loop refrigerant system, along with the compressor, condenser, and evaporator coils. It sits in the liquid line just before the indoor evaporator. High-pressure liquid refrigerant leaves the outdoor condenser, passes through the metering device, and comes out as a cold, low-pressure mix of liquid and vapor. That sudden pressure drop lets the refrigerant “flash” and get cold enough to pull heat from the air crossing the evaporator coil.
Because it governs how much refrigerant reaches the coil, the metering device drives efficiency and capacity. Feed too little and the coil starves, superheat climbs, and cooling suffers. Feed too much and liquid can flood back toward the compressor, one of the fastest ways to shorten its life. The goal is to deliver just enough refrigerant to fully use the coil without overfeeding it – a balance measured as superheat, typically 8 to 12 degrees Fahrenheit at the evaporator outlet on a properly charged system.

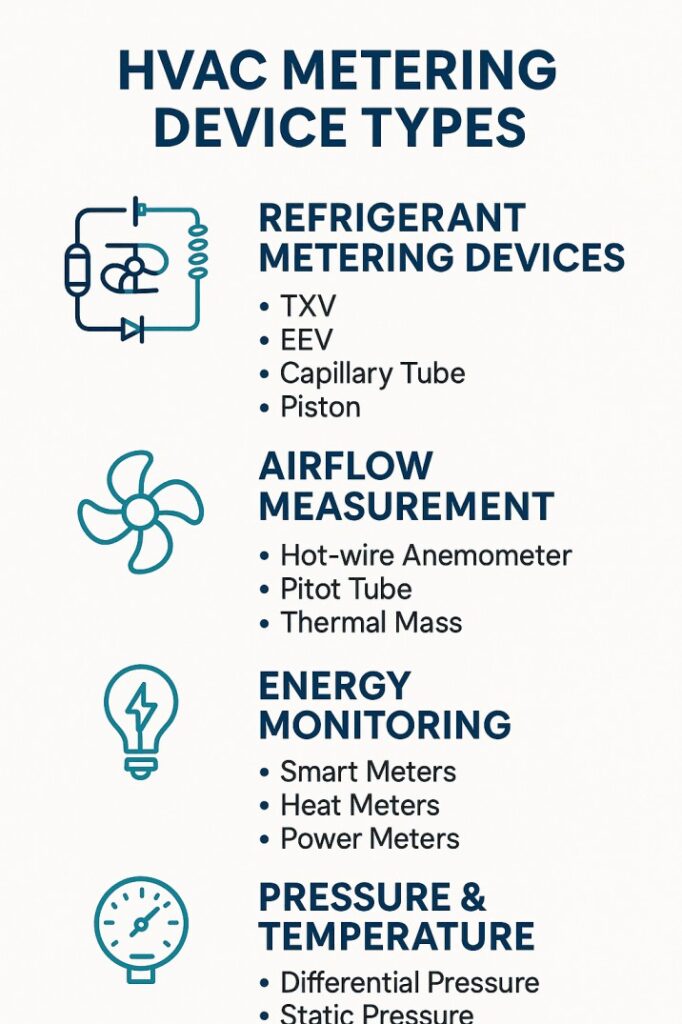

The Four Types of Metering Devices in HVAC
Metering devices fall into two camps: adjustable devices that respond to changing conditions (TXV and EEV) and fixed-restriction devices that do not (fixed orifice and capillary tube). Here is how each works and where it shows up.
Thermostatic Expansion Valve (TXV)
A thermostatic expansion valve is the most common adjustable metering device in modern residential systems. It uses a sensing bulb clamped to the evaporator outlet and filled with a small refrigerant charge. As the temperature at the coil outlet changes, pressure inside the bulb rises or falls and opens or closes the valve to hold a steady superheat. So a TXV automatically feeds more refrigerant on a hot, high-load afternoon and throttles back on a mild day, keeping the coil fully fed without overfeeding it. TXVs are fully mechanical, need no electricity, and are standard on most 14-plus SEER2 systems.
Electronic Expansion Valve (EEV)
An electronic expansion valve does the same job as a TXV but with a stepper motor and a small control board instead of a sensing bulb. Thermistors and pressure sensors report conditions to the controller, which drives the valve open or closed in precise steps. EEVs react faster, hold tighter superheat, and work across a much wider range of conditions, which is why they are standard on inverter-driven systems and cold-climate heat pumps. That range matters in Minnesota, where a heat pump meters refrigerant from a humid 90 degree afternoon down to well below freezing in heating mode.
Fixed Orifice (Piston)
A fixed orifice, often called a piston, is simply a precisely sized hole the refrigerant is forced through. It has no moving parts and cannot adjust to changing loads, so it is sized for one set of design conditions and performs best there. Pistons are inexpensive, reliable, and common on basic air conditioners and many heat pumps, where the piston seats one way for cooling and unseats for reversed flow in heating. The trade-off is efficiency: because it cannot modulate, a fixed orifice loses ground to a TXV or EEV when temperatures or loads swing.
Capillary Tube
A capillary tube is a long, coiled section of very small-diameter tubing that creates a fixed restriction through length rather than a single orifice. Like the piston, it cannot adjust, and it is extremely sensitive to refrigerant charge. You will find capillary tubes mostly in small, factory-sealed equipment such as window air conditioners, dehumidifiers, and refrigerators rather than central split systems. They are cheap and dependable in the narrow conditions they are built for, but offer no flexibility.
| Metering Device | How It Meters | Adjusts to Load? | Typical Use |
|---|---|---|---|
| Thermostatic Expansion Valve (TXV) | Sensing bulb holds set superheat | Yes, mechanical | Most modern central AC and heat pumps |
| Electronic Expansion Valve (EEV) | Stepper motor and sensors | Yes, electronic | Inverter and cold-climate heat pumps |
| Fixed Orifice / Piston | Fixed sized hole | No | Basic AC and some heat pumps |
| Capillary Tube | Long narrow fixed tube | No | Window units, dehumidifiers, fridges |
How to Tell Which Metering Device You Have
You usually cannot tell from the thermostat or outdoor unit alone, because the metering device lives at the indoor evaporator coil or the liquid line near it. A TXV looks like a small brass valve body with a thin capillary line running to a sensing bulb strapped to the suction line, while an EEV adds wiring and a controller. A piston hides inside a liquid-line fitting and is not visible from outside, and a capillary tube is a tight coil of thin copper on smaller sealed units. Since most of this is tucked inside the air handler or coil cabinet, an HVAC/R technician is the reliable way to confirm what your system uses and whether it is the right match.
Signs Your Metering Device Is Failing
A metering device rarely fails on its own, but when it sticks, clogs, or loses its charge, the symptoms are distinctive:
- Weak or uneven cooling even though the outdoor unit is running
- Ice or frost forming on the evaporator coil or the copper suction line
- A hissing or whistling sound near the indoor coil
- Short-cycling, where the system starts and stops in quick bursts
- A TXV that “hunts,” swinging between overfeeding and starving the coil
The catch is that a low refrigerant charge, a dirty coil, or a restricted filter can mimic the same symptoms, which is why a technician measures superheat and subcooling with gauges before condemning a metering device. Catching these issues early is one more reason to schedule a seasonal HVAC tune-up before the first stretch of hot weather rather than during a July breakdown.
Why This Matters for West-Central Minnesota Homes
Summers around Olivia, Willmar, and Hutchinson bring real humidity, not just heat, and a metering device feeding the coil correctly is what lets your system pull moisture from the air instead of just chilling it. When it overfeeds or underfeeds, dehumidification drops off and the house feels clammy even at the set temperature. Homeowners running a heat pump year-round ask even more of the device, since it has to meter refrigerant accurately in both cooling and heating across a temperature swing few milder climates ever see. Getting it right keeps energy bills in check and protects the compressor, the most expensive part in the system.
Frequently Asked Questions
What are the four types of metering devices in HVAC?
The four types are the thermostatic expansion valve (TXV), electronic expansion valve (EEV), fixed orifice or piston, and capillary tube. TXVs and EEVs adjust refrigerant flow to match the load, while pistons and capillary tubes provide a fixed restriction that does not change.
Can a fixed orifice be replaced with a TXV?
Often yes. Many systems that ship with a piston can be upgraded to a matched TXV to improve efficiency and comfort. It has to be the correct valve for the equipment and refrigerant, so this is a job for a licensed technician who can verify the match and recheck the charge afterward.
What happens when a metering device fails?
A stuck-closed or clogged device starves the coil, causing poor cooling and often icing on the line. A stuck-open device overfeeds the coil and can send liquid refrigerant back toward the compressor, risking serious damage. Either way, the system loses efficiency and should be checked promptly.
How long does an HVAC metering device last?
A quality metering device typically lasts the life of the system when the refrigerant stays clean and dry. Most failures trace back to moisture or debris in the loop, so keeping the system sealed and maintained matters more than the age of the part.
