In the critical landscape of building fire safety, HVAC smoke detectors represent a sophisticated first line of defense that most occupants never see but depend upon for their lives. Recent research by the Fire Detection Institute demonstrates that commercial duct smoke detectors can reliably detect fires as small as 100-200 kilowatts even with substantial air dilution ratios[1], while the U.S. commercial market for these systems reached $169.4 million in 2024 and projects 5.0% annual growth through 2030[2]. These devices serve dual critical functions: preventing the recirculation of dangerous smoke quantities through building ventilation systems and initiating rapid HVAC shutdown protocols that can mean the difference between contained incidents and catastrophic building-wide emergencies.
Understanding HVAC Smoke Detection in Modern Building Safety
The integration of smoke detection systems within heating, ventilation, and air conditioning infrastructure represents one of the most significant advances in building fire safety over the past three decades. Unlike traditional area smoke detectors that respond to smoke already present in occupied spaces, HVAC smoke detectors function as early warning sentinels positioned within the building’s circulatory system itself. This strategic placement allows them to intercept smoke particles before they can be distributed throughout a structure, providing precious additional minutes for evacuation and emergency response.
The technical foundation for HVAC smoke detection rests on a fundamental understanding of how fires interact with mechanical ventilation systems. Research conducted by the University of Maryland’s Department of Fire Protection Engineering in collaboration with the National Research Council of Canada has definitively established that HVAC system pressures generally exceed those produced by fires themselves[1]. This finding carries profound implications for building safety, as it confirms that mechanical ventilation systems will actively distribute smoke to non-fire areas unless specifically designed to prevent such distribution or shut down upon detection of smoke.
The regulatory landscape governing HVAC smoke detection has evolved significantly since the initial adoption of these systems. The National Fire Protection Association’s NFPA 90A standard, which governs the installation of air-conditioning and ventilating systems, now mandates specific placement and performance criteria for duct smoke detectors[3]. These requirements are complemented by Underwriters Laboratories Standard 268A, which establishes the technical specifications that duct smoke detectors must meet to ensure reliable operation in the challenging environment of HVAC ductwork[4].
Market Dynamics and Technology Evolution

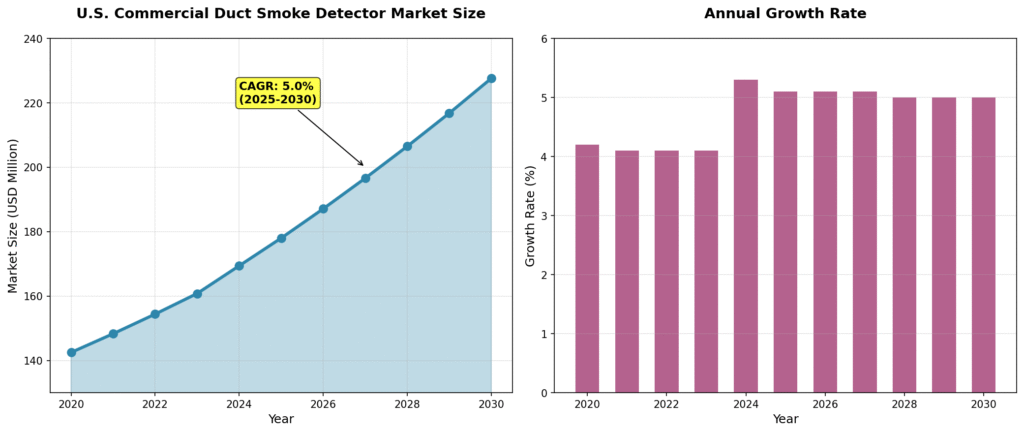

The commercial duct smoke detector market reflects the broader trends in building safety technology, with increasing sophistication driving both adoption rates and performance capabilities. Market analysis reveals that the sector has maintained consistent growth despite economic uncertainties, with the U.S. commercial segment alone representing a $169.4 million market in 2024[2]. This growth trajectory, projected to continue at a compound annual growth rate of 5.0% through 2030, reflects several converging factors including stricter building codes, increased awareness of fire safety risks, and technological improvements that have enhanced detector reliability while reducing false alarm rates.
Year,Market Size (USD Million),Growth Rate (%)
2020,142.5,4.2
2021,148.3,4.1
2022,154.4,4.1
2023,160.8,4.1
2024,169.4,5.3
2025,178.0,5.1
2026,187.1,5.1
2027,196.6,5.1
2028,206.5,5.0
2029,216.8,5.0
2030,227.6,5.0

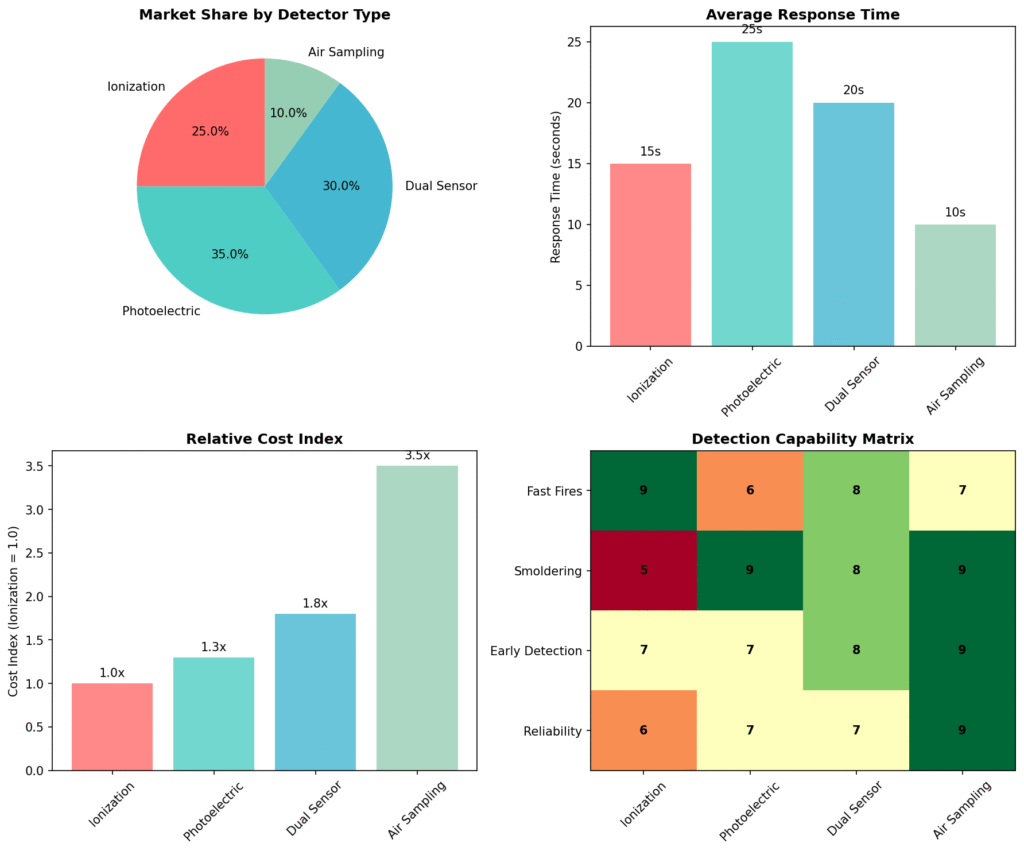

The technology landscape within HVAC smoke detection encompasses four primary detector types, each optimized for specific fire characteristics and environmental conditions. Ionization detectors, which account for approximately 25% of the commercial market, excel at detecting fast-burning fires characterized by small particle sizes and rapid flame spread[2]. These devices utilize a small radioactive source to ionize air molecules, creating a measurable electrical current that decreases when smoke particles interfere with the ionization process.
Photoelectric detectors represent the largest market segment, leveraging light-scattering principles to detect larger smoke particles typically associated with smoldering fires. The technology employs a light source and photosensitive receiver positioned at specific angles within the detector chamber. When smoke particles enter this chamber, they scatter light toward the receiver, triggering an alarm condition. This detection method proves particularly effective for fires involving synthetic materials, upholstery, and electrical components that tend to smolder before producing visible flames.
| Detector Type | Market Share | Response Time | Relative Cost | Optimal Fire Type | Environmental Limitations |
|---|---|---|---|---|---|
| Ionization | 25.0% | 15 seconds | 1.0x | Fast-burning, flaming | High humidity, dust |
| Photoelectric | 35.0% | 25 seconds | 1.3x | Smoldering, synthetic materials | Steam, aerosols |
| Dual Sensor | 30.0% | 20 seconds | 1.8x | Comprehensive coverage | Complex calibration |
| Air Sampling | 10.0% | 10 seconds | 3.5x | Very early detection | Maintenance intensive |
Regulatory Framework and Installation Requirements
The regulatory environment governing HVAC smoke detection systems reflects decades of research, real-world testing, and tragic lessons learned from building fires where inadequate smoke management contributed to loss of life. The National Fire Protection Association’s NFPA 90A standard establishes the foundational requirements for duct smoke detector installation, mandating specific placement criteria based on system capacity and configuration[3]. These requirements distinguish between supply and return air systems, with different thresholds triggering detector installation requirements.

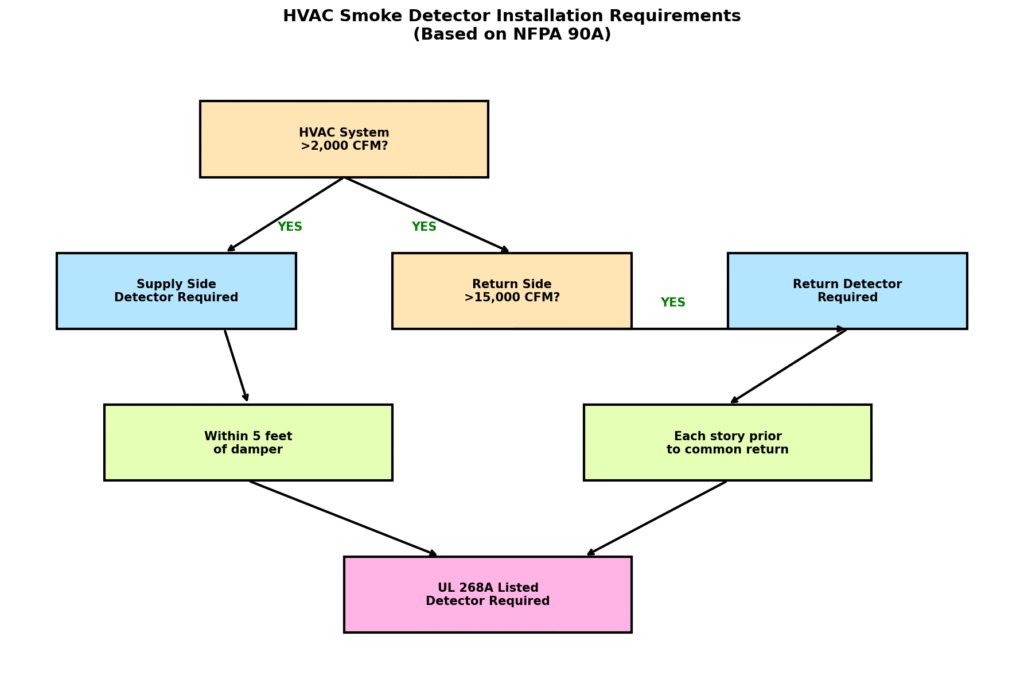

For supply air systems exceeding 2,000 cubic feet per minute (CFM), NFPA 90A requires duct smoke detectors to be positioned downstream of air filters and ahead of any branch connections[3]. This placement ensures that detectors can intercept smoke before it enters the distribution network while avoiding false alarms from filter-related particulates. The 2,000 CFM threshold reflects engineering analysis indicating that smaller systems lack sufficient air movement to effectively distribute smoke throughout a building, making duct detection less critical for fire safety.
Return air systems face more complex requirements, with detector installation mandated for systems exceeding 15,000 CFM that serve multiple stories[3]. The higher threshold for return systems acknowledges that these installations primarily prevent smoke recirculation rather than initial distribution. Detectors must be installed at each story prior to connection to a common return and before any recirculation or fresh air inlet connections. However, the standard provides an important exception: return system smoke detectors are not required when the entire space served by the air distribution system is protected by area smoke detectors.
The technical specifications governing duct smoke detector performance are established by Underwriters Laboratories Standard 268A, which defines the environmental conditions these devices must withstand and the detection capabilities they must demonstrate[4]. The standard specifies that duct smoke detectors must operate reliably in temperatures ranging from 32°F to 100°F (0°C to 38°C), accommodating the thermal variations typical of HVAC systems. Additionally, detectors must function effectively in air velocities up to 4,000 feet per minute, ensuring reliable operation even in high-velocity ductwork applications.
Performance Analysis and Effectiveness Research
The effectiveness of HVAC smoke detection systems has been rigorously evaluated through comprehensive research programs that combine laboratory testing, computer modeling, and full-scale building experiments. The Fire Detection Institute’s Duct Detection Research Initiative, conducted in partnership with the University of Maryland and the National Research Council of Canada, represents the most comprehensive analysis of duct smoke detector performance to date[1]. This research addressed fundamental questions about detector reliability, smoke dilution effects, and the comparative advantages of different detection technologies.
One of the most significant findings from this research concerns the relationship between fire-generated pressures and HVAC system pressures. Contrary to assumptions that large fires might overpower mechanical ventilation systems, the research demonstrated that HVAC systems generally produce higher pressures than fires, making them more effective at distributing smoke throughout buildings[1]. This finding provides strong technical justification for NFPA 90A requirements mandating HVAC system shutdown upon smoke detection, as continued operation would accelerate smoke distribution to non-fire areas.
The research also addressed concerns about smoke dilution reducing detector effectiveness. Laboratory and full-scale testing revealed that while dilution does occur as smoke mixes with clean air in ductwork, commercially available duct smoke detectors remained capable of detecting fires in the 100-200 kilowatt range even with substantial dilution ratios[1]. This performance level proves adequate for detecting fires during their growth phase, before they reach the point where manual suppression becomes impossible.
Smoke aging effects, another area of investigation, revealed that particle characteristics change rapidly as smoke travels through ductwork. The number of small particles decreased by a factor of ten over just three meters of duct length, while larger particles increased by a factor of two[1]. Interestingly, this aging process may actually improve detection performance for photoelectric detectors, which respond more strongly to larger particles. However, the research found minimal difference in detector response over distances equivalent to ten building stories, suggesting that aging effects stabilize relatively quickly.
Installation Best Practices and System Integration
The successful implementation of HVAC smoke detection systems requires careful attention to installation details that can significantly impact long-term performance and reliability. Proper detector placement within ductwork represents perhaps the most critical factor, as positioning errors can result in inadequate smoke sampling, excessive false alarms, or complete detection failure. NFPA 90A mandates that detectors be installed to obtain a “representative sample of the airstream,” but achieving this goal requires understanding of airflow patterns, turbulence effects, and sampling tube design[3].
The five-foot proximity requirement for smoke dampers reflects engineering analysis of airflow dynamics and response time considerations. Positioning detectors too far from dampers can result in significant delays between smoke detection and damper closure, allowing substantial quantities of smoke to pass through the system before containment occurs. Conversely, placing detectors too close to dampers may result in inadequate air mixing, potentially creating dead zones where smoke could pass undetected.
Air sampling tube design represents another critical installation consideration, particularly for detectors that extend into ductwork rather than mounting flush with duct walls. The tube configuration must ensure adequate air capture while minimizing pressure drop and avoiding interference with normal airflow patterns. UL 268A specifies that sampling tubes must be designed to collect air from the duct in a manner that provides representative sampling of the airstream[4]. This requirement typically translates to multiple sampling points across the duct cross-section, with tube positioning optimized for the specific duct geometry and airflow characteristics.
Integration with building automation systems has become increasingly sophisticated, enabling coordinated responses that extend far beyond simple HVAC shutdown. Modern installations often incorporate smoke detector signals into comprehensive emergency management protocols that can include elevator recall, stairwell pressurization activation, emergency lighting systems, and fire department notification. This integration requires careful coordination between multiple building systems and thorough testing to ensure reliable operation during emergency conditions.
Maintenance Requirements and Testing Protocols
The maintenance requirements for HVAC smoke detection systems reflect the challenging environment in which these devices operate, with exposure to dust, temperature variations, humidity fluctuations, and air velocity extremes that can affect long-term performance. NFPA standards mandate visual inspection at least twice yearly, with cleaning required every six months or as needed to prevent false alarms and ensure accurate detection[3]. These requirements recognize that ductwork environments naturally accumulate particulates that can interfere with detector operation if not regularly removed.
The cleaning process itself requires specific techniques to avoid damage to sensitive detector components while ensuring thorough removal of accumulated debris. Dry compressed air represents the preferred cleaning method for most detector types, as it effectively removes particulates without introducing moisture that could cause corrosion or electrical problems. Vacuum cleaning may be appropriate for certain detector designs, but care must be taken to avoid damage to sampling tubes or sensing elements.
Functional testing protocols must verify not only detector response to smoke but also proper integration with HVAC control systems and emergency response protocols. Smoke entry testing using approved test aerosols provides the most reliable method for verifying detector sensitivity, but this testing must be conducted carefully to avoid triggering building-wide alarm systems unnecessarily. Remote test switches, where installed, can simplify testing procedures while providing verification of signal transmission and system response.
| Maintenance Task | Frequency | Method | Performance Criteria | Documentation Required |
|---|---|---|---|---|
| Visual Inspection | Semi-annual | Physical examination | No visible damage or obstruction | Inspection checklist |
| Cleaning | Semi-annual or as needed | Dry compressed air | No visible particulate accumulation | Cleaning log |
| Functional Testing | Annual | Smoke entry test | Response within specified time | Test results record |
| System Integration Test | Annual | End-to-end verification | Proper HVAC shutdown response | System response log |
| Calibration Verification | As specified by manufacturer | Certified test equipment | Within manufacturer tolerances | Calibration certificate |
Economic Analysis and Cost-Benefit Considerations
The economic justification for HVAC smoke detection systems extends beyond simple compliance with building codes to encompass quantifiable benefits in terms of property protection, business continuity, and life safety. While initial installation costs can range from several hundred to several thousand dollars per detector depending on system complexity and integration requirements, the potential cost savings from early fire detection and smoke containment often justify these investments within the first few years of operation.
Insurance industry data consistently demonstrates that buildings equipped with comprehensive fire detection systems, including HVAC smoke detection, experience significantly lower fire-related losses compared to buildings with minimal detection capabilities. The Insurance Services Office (ISO) Commercial Fire Rating Schedule provides premium reductions for buildings with advanced fire protection systems, with HVAC smoke detection contributing to improved ratings that can result in insurance savings of 5-15% annually[5].
Business continuity considerations add another dimension to the economic analysis, as smoke damage often proves more costly and disruptive than fire damage itself. Smoke can contaminate entire buildings, requiring extensive cleaning and restoration that can keep businesses closed for weeks or months. HVAC smoke detection systems that prevent smoke distribution can dramatically reduce the scope of contamination, enabling faster recovery and minimizing business interruption losses.
The total cost of ownership for HVAC smoke detection systems must account for ongoing maintenance, testing, and potential replacement costs over the system’s operational lifetime. Industry experience suggests that properly maintained duct smoke detectors can provide reliable service for 10-15 years, with annual maintenance costs typically representing 5-10% of initial installation costs. This maintenance investment proves essential for maintaining system reliability and avoiding the much higher costs associated with detection system failures during actual fire events.
Future Trends and Technological Developments
The evolution of HVAC smoke detection technology continues to accelerate, driven by advances in sensor technology, wireless communications, artificial intelligence, and building automation systems. Next-generation detectors increasingly incorporate multiple sensing technologies within single devices, combining ionization, photoelectric, and thermal detection capabilities to provide enhanced discrimination between actual fire conditions and nuisance alarm sources. These multi-sensor approaches promise to reduce false alarm rates while improving detection sensitivity and response times.
Wireless communication capabilities are transforming HVAC smoke detection system architecture, enabling more flexible installation configurations and reducing the extensive wiring requirements that have historically complicated detector installations. Advanced wireless protocols provide reliable communication even in the challenging radio frequency environment of commercial buildings, while battery technology improvements support extended operational periods between maintenance intervals.
Artificial intelligence and machine learning algorithms are beginning to appear in advanced detection systems, offering the potential for adaptive sensitivity adjustment based on environmental conditions and historical performance data. These systems can learn to distinguish between normal operational variations and actual fire conditions, potentially reducing false alarms while maintaining high detection sensitivity. However, the implementation of AI-based systems in life safety applications requires careful validation and regulatory approval to ensure reliability under all operating conditions.
Integration with Internet of Things (IoT) platforms and cloud-based building management systems represents another significant trend, enabling remote monitoring, predictive maintenance, and comprehensive data analytics. These capabilities allow building operators to track detector performance trends, optimize maintenance schedules, and identify potential problems before they result in system failures. However, cybersecurity considerations become increasingly important as detection systems become more connected and potentially vulnerable to cyber attacks.
Key Takeaways and Implementation Recommendations
The implementation of effective HVAC smoke detection systems requires a comprehensive understanding of regulatory requirements, technology capabilities, and installation best practices. Building owners and facility managers should prioritize compliance with NFPA 90A requirements while considering the specific fire risks and operational characteristics of their facilities. The 5.0% annual growth rate projected for the commercial duct smoke detector market through 2030 reflects increasing recognition of these systems’ value in comprehensive fire protection strategies[2].
Technology selection should balance initial costs against long-term performance requirements, with particular attention to environmental conditions and maintenance accessibility. While ionization detectors offer cost advantages for applications involving fast-burning fires, photoelectric and dual-sensor technologies may provide superior performance in environments with significant smoldering fire risks. Air sampling systems, despite higher costs, offer unmatched early detection capabilities for critical applications where maximum warning time is essential.
Maintenance program development should emphasize preventive care and regular testing to ensure continued reliability throughout the system’s operational lifetime. The semi-annual inspection and cleaning requirements mandated by NFPA standards represent minimum requirements, and facilities with challenging environmental conditions may benefit from more frequent maintenance intervals. Documentation of all maintenance activities provides essential records for regulatory compliance and insurance purposes.
Future planning should consider the rapid pace of technological development in fire detection systems, with particular attention to wireless communication capabilities and advanced analytics that can improve system performance while reducing operational costs. However, any new technologies should be thoroughly evaluated for reliability and regulatory compliance before implementation in life safety applications.
