When your cozy home oasis feels like a winter chill zone, with cold air rivaling an air conditioning blast, the culprit might be a faulty HVAC heat exchanger in furnaces or issues with heated water systems. This critical component, whether fueling furnaces or heated water, is the heart of your heating system, quietly working behind the scenes to keep you toasty. But when it falters, you’re left in the cold. On the flip side, a well-maintained heat exchanger, like those in furnaces and air conditioning systems, efficiently cycles thermal energy and heated water throughout your space, proving that not all heroes wear capes—some just hum along in your basement or attic. Dive into the essentials of maintaining and troubleshooting your HVAC heat exchanger, furnaces, air conditioning, and refrigeration systems to ensure comfort and fuel efficiency doesn’t take an unscheduled holiday.

In this post, we’ll demystify the workings of an HVAC heat exchanger, used in furnaces and refrigeration, and highlight signs of trouble related to convection and thermal energy. Recognizing early symptoms can mean the difference between a simple fix and a budget-busting replacement. Stay ahead of the game with these insights to safeguard your sanctuary’s warmth by insulating walls, maintaining furnaces, and retaining thermal energy inside.

Key Takeaways

Defining Heat Exchangers

Thermal Transfer

Heat exchangers are critical in transferring thermal energy. They allow heat to move between two fluids without the fluids mixing. This convection process is essential for HVAC heat exchanger systems that need to maintain a specific temperature. They use walls or plates in an HVAC heat exchanger to separate the fluids and ensure efficient energy transfer through convection.

In a heat exchanger, one fluid heats up as it absorbs thermal energy through convection, while the other cools down as it loses energy. This exchange can happen through various methods, including conduction and convection, depending on the design of the exchanger.

Comfort Regulation

These devices, like the HVAC heat exchanger using convection, play a vital role in maintaining indoor comfort. In HVAC systems, they either heat or cool air through convection as required by the environment. During winter, they warm incoming air using heat from either a furnace or an outside source through convection. In summer, HVAC heat exchangers work in reverse, removing warmth from indoor air through convection to keep spaces cool.

The ability of heat exchangers to regulate temperature makes them indispensable in residential and commercial buildings. They contribute significantly to creating comfortable living and working conditions, utilizing HVAC heat exchangers and convection, regardless of outdoor temperatures.

Contamination Prevention

Heat exchangers operate on a principle that keeps two fluids separate to prevent contamination. This separation is crucial because it ensures that substances like water or refrigerants don’t mix with the air distributed throughout a building.

By keeping these fluids apart, heat exchangers also help maintain system efficiency and longevity. When contaminants enter a system, they can cause corrosion or buildup that reduces performance over time. Heat exchangers effectively mitigate this risk by their design.

Efficiency Enhancement

They not only provide comfort but also enhance efficiency in heating and cooling systems. By transferring heat between fluids quickly and effectively, they reduce the amount of energy needed to reach desired temperatures. This efficiency translates into lower utility bills and reduced environmental impact.

Properly maintained heat exchangers can last many years, making them a smart investment for any HVAC system. They are designed to withstand high temperatures and pressures while still performing at peak levels.

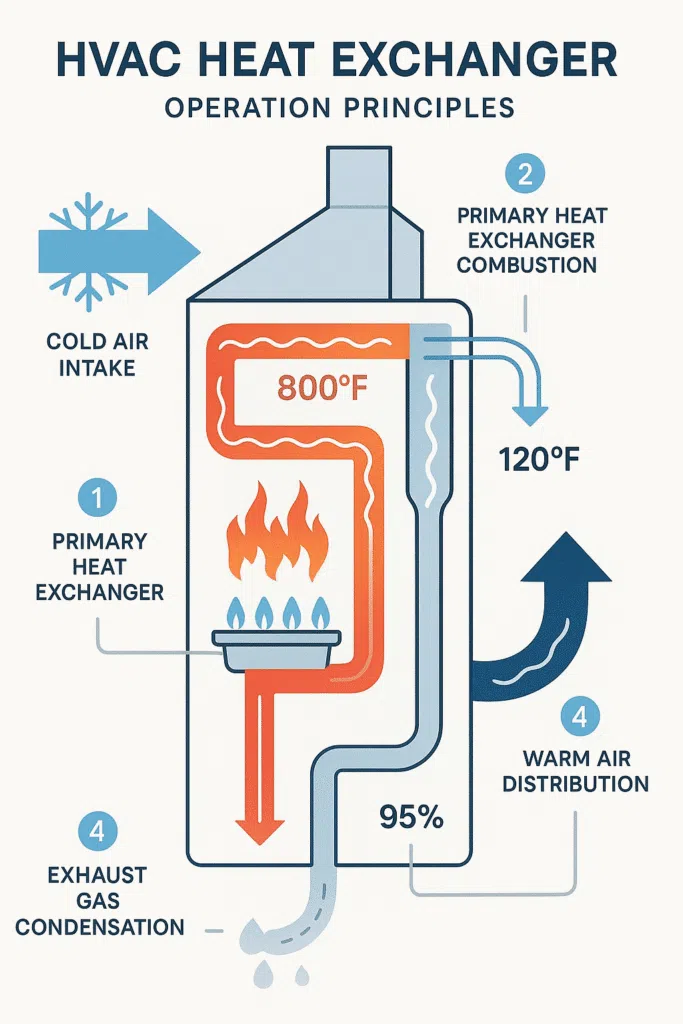

Heat Exchanger Operational Principles

Thermal Conductivity

Heat exchangers harness the physical principle of thermal conductivity to transfer heat. Metals, often used in their construction, conduct heat efficiently. They allow energy to move from a hotter to a cooler fluid without mixing them. The process relies on direct contact between the metal wall and the fluids. This interaction facilitates the energy’s journey across the barrier.

Different materials affect this transfer rate. For instance, copper stands out for its exceptional thermal conduction properties. It quickly transfers heat, making it a popular choice for many heat exchanger designs.

Fluid Dynamics

Fluid movement plays a pivotal role in how a heat exchanger works. A faster flow rate can enhance the efficiency of heat transfer. In heating mode, warm fluid passes through one side of the exchanger, releasing its energy to the cooler fluid on the opposite side. For cooling, this process reverses; the cool fluid absorbs energy from the warmer one.

The design includes channels that guide fluids in specific directions—often countercurrent—to maximize exposure time and surface area contact. This method ensures optimal temperature change for both fluids involved.

Energy Conservation

At its core, a heat exchanger functions as an embodiment of energy conservation principles. The device does not generate heat but redistributes it, maintaining an overall balance within a system. During operation, no thermal energy is lost; it merely shifts from one medium to another.

This characteristic makes heat exchangers crucial in systems where energy efficiency is paramount. They are instrumental in reducing waste and enhancing performance across various applications.

Efficiency Factors

Several factors influence how effectively a heat exchanger operates:

Manufacturers meticulously calculate these variables during design to tailor each unit for its intended function—be it for residential heating or industrial processes.

Types of HVAC Heat Exchangers

Air-to-Air

Air-to-air heat exchangers transfer heat between two separate air streams. They are common in residential and commercial HVAC systems. These devices improve energy efficiency by recovering heat from exhaust air and using it to warm incoming fresh air. This process reduces the need for additional heating.

They excel in environments with moderate climates, where extreme temperature shifts aren’t a concern. For instance, an office building in a temperate region would benefit from an air-to-air system, reducing energy costs while maintaining indoor comfort.

Air-to-Water

Air-to-water heat exchangers function by transferring heat from air to water. They are essential in systems where heating or cooling is distributed through water, such as radiant floor heating or chilled beams. This type offers greater flexibility for architects and engineers designing systems that integrate with existing water-based infrastructure.

In colder regions, these exchangers can be particularly effective. They allow buildings to use heated water for melting snow on walkways or warming spaces through underfloor heating systems, optimizing comfort in harsh conditions.

Plate & Frame

Plate and frame heat exchangers consist of corrugated plates assembled in a frame, creating a series of channels for hot and cold fluids to flow through and exchange heat. Their compact design makes them suitable for applications where space is at a premium.

These types shine in industrial settings where precise temperature control is crucial. A chemical processing plant might employ plate and frame exchangers to maintain specific temperatures during manufacturing, ensuring product quality and safety.

Shell & Tube

Shell and tube heat exchangers feature a series of tubes enclosed within a shell, with one fluid flowing through the tubes and another around them within the shell. They are built tough to handle high pressures and temperatures.

Such durability makes them ideal for heavy-duty applications like power generation or marine HVAC systems. In these settings, they must withstand challenging conditions while maintaining reliable performance.

Through understanding these various types of HVAC heat exchangers, we see how each is tailored for particular environments or requirements. Whether optimizing for space constraints with plate and frame designs or enduring rugged conditions using shell and tube models, the right choice depends on the specific needs of the application.

Functions of Heat Exchangers in HVAC

Dual Role

Heat exchangers in HVAC systems play a crucial role year-round. They warm air during winter months by transferring heat from the hot side to the cold, ensuring homes stay comfortable. When summer arrives, they reverse the process. The refrigerant within the system absorbs indoor heat and releases it outdoors, keeping interiors cool.

They do not simply alternate between heating or cooling; they optimize the temperature of circulating air. Without them, an HVAC system cannot function properly.

Energy Efficiency

Energy conservation is a key benefit of using heat exchangers. By moving thermal energy from one medium to another without needing extra power, they cut down on energy consumption. This transfer happens with minimal loss, meaning less work for both heating and cooling components.

Effective heat transfer means that systems don’t have to run as long or as hard, which translates into lower utility bills for commercial properties. Over time, this efficiency can lead to significant cost savings.

Air Quality

Indoor air quality sees substantial improvement thanks to heat exchangers. They ensure that only clean and filtered air circulates through commercial buildings. Contaminants are kept out of the airflow due to tight seals and precise operation.

A well-maintained heat exchanger will prevent pollutants from entering spaces where people live and work. This contributes to healthier environments and is especially important for those with allergies or respiratory issues.

Professional Services

It’s vital that qualified professionals handle heat exchanger services. They understand how these components work within an HVAC system. Regular maintenance checks include inspecting headers and other parts for signs of wear or damage.

Professionals also ensure that all types meet the specific needs of a building’s HVAC setup. Their expertise helps maintain system efficiency and prolongs the lifespan of these critical components.

Importance of Heat Exchangers

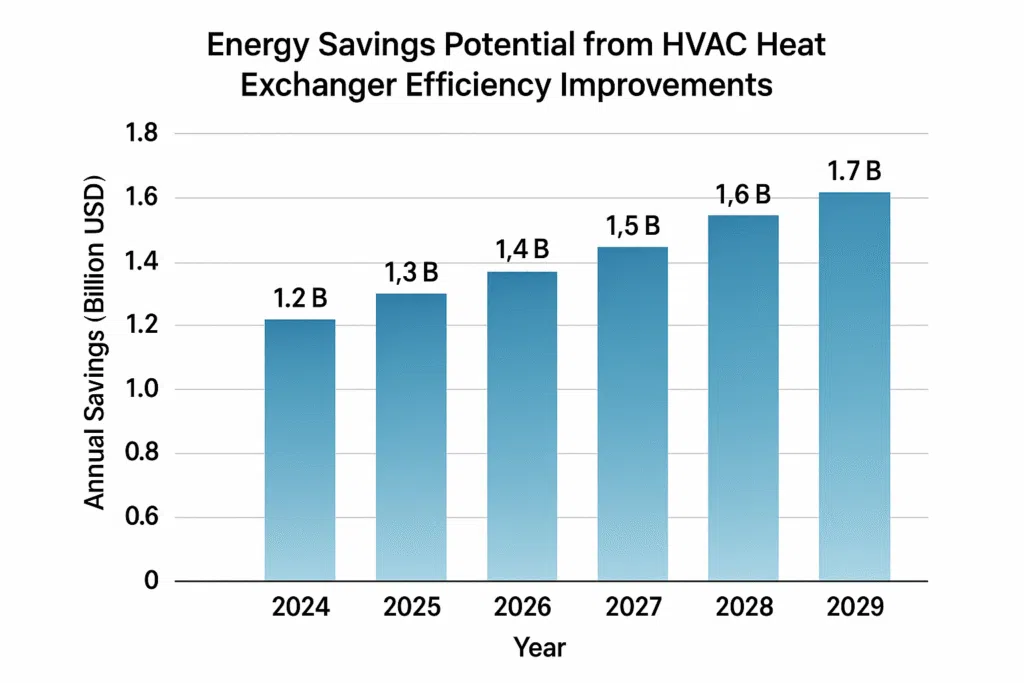

Energy Savings

Heat exchangers play a pivotal role in energy conservation. By optimizing heat transfer, these devices minimize the need for additional heating or cooling, slashing energy use. The efficiency of an exchanger can lead to significant cost reductions over time. For instance, heated water returning from a system can preheat incoming water via a heat exchanger, lessening the boiler’s workload.

They harness thermal energy from one fluid to another effectively when there’s a temperature difference, without mixing them. This exchange process is crucial in HVAC systems where maintaining desired temperatures is essential while keeping energy consumption low.

Environmental Impact

Efficient heat exchangers contribute to environmental protection. By reducing the demand for energy, they inherently cut down on greenhouse gas emissions associated with power generation. A well-designed heat exchange system ensures minimal loss of thermal energy, translating to fewer carbon footprints.

The use of high-quality materials and advanced designs in exchangers can also reduce the need for frequent replacements, further mitigating environmental impact by decreasing waste.

Maintenance Significance

Regular maintenance is key to sustaining an exchanger’s performance. Inspections help detect any potential issues early on, such as scale buildup or corrosion that could impede heat transfer efficiency. Timely servicing ensures that exchangers operate at optimal conditions, extending their service life and maintaining consistent savings numbers.

Maintenance not only prolongs the life of a heat exchanger but also maintains its efficiency, ensuring that temperature differences are exploited fully at all times. This diligence translates into long-term reliability and cost-effectiveness for HVAC systems.

Operational Costs

An efficient heat exchanger directly influences operational costs by dictating how much energy is required to achieve desired temperatures within different spaces. Systems that quickly adapt to varying temperatures without expending excessive amounts of energy offer considerable savings over time.

Moreover, the size and design of an exchanger determine its capacity to handle various fluids within specific time frames—factors that ultimately affect a building’s heating and cooling expenses.

Gas Furnace Heat Exchange Process

Fuel Combustion

Furnaces burn fuel in a combustion chamber. This process releases energy as heat. The chamber’s walls absorb the thermal radiation, heating up significantly.

Air flows around these hot surfaces. Through conduction, the walls transfer heat to the air. This warmed air then circulates throughout the building.

Heat Transfer

Metal tubes in the furnace carry combustion gases away from the living spaces. These gases are hot but harmful if inhaled, containing substances like carbon monoxide.

The heat exchanger’s design keeps these gases separate from fresh air. It allows for efficient heat transfer while ensuring indoor air quality remains safe.

Efficiency Factors

Materials used for heat exchangers impact their efficiency. Metals with high thermal conductivity ensure better heat transfer.

The shape and size of the exchanger also play roles. They influence how well it transfers heat and accommodates airflow.

Air Conditioner Heat Exchange Mechanics

Cooling Cycle

Air conditioners pull warm indoor air over cold, metal coils containing refrigerant. This fluid absorbs heat from the air, leaving it cooler as it blows back into the room. The now-warm refrigerant moves to the outdoor unit.

They expel heat outside through a forced convection process. Fans blow outdoor air over hot coils, transferring heat from the refrigerant to the outdoor air. The cooled refrigerant cycles back indoors, ready to absorb more heat.

Refrigerant Flow

Refrigerants are key in heat exchange, cycling through the system continuously. They change from liquid to gas as they absorb indoor heat and then back to liquid as they release heat outdoors. This phase change is crucial for efficient cooling.

The system’s compressor pumps refrigerant through coils. It travels inside as a low-pressure gas, absorbs heat, and exits as a high-pressure gas. In the outdoor unit, it releases its heat and condenses into a liquid again.

System Efficiency

Proper sizing of an air conditioner’s heat exchanger is vital for optimal performance. Too small, and it can’t cool effectively; too large, and it may short cycle, wasting energy.

Regular maintenance ensures efficiency and longevity. Clean coils maximize surface area contact with air, improving heat exchange. Blocked or dirty coils can’t transfer heat effectively, straining the system.

Identifying Cracks in Heat Exchangers

Warning Signs

Unusual noises from your HVAC system could signal a cracked heat exchanger. These sounds may include rattling or popping, indicating structural issues. Homeowners often notice a strange smell as well. It resembles formaldehyde and suggests harmful chemicals are seeping through cracks. Another telltale sign is a sudden drop in heating efficiency. If your energy bills spike or rooms feel unevenly heated, the heat exchanger might be compromised.

Health Risks

A damaged heat exchanger poses serious health risks. It can leak carbon monoxide, an odorless and colorless gas, into your living space. Inhalation of this gas can be fatal. Other gases like nitrogen dioxide and sulfur dioxide may also escape through cracks, leading to respiratory issues and other health problems.

Inspection Methods

Regular inspection is vital for catching cracks early. Visual checks involve looking for signs of corrosion or irregularities on the shell surface. Another method is using a combustion gas analyzer to detect abnormal levels of gases that indicate a breach in the system.

Professional Evaluation

It’s crucial to seek professional help for a thorough evaluation. HVAC technicians use advanced tools like cameras to inspect hard-to-see areas inside the heat exchanger. They also perform pressure tests to find leaks invisible to the naked eye. Professionals ensure accurate diagnosis and recommend the safest course of action.

Common Issues with Furnace Heat Exchangers

Corrosion Causes

Corrosion is a leading problem for heat exchangers. Moisture and chemicals in the air react with the metal, causing it to weaken over time. This deterioration can lead to holes or cracks in the tube walls, compromising the system’s integrity.

Regular inspections can spot early signs of corrosion. Homeowners should ensure proper ventilation to keep moisture levels low around the furnace. They might also consider using dehumidifiers in high-humidity areas to protect the exchanger from excess moisture.

Thermal Fatigue

Heat exchangers expand and contract as they heat up and cool down, which over years leads to thermal fatigue. This stress can create fractures in the metal, reducing efficiency and potentially releasing harmful gases into the home.

To minimize thermal fatigue, maintain consistent temperatures in your home. Sudden temperature changes put extra stress on the furnace components. Installing a programmable thermostat can help manage these fluctuations effectively.

Installation Errors

Improper installation can cause immediate or long-term issues for furnace heat exchangers. If not installed correctly, they may suffer from inadequate airflow or pressure imbalances, leading to premature wear.

Homeowners should hire certified professionals for installation and ensure regular maintenance checks are performed. This ensures that any installation-related problems are identified and rectified quickly.

Efficiency Impact

Issues like corrosion and thermal fatigue reduce a furnace’s efficiency. The system must work harder to produce the same amount of heat, driving up energy consumption.

Regular maintenance is critical for keeping your furnace running efficiently. Replace filters regularly, keep vents clear of obstructions, and schedule professional inspections annually.

Safety Risks

A damaged heat exchanger poses significant safety risks, including carbon monoxide leakage into living spaces. Carbon monoxide is odorless and colorless, making it a silent threat that can cause serious health issues or even death.

Installing carbon monoxide detectors near bedrooms and checking them frequently is vital for safety. Also, never ignore symptoms of exposure such as headaches or dizziness; these could indicate a leak in your system.

Preventive Measures

Proactive care extends the life of heat exchangers and ensures safe operation. Homeowners should establish a routine maintenance schedule that includes professional inspections.

They should also be aware of their furnace’s age; units older than 15 years may be at higher risk for problems due to natural wear and tear over time. Consider upgrading to a newer model if yours is approaching this age range for improved reliability and efficiency.

Maintenance Tips

Simple actions go a long way in maintaining a healthy heat exchanger:

Summary

Understanding HVAC heat exchangers is key to optimizing your home’s comfort and energy efficiency. We’ve explored their definitions, operational principles, types, and roles in both heating and cooling systems. You’ve seen how crucial they are in the function of gas furnaces and air conditioners, and learned to identify potential issues like cracks that can compromise safety and performance. Remember, regular maintenance is vital to prevent common problems with furnace heat exchangers.

Keep your system running smoothly by staying alert for signs of wear and consulting professionals for timely repairs. Your awareness and proactive care can extend the life of your HVAC unit, ensuring a cozy home environment year-round. If you suspect any issues with your heat exchanger or just want peace of mind, don’t hesitate to reach out to a trusted HVAC expert today. Your comfort and safety are paramount.

Frequently Asked Questions

What is a Heat Exchanger in HVAC?

Heat exchangers transfer heat between two or more fluids without mixing them. They’re essential for efficient heating and cooling in HVAC systems.

How Does a Heat Exchanger Work?

Heat exchangers operate on the principle of thermal conductivity, allowing heat to flow from a hotter to a cooler fluid, typically separated by metal walls to prevent mixing.

What Are the Different Types of HVAC Heat Exchangers?

Common types include shell and tube, plate, and finned tube heat exchangers. Each type has unique advantages for specific HVAC applications.

Why Are Heat Exchangers Important in HVAC Systems?

They enable energy-efficient temperature regulation by transferring heat where needed, significantly impacting comfort levels and energy costs.

How Does a Gas Furnace Use a Heat Exchanger?

A gas furnace burns fuel to heat air, which then passes over the heat exchanger’s exterior before being distributed throughout the building.

Can You Explain the Air Conditioner Heat Exchange Process?

An air conditioner’s heat exchanger absorbs indoor heat and releases it outdoors, cooling the interior space in the process.

How Can I Identify Cracks in My Heat Exchanger?

Look for signs like unusual odors, soot inside the furnace, or carbon monoxide alarms. Professional inspection is recommended for accurate diagnosis.

What Are Common Issues with Furnace Heat Exchangers?

Cracking due to thermal stress, corrosion from moisture or chemicals, and blockages are typical problems that can affect furnace heat exchangers’ performance.
