Standing water in your yard, driveway, or commercial property is more than just an inconvenience; it can lead to significant structural damage, landscape erosion, and safety hazards. According to the Federal Emergency Management Agency (FEMA), flooding is the most common and costly natural disaster in the United States, with even minor water accumulation causing thousands of dollars in damage [1]. A professionally installed catch basin drainage system is a critical infrastructure investment that actively collects and redirects surface water, preventing these issues before they escalate. This comprehensive guide provides an in-depth analysis of catch basin and trench drain systems, covering everything from design and installation to maintenance and cost. We will explore the technical specifications, authoritative standards from government agencies like the EPA, and data-driven insights to help you make an informed decision for your residential or commercial property. By understanding the engineering principles and best practices behind these systems, you can effectively manage stormwater, protect your investment, and ensure a safe, dry environment.
The Growing Need for Effective Stormwater Management
The increasing frequency of extreme weather events and rapid urbanization have placed unprecedented strain on existing drainage infrastructure, making effective stormwater management a critical concern for homeowners, businesses, and municipalities alike. The U.S. Global Change Research Program reports that heavy precipitation events have increased in frequency and intensity across most of the country since 1950, a trend that is projected to continue [2]. This surge in stormwater runoff overwhelms traditional drainage systems, leading to widespread urban flooding, soil erosion, and water quality degradation. In urban and suburban areas, the proliferation of impervious surfaces such as roads, parking lots, and rooftops exacerbates the problem by preventing natural water absorption into the ground. The Environmental Protection Agency (EPA) estimates that runoff from developed areas is a major source of pollution in our nation’s rivers, lakes, and estuaries, carrying contaminants such as oil, heavy metals, and pesticides into our waterways [3].
For residential properties, the consequences of inadequate drainage can be severe. Standing water can damage foundations, flood basements, and create breeding grounds for mosquitoes and other pests. A waterlogged yard can kill expensive landscaping and create unsafe, slippery conditions. In commercial settings, the stakes are even higher. Flooded parking lots can deter customers, disrupt operations, and create significant liability risks. Water intrusion can damage inventory, equipment, and building structures, leading to costly repairs and business interruptions. Furthermore, many municipalities now have stringent regulations requiring property owners to manage stormwater on-site to reduce the burden on public sewer systems. Failure to comply with these regulations can result in fines and legal action.
The stakeholders in this issue are diverse and interconnected. Homeowners are concerned with protecting their property value and ensuring a safe living environment. Commercial property owners and facility managers must balance the costs of drainage solutions with the risks of property damage and business disruption. Municipalities are responsible for maintaining public infrastructure and protecting water quality. Engineers and contractors are tasked with designing and installing effective and compliant drainage systems. The primary constraints in addressing this challenge are often cost, space, and regulatory complexity. Traditional drainage solutions can be expensive to install and maintain, and space limitations in urban areas can make it difficult to implement large-scale systems. Navigating the complex web of local, state, and federal regulations can also be a significant hurdle.
Catch basins and trench drains offer a versatile and effective solution to these challenges. By capturing and redirecting stormwater at its source, these systems can prevent water accumulation, reduce erosion, and filter out pollutants before they enter the larger drainage network. They are adaptable to a wide range of applications, from small residential yards to large commercial parking lots. As we will explore in the following sections, a properly designed and installed catch basin system is not just a preventative measure; it is a proactive investment in the long-term health and safety of your property and the surrounding environment. This guide will provide the detailed information necessary for all stakeholders to understand the benefits, limitations, and practical considerations of catch basin and trench drain installation.
Analysis 1: Residential Catch Basin and Trench Drain Solutions
For homeowners, managing excess water in yards, driveways, and patios is a common challenge that can have significant consequences if left unaddressed. A well-designed drainage system is essential for protecting property value and ensuring a safe, usable outdoor space. The most effective residential solutions typically involve a combination of catch basins and trench drains, each suited to different applications and site conditions. Understanding the technical specifications and proper installation of these systems is crucial for achieving long-term success.
Residential Catch Basin Installation
Plastic modular catch basins are the most common choice for residential applications due to their affordability, ease of installation, and versatility. These basins are typically made from high-density polyethylene (HDPE) or polyvinyl chloride (PVC) and come in a range of sizes, with 12″ x 12″ and 9″ x 9″ being the most popular for residential use. They are designed to be lightweight and can be easily handled by a single person, making them a popular choice for DIY projects. However, for a system to be effective and durable, professional installation is highly recommended.

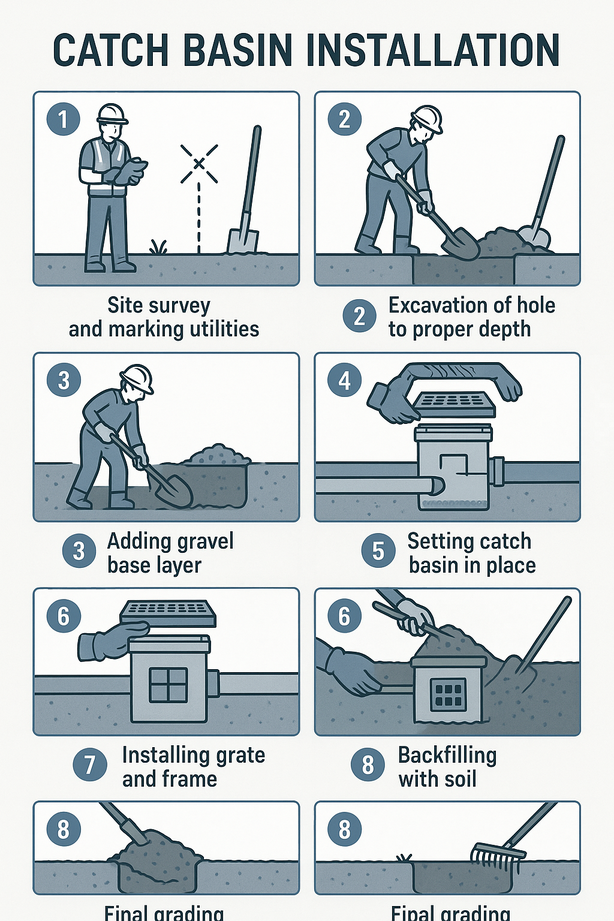

The installation process begins with a thorough site assessment to identify low spots where water accumulates and to determine the optimal location for the catch basin and drainage lines. It is critical to locate and mark all underground utilities before any digging begins. The next step is to excavate a hole for the catch basin, ensuring it is deep enough to accommodate a 6-inch gravel base for stability and drainage. The basin is then set in place and leveled, and the drainage pipes are connected. The pipes should have a minimum slope of 1% (1/8 inch per foot) to ensure proper water flow. Once the basin and pipes are connected, the trench is backfilled with soil, and the area is graded to direct water towards the catch basin. A study by the University of New Hampshire Stormwater Center found that proper grading can increase the sediment capture efficiency of a catch basin by up to 20% [4].
- **Step 1: Site Survey & Utility Marking:** Identify low spots and mark all underground utilities to prevent accidental damage.
- **Step 2: Excavation:** Dig a hole at least 6 inches deeper than the catch basin to allow for a gravel base.
- **Step 3: Gravel Base:** Add a 6-inch layer of gravel and compact it to create a stable, level base.
- **Step 4: Basin Placement:** Set the catch basin in the hole and ensure it is level.
- **Step 5: Pipe Connection:** Connect the drainage pipes to the basin outlets, ensuring a minimum 1% slope.
- **Step 6: Grate Installation:** Install the grate and frame, making sure it is flush with the surrounding grade.
- **Step 7: Backfilling:** Backfill the trench with soil, compacting it in layers to prevent settling.
- **Step 8: Final Grading:** Grade the surrounding area to direct water flow into the catch basin.
Residential Trench Drain Installation
Trench drains, also known as channel drains, are an excellent solution for managing sheet flow runoff from driveways, patios, and other paved surfaces. They consist of a long, narrow channel with a removable grate that collects water and directs it to a drainage pipe. For residential applications, trench drains are typically made from polymer concrete or plastic and come in pre-sloped sections for easy installation. They are available in a variety of widths, with 4-inch and 6-inch being the most common for residential use.
The installation of a trench drain is more involved than a catch basin and requires careful attention to detail to ensure it is structurally sound and performs correctly. The process begins with cutting a trench in the concrete or asphalt surface. The trench must be wide enough to accommodate the drain channel and a concrete encasement on both sides. The depth of the trench will depend on the size of the drain and the required slope. Once the trench is excavated, a concrete base is poured, and the drain channels are set in place. It is crucial to ensure the channels are level and properly aligned. The drainage pipe is then connected to the outlet of the trench drain. Finally, concrete is poured around the channels to lock them in place, and the grates are installed. The American Concrete Institute (ACI) recommends a minimum of 4 inches of concrete on all sides of the trench drain for residential applications to ensure adequate support [5].
Case Study: Driveway Drainage Solution
A homeowner in a high-rainfall area was experiencing significant water pooling on their sloped driveway, which was causing erosion and creating a slip hazard. A drainage contractor recommended a combination of a trench drain at the base of the driveway and a catch basin in the adjacent yard. The trench drain intercepted the sheet flow from the driveway, while the catch basin collected runoff from the surrounding lawn. The system was connected to a single drainage pipe that discharged to a nearby storm sewer. The total cost of the project was approximately $4,500, including materials and labor. The solution effectively eliminated the standing water problem and has prevented further erosion and property damage. The homeowner noted that the key to the project’s success was the contractor’s careful attention to grading and the proper sizing of the drainage components.
While this case study highlights a successful outcome, it is important to acknowledge the potential risks and limitations. Improper installation, such as an incorrect slope or inadequate concrete support, can lead to system failure. Clogging is also a common issue if the system is not regularly maintained. Homeowners should be prepared to clean out their catch basins and trench drains at least twice a year to remove sediment and debris.
Analysis 2: Commercial and Municipal Catch Basin Systems
The scale and complexity of stormwater management in commercial and municipal settings demand a more robust and engineered approach than residential applications. Large impervious areas, such as parking lots, roadways, and industrial sites, generate significant volumes of runoff that can overwhelm standard drainage systems and cause widespread flooding. Furthermore, the pollutants from these areas, including oil, grease, heavy metals, and trash, pose a serious threat to water quality. As a result, commercial and municipal catch basin systems are designed to meet stringent performance standards for both flood control and environmental protection.
Heavy-Duty Catch Basin Design and Construction
Concrete is the material of choice for commercial and municipal catch basins due to its strength, durability, and ability to be cast in large, heavy-duty configurations. These basins are typically precast and delivered to the site, or they can be cast-in-place for custom applications. Standard sizes range from 24″ x 24″ to 48″ x 48″ and larger, with depths of several feet to provide ample sediment storage. The design of these basins is governed by local and state regulations, as well as national standards from organizations such as the American Public Works Association (APWA) and the American Society for Testing and Materials (ASTM).
The construction of a commercial catch basin is a major undertaking that requires heavy equipment and a skilled construction crew. The process begins with a detailed engineering plan that specifies the location, size, and depth of the basin, as well as the layout of the connecting drainage pipes. Excavation is performed with a backhoe or excavator, and the hole is carefully prepared to ensure a stable base. The precast basin is then lowered into place with a crane, and the drainage pipes are connected. The connections are sealed with a watertight gasket or mortar to prevent leakage. The frame and grate are then installed, and the area is backfilled with compacted soil or gravel. The grates for these basins are typically made from cast iron or steel and are designed to withstand heavy traffic loads. The APWA recommends that all grates in traffic areas be rated for HS-20 loading, which is equivalent to a 16,000-pound wheel load [6].

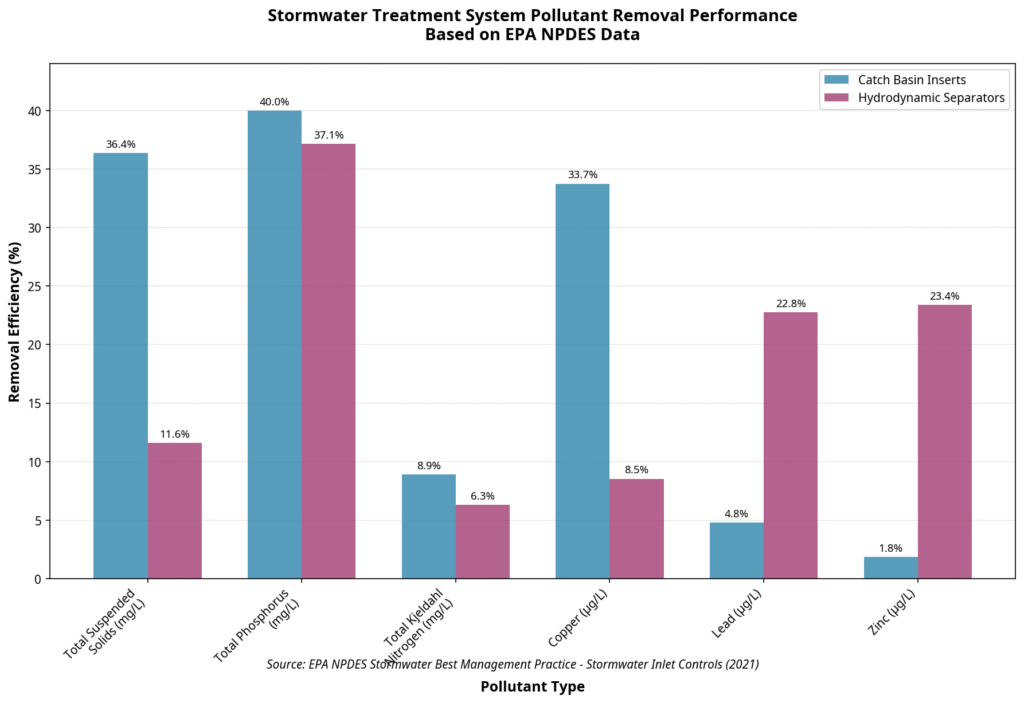

label,value Total Suspended Solids,36.4 Total Phosphorus,40.0 Total Kjeldahl Nitrogen,8.9 Copper,33.7 Lead,4.8 Zinc,1.8
Stormwater Treatment and EPA Compliance
Under the Clean Water Act, the EPA has established the National Pollutant Discharge Elimination System (NPDES) program to regulate stormwater discharges from municipal separate storm sewer systems (MS4s) and construction sites. This program requires municipalities and commercial property owners to implement best management practices (BMPs) to reduce stormwater pollution. Catch basins are a key component of many stormwater BMPs, but a standard catch basin only provides minimal pollutant removal. To meet the more stringent requirements of the NPDES program, many catch basins are now equipped with inserts or are designed as part of a larger treatment train.
Catch basin inserts are devices that are placed inside the basin to enhance pollutant removal. They can include a variety of media, such as filter fabric, absorbent booms, and settling trays, to capture sediment, oil, and other pollutants. The EPA has conducted extensive research on the effectiveness of these inserts and has found that they can provide a moderate level of pollutant removal, particularly for suspended solids and phosphorus. However, their performance is highly dependent on regular maintenance. If the inserts are not cleaned out frequently, they can become clogged and may even become a source of pollution themselves.
Hydrodynamic separators are a more advanced type of stormwater treatment device that is often used in conjunction with catch basins. These devices use a swirling, vortex motion to separate sediment and other pollutants from the stormwater. They are more effective than catch basin inserts at removing fine sediment and can also capture a significant amount of oil and other floatables. However, they are also more expensive to install and maintain. The choice between a catch basin insert and a hydrodynamic separator will depend on a variety of factors, including the specific pollutants of concern, the size of the drainage area, and the available budget.
| Control Type | Pollutant | Influent Concentration (mg/L) | Effluent Concentration (mg/L) | Removal Efficiency (%) |
|---|---|---|---|---|
| Catch Basin Inserts | Total Suspended Solids | 51.7 | 32.9 | 36.4% |
| Catch Basin Inserts | Total Phosphorus | 0.20 | 0.12 | 40.0% |
| Catch Basin Inserts | Total Kjeldahl Nitrogen | 1.80 | 1.64 | 8.9% |
| Hydrodynamic Separators | Total Suspended Solids | 33.6 | 29.7 | 11.6% |
| Hydrodynamic Separators | Total Phosphorus | 0.35 | 0.22 | 37.1% |
| Hydrodynamic Separators | Total Kjeldahl Nitrogen | 1.74 | 1.63 | 6.3% |
Case Study: Commercial Parking Lot Retrofit
A large retail center was facing fines from the local municipality for exceeding the allowable discharge of suspended solids from its parking lot. The existing drainage system consisted of standard catch basins that were not providing adequate treatment. A consulting engineer recommended retrofitting the existing catch basins with high-performance inserts that were specifically designed to capture fine sediment. The inserts were installed in all 25 catch basins in the parking lot over a period of two weeks. The total cost of the project was approximately $75,000. After the retrofit, the retail center was able to meet the municipality’s discharge requirements and avoid further fines. The facility manager noted that the key to the project’s success was selecting an insert that was easy to maintain and establishing a regular cleaning schedule.
This case study demonstrates the importance of considering water quality in the design and maintenance of commercial drainage systems. While the initial cost of a high-performance system may be higher, it can save money in the long run by avoiding fines and protecting the environment.
Analysis 3: Cost, Maintenance, and Long-Term Performance
While the initial installation of a catch basin or trench drain system is a significant investment, the long-term performance and cost-effectiveness of the system are equally important considerations. A properly designed and maintained drainage system can provide decades of reliable service, while a poorly designed or neglected system can lead to costly repairs and ongoing problems. This section provides a detailed analysis of the costs, maintenance requirements, and long-term performance of catch basin and trench drain systems.
Installation Cost Analysis
The cost of installing a catch basin or trench drain system can vary widely depending on a number of factors, including the size and complexity of the system, the type of materials used, the site conditions, and the local labor rates. The following table provides a general overview of the typical installation costs for different types of drainage systems, based on data from a variety of industry sources.

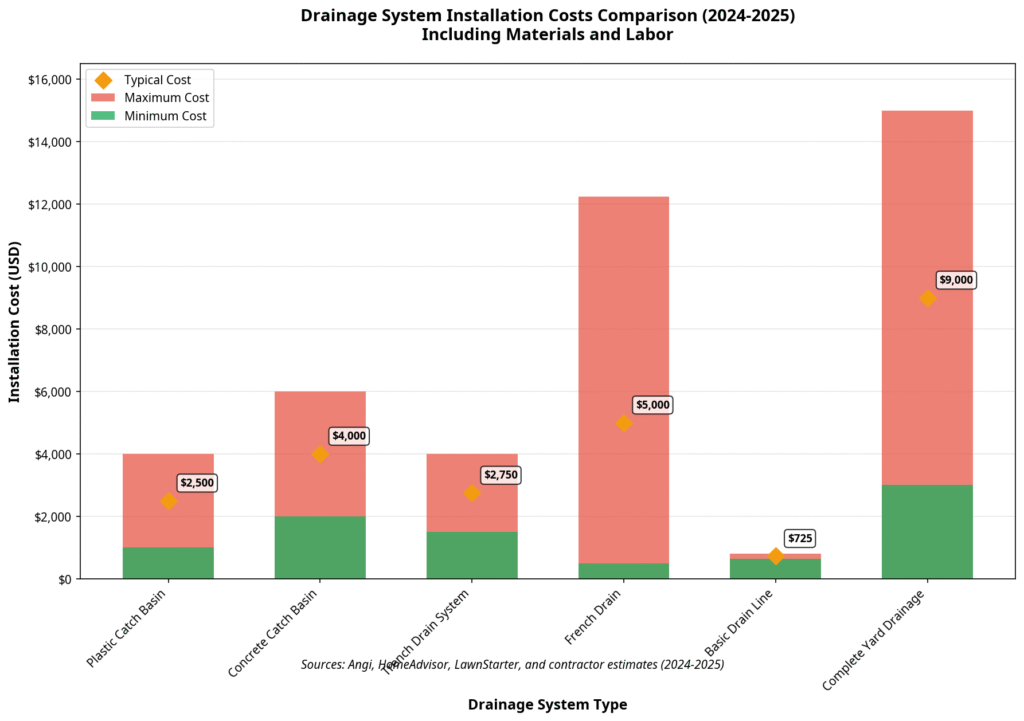

label,value Plastic Catch Basin,2500 Concrete Catch Basin,4000 Trench Drain System,2750 French Drain,5000 Basic Drain Line,725 Complete Yard Drainage,9000
As the chart illustrates, the cost of a drainage system can range from a few hundred dollars for a simple drain line to tens of thousands of dollars for a comprehensive yard drainage system. The cost of a single catch basin installation typically ranges from $1,000 to $4,000 for a plastic basin and $2,000 to $6,000 for a concrete basin. Trench drain installation costs are typically in the range of $30 to $40 per linear foot, with additional costs for the catch basin and drainage pipe connections. It is important to note that these are just general estimates, and the actual cost of a project can vary significantly. It is always advisable to get multiple quotes from qualified contractors before making a decision.
Maintenance Requirements and Best Practices
Regular maintenance is essential for ensuring the long-term performance of any drainage system. Without proper maintenance, catch basins and trench drains can become clogged with sediment, debris, and trash, which can lead to flooding and other problems. The frequency of maintenance will depend on the specific site conditions, but a general rule of thumb is to inspect and clean out the system at least twice a year, typically in the spring and fall.
The maintenance process for a catch basin involves removing the grate and manually cleaning out the sump with a shovel or a vacuum truck. The sediment and debris should be disposed of properly, as it may contain pollutants. For trench drains, the grates should be removed, and the channel should be cleaned out with a pressure washer or a long-handled brush. It is also important to inspect the system for any signs of damage, such as cracks in the concrete or a broken grate, and to make any necessary repairs.
For commercial and municipal systems, a more formal maintenance program is often required. This may include regular inspections, scheduled cleanings, and detailed record-keeping. Many municipalities now use GIS technology to track the location and condition of their catch basins and to optimize their maintenance schedules. The EPA recommends that municipalities develop a comprehensive stormwater management plan that includes a detailed maintenance program for all public and private drainage systems [7].
Long-Term Performance and Durability
The long-term performance of a catch basin or trench drain system is largely dependent on the quality of the installation and the consistency of the maintenance. A well-designed and properly installed system can provide reliable service for 20 to 30 years or more. The durability of the system will also depend on the materials used. Concrete catch basins are extremely durable and can last for decades with minimal maintenance. Plastic catch basins are also very durable, but they may be more susceptible to damage from heavy traffic or freeze-thaw cycles.
The long-term performance of the system is also affected by the surrounding environment. Changes in land use, such as new construction or the removal of vegetation, can increase the amount of runoff and sediment entering the system, which can lead to more frequent clogging and a reduced level of service. It is important to periodically reassess the performance of the system and to make any necessary adjustments to ensure it continues to function effectively.
In conclusion, a catch basin or trench drain system is a significant investment that requires careful planning, professional installation, and regular maintenance. By understanding the costs, maintenance requirements, and long-term performance considerations, property owners and facility managers can make informed decisions that will protect their property and the environment for years to come.
Action Plan: A Step-by-Step Guide to Implementing a Drainage Solution
Implementing an effective drainage solution requires a systematic approach that begins with a thorough assessment of the problem and ends with a long-term maintenance plan. This action plan provides a step-by-step guide for homeowners and property managers to follow when implementing a catch basin or trench drain system.
- Assess the Problem and Define Your Goals: The first step is to carefully assess the nature and extent of your drainage problem. Identify the areas where water accumulates, the sources of the runoff, and the potential impact on your property. Define your goals for the project, whether it is to eliminate standing water in your yard, prevent flooding in your driveway, or comply with local stormwater regulations.
- Consult with a Professional: While some simple drainage projects can be done on a DIY basis, it is always advisable to consult with a qualified drainage contractor or a civil engineer. A professional can provide a comprehensive assessment of your property, recommend the most appropriate solution, and develop a detailed design plan. They can also help you navigate the complex world of permits and regulations.
- Develop a Detailed Plan and Budget: Based on the professional’s recommendations, develop a detailed plan for the project, including the type and size of the drainage system, the layout of the pipes, and the location of the discharge point. Create a detailed budget for the project, including the cost of materials, labor, and any necessary permits.
- Select a Qualified Contractor: If you are not doing the work yourself, select a qualified contractor with experience in installing drainage systems. Get multiple quotes, check references, and make sure the contractor is licensed and insured.
- Oversee the Installation: During the installation process, it is important to stay in close communication with the contractor and to periodically inspect the work to ensure it is being done according to the plan. Pay close attention to the grading, the slope of the pipes, and the quality of the materials.
- Establish a Maintenance Plan: Once the system is installed, establish a regular maintenance plan to ensure its long-term performance. This should include regular inspections, cleaning out the catch basins and trench drains, and making any necessary repairs.
- Monitor and Adjust: After the system is in place, monitor its performance, especially after heavy rain events. If you notice any problems, such as slow drainage or water backing up, contact your contractor to make any necessary adjustments.
By following this step-by-step guide, you can ensure that your drainage project is a success and that your property is protected from the damaging effects of excess water.
Future Outlook: Innovations in Stormwater Management
The field of stormwater management is constantly evolving, driven by the increasing challenges of climate change, urbanization, and environmental protection. Future innovations in catch basin and trench drain technology are likely to focus on enhanced pollutant removal, smart monitoring systems, and more sustainable materials.
One promising area of development is the integration of advanced filtration media into catch basin inserts. Researchers are exploring new materials, such as biochar and specialized polymers, that can more effectively remove dissolved pollutants, including nutrients, heavy metals, and emerging contaminants like pharmaceuticals and personal care products. These next-generation inserts could transform catch basins from simple sediment traps into sophisticated treatment devices.
Another significant trend is the development of smart stormwater infrastructure. This includes catch basins equipped with sensors that can monitor water levels, flow rates, and pollutant concentrations in real-time. These sensors can transmit data to a central control system, allowing municipalities to optimize their drainage networks, predict potential flooding events, and deploy maintenance crews more efficiently. The integration of artificial intelligence and machine learning could further enhance these systems, enabling predictive maintenance and adaptive control strategies.
Finally, there is a growing emphasis on sustainable and resilient drainage solutions. This includes the use of recycled materials in the manufacture of catch basins and trench drains, as well as the development of systems that can withstand extreme weather events. Green infrastructure practices, such as permeable pavements and rain gardens, are also being integrated with traditional drainage systems to create a more holistic approach to stormwater management. These innovations will play a crucial role in building more resilient communities and protecting our water resources for future generations.
Key Takeaways
- Proactive Investment: A professionally installed catch basin system is a proactive investment that can prevent costly property damage from standing water and flooding.
- System Selection is Key: The choice between a plastic modular catch basin for residential use and a heavy-duty concrete basin for commercial applications depends on the specific site conditions and performance requirements.
- **Maintenance is Non-Negotiable:** Regular maintenance, including cleaning out sediment and debris at least twice a year, is essential for ensuring the long-term performance and effectiveness of any drainage system.
- EPA Compliance is Crucial: For commercial and municipal projects, compliance with EPA stormwater regulations is a critical consideration, often requiring the use of high-performance catch basin inserts or hydrodynamic separators to meet pollutant removal targets.
