Balancing Kitchen Heat and Dining Comfort in Restaurant HVAC Systems

Opening Summary

Restaurant HVAC systems face unique challenges that set them apart from conventional commercial buildings, requiring specialized engineering solutions to balance intense kitchen heat loads with comfortable dining environments. Recent data reveals that restaurants consume 2.5 to 7 times more energy per square foot than other commercial buildings, with fast-food establishments averaging 73.9 kWh per square foot annually compared to just 43.5 kWh for full-service restaurants^[1]. The critical challenge lies in managing kitchen heat loads that can range from 48 to 120 BTU per hour per square foot while maintaining optimal comfort conditions in adjacent dining areas^[2]. Advanced demand-based ventilation controls have emerged as a game-changing solution, offering potential energy savings of 30 to 50 percent while ensuring effective heat and smoke management^[3].

Context: The Growing Importance of Restaurant HVAC Efficiency in 2025

The restaurant industry’s energy consumption patterns have become increasingly scrutinized as operators face mounting pressure from rising utility costs, environmental regulations, and sustainability commitments. The sector’s disproportionate energy usage stems from the fundamental conflict between high-heat kitchen operations and the need to maintain comfortable dining environments. This challenge has intensified in 2025 as energy costs continue to climb and new building codes emphasize efficiency standards.

According to ENERGY STAR data, restaurants generally use the most electricity for refrigeration, followed by lighting, then cooling systems^[4]. However, the heating, ventilation, and air conditioning (HVAC) systems represent the most complex energy challenge because they must simultaneously address multiple competing demands: removing excess heat and moisture from kitchen areas, providing adequate ventilation for safety and air quality, maintaining comfortable temperatures in dining spaces, and managing energy costs effectively.

The financial implications are substantial. Restaurant electricity expenses typically account for 3 to 5 percent of total operating costs, with some full-service establishments spending approximately $2.90 per square foot annually on electricity alone^[1]. When combined with natural gas costs averaging $0.85 per square foot, energy expenses can significantly impact profitability in an industry known for thin margins. This economic reality has driven increased adoption of energy-efficient HVAC technologies and operational strategies.

The stakeholders involved in restaurant HVAC decisions include restaurant owners and operators seeking cost control, HVAC contractors and engineers designing systems, equipment manufacturers developing efficient technologies, utility companies offering rebate programs, and regulatory bodies establishing energy codes. Each group brings different priorities and constraints to the decision-making process, requiring solutions that balance performance, cost, and compliance requirements.

Understanding Restaurant Heat Load Calculations and Energy Patterns

The foundation of effective restaurant HVAC design lies in accurately calculating heat loads and understanding energy consumption patterns. Unlike conventional commercial buildings where heat loads are relatively predictable, restaurants present complex thermal dynamics driven by cooking equipment, occupancy fluctuations, and operational schedules. The Consortium for Energy Efficiency reports that at least 25 percent of all rooftop HVAC units are oversized, leading to inefficient operation and premature equipment wear^[3].

Restaurant heat load calculations must account for five primary sources according to ASHRAE methodology: total heat gains from kitchen appliances, heat gains from people, electrical lighting loads, solar heat gains through windows and walls, and heat gains from outdoor air^[5]. The most significant variable is kitchen appliance heat gain, which requires careful consideration of simultaneous use factors. The simultaneous coefficient—calculated as the quotient of appliances in use divided by total appliances—typically ranges from 0.5 to 0.8 in most restaurant operations, meaning not all equipment operates at peak capacity simultaneously.

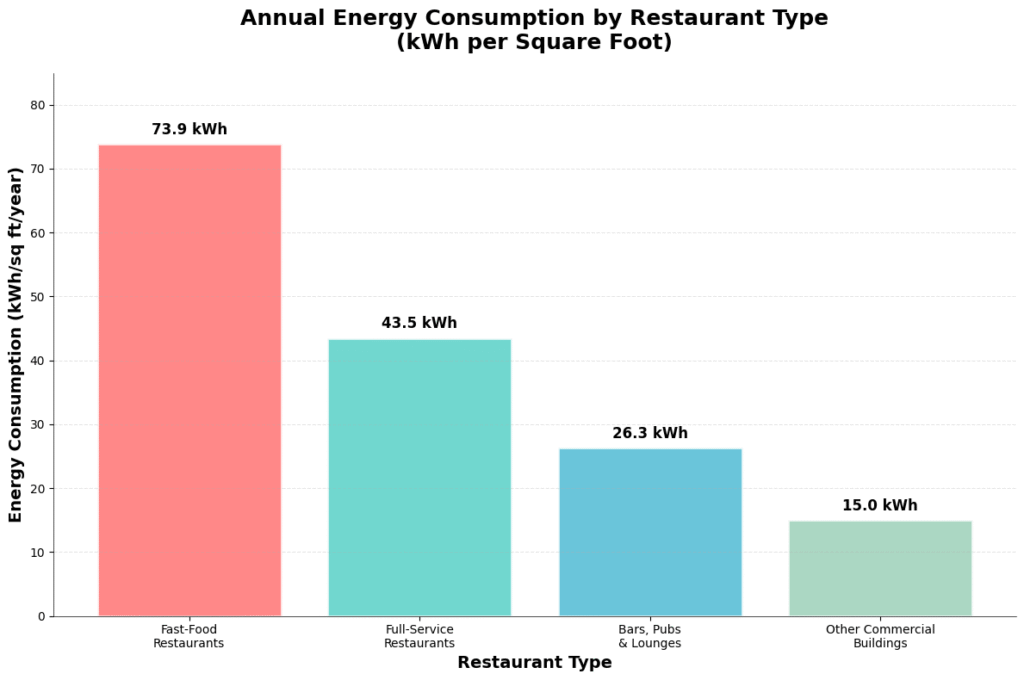

Energy Consumption Data by Restaurant Type:

Restaurant Type,Energy Consumption (kWh/sq ft/year)
Fast-Food Restaurants,73.9
Full-Service Restaurants,43.5
Bars Pubs & Lounges,26.3
Other Commercial Buildings,15.0

The data reveals striking differences in energy intensity across restaurant categories. Fast-food restaurants’ higher consumption reflects their reliance on energy-intensive equipment such as fryers, grills, and heat lamps that operate continuously during service hours. Full-service restaurants, while still consuming significantly more energy than typical commercial buildings, benefit from more varied cooking methods and typically longer preparation times that allow for more efficient equipment utilization.

Restaurant Type	Daily Energy Range (kWh)	Monthly Cost Range	Primary Heat Sources	HVAC Challenges
Fast-Food	80-150	$2,000-$4,000	Fryers, grills, heat lamps	Continuous high heat loads
Full-Service	50-100	$1,500-$3,000	Ovens, ranges, broilers	Variable heat loads
Bars/Lounges	30-60	$800-$1,500	Limited cooking equipment	Occupancy-driven loads
Cafés	25-50	$600-$1,200	Espresso machines, ovens	Peak period management

Seasonal variations significantly impact restaurant HVAC loads, with increased cooling demands during summer months and heating requirements in winter. However, the internal heat generation from kitchen equipment means that many restaurants require cooling even during moderate weather conditions. This creates unique challenges for system design and operation, as traditional heating and cooling load calculations may not accurately reflect actual operational requirements.

A case study from a 2,500 square foot full-service restaurant in New Jersey demonstrated the complexity of these calculations. During peak dinner service, the kitchen generated approximately 180,000 BTU per hour of sensible heat, requiring 15 tons of cooling capacity just to manage kitchen heat loads. However, the dining area simultaneously required only 8 tons of cooling for comfort conditioning, creating an imbalance that required careful system design to avoid over-conditioning the dining space while adequately cooling the kitchen area^[2].

HVAC Load Calculation Standards and Design Requirements

Professional HVAC load calculations for restaurants require significantly different approaches compared to conventional commercial buildings. Arthur Bell’s widely referenced “HVAC Equations Data and Rules of Thumb” establishes that restaurant cooling loads range from 48 to 120 BTU per hour per square foot for total heat, with sensible heat loads spanning 21 to 62 BTU per hour per square foot^[2]. These figures represent a dramatic increase over residential buildings, which typically require only 30 BTU per hour per square foot, highlighting the unique thermal challenges restaurants present.

The wide range in restaurant heat loads reflects the diversity of cooking equipment, operational patterns, and building configurations found across the industry. Quick-service restaurants with extensive frying operations typically fall toward the higher end of this range, while establishments with more moderate cooking loads may operate closer to the lower bounds. However, even the minimum restaurant heat loads exceed those of most other commercial building types, emphasizing the need for specialized HVAC design approaches.

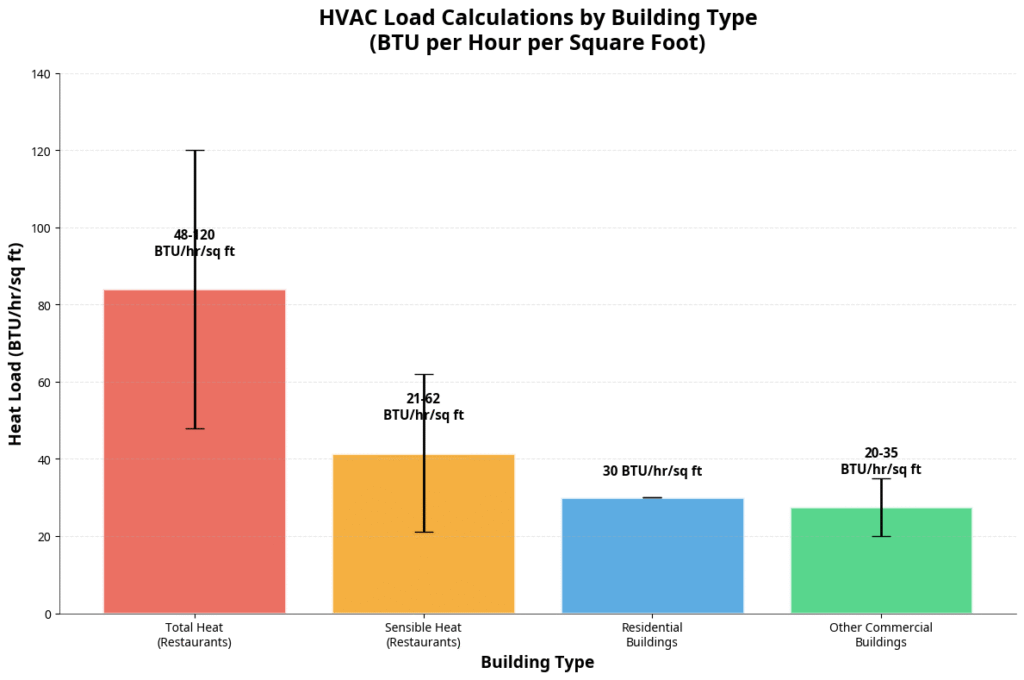

HVAC Load Calculation Data:

Load Type,Min BTU/hr/sq ft,Max BTU/hr/sq ft
Total Heat (Restaurants),48,120
Sensible Heat (Restaurants),21,62
Residential Buildings,30,30
Other Commercial Buildings,20,35

The calculation methodology for restaurant HVAC systems must incorporate several critical factors that distinguish them from standard commercial applications. Kitchen equipment heat gains vary significantly based on appliance type, with gas-fired equipment typically producing higher heat loads than electric alternatives. Fryers, for example, can generate 15,000 to 25,000 BTU per hour each, while commercial ranges may produce 40,000 to 60,000 BTU per hour depending on burner configuration and usage patterns.

Ventilation requirements add another layer of complexity to restaurant HVAC calculations. Commercial kitchen ventilation systems typically require 90 percent of the determined exhaust CFM to be supplied as make-up air, with the remaining 10 percent drawn from adjacent areas to maintain proper pressure relationships^[6]. This requirement means that HVAC systems must condition large volumes of outdoor air, significantly impacting energy consumption and system sizing requirements.

A practical example from engineering practice illustrates these challenges. A 3,000 square foot restaurant with a 600 square foot kitchen required a total cooling capacity of 25 tons, with 18 tons dedicated to kitchen heat removal and 7 tons for dining area comfort. The kitchen exhaust system moved 4,500 CFM of air, requiring 4,050 CFM of conditioned make-up air. During peak summer conditions, conditioning this make-up air required an additional 8 tons of cooling capacity, bringing the total system requirement to 33 tons—more than double what would be required for a conventional commercial building of similar size.

The limitations of these calculation methods become apparent when considering real-world operational variations. Kitchen equipment rarely operates at full capacity simultaneously, and cooking patterns vary throughout the day and across seasons. Additionally, the effectiveness of kitchen ventilation systems can significantly impact actual heat loads in dining areas. Well-designed capture hoods can contain 85 to 95 percent of cooking heat and moisture, while poorly designed or maintained systems may allow substantial heat spillage into dining areas, increasing cooling requirements.

Energy efficiency considerations have led to the development of more sophisticated calculation approaches that account for equipment diversity factors, operational schedules, and heat recovery opportunities. Modern calculation software can model these variables to provide more accurate system sizing, potentially reducing equipment costs and improving operational efficiency. However, the complexity of these calculations requires experienced HVAC professionals familiar with restaurant-specific requirements and local code compliance issues.

Advanced Ventilation Strategies and System Components

Modern restaurant HVAC systems employ sophisticated ventilation strategies that go far beyond simple exhaust fans and supply air diffusers. The integration of demand-based ventilation controls, heat recovery systems, and intelligent air management technologies has revolutionized how restaurants balance kitchen heat loads with dining comfort requirements. These advanced systems can reduce energy consumption by 30 to 50 percent while maintaining superior air quality and comfort conditions^[3].

Demand-based ventilation controls represent one of the most significant advances in restaurant HVAC technology. These systems use sensors to monitor cooking activity and automatically adjust exhaust fan speeds to match actual ventilation needs. During periods of light cooking, exhaust rates can be reduced to as low as 50 percent of maximum capacity, dramatically reducing the energy required to condition make-up air. Case studies have documented energy savings of up to 70 percent with demand control ventilation, yet less than one percent of existing ventilation systems incorporate this technology^[7].

The infographic above illustrates the complex interplay of components in a modern restaurant HVAC system. Each numbered element serves a specific function in the overall air management strategy:

• Kitchen exhaust hoods with capture zones remove heat, smoke, and moisture at the source
• Supply air diffusers in dining areas provide conditioned air for comfort
• Return air grilles collect air for recirculation and filtration
• Rooftop HVAC units provide centralized heating and cooling
• Ductwork systems distribute conditioned air throughout the facility
• Demand-based ventilation controls optimize system operation based on actual needs
• Make-up air units condition outdoor air to replace exhausted air
• Heat recovery systems capture waste heat for energy efficiency

Heat recovery systems have emerged as particularly effective technologies for restaurant applications. These systems capture waste heat from kitchen exhaust air and use it to pre-condition incoming make-up air, reducing the energy required for heating and cooling. In cold climates, heat recovery can reduce heating costs by 40 to 60 percent during winter months. However, the effectiveness of heat recovery systems depends on proper design and maintenance, as grease and moisture in kitchen exhaust can foul heat exchangers if not properly managed.

The implementation of these advanced systems requires careful attention to pressure relationships within the restaurant. Kitchen areas should operate under slight negative pressure relative to dining areas to prevent cooking odors and heat from migrating to customer spaces. Typically, kitchen areas are maintained at 0.02 to 0.05 inches of water column negative pressure compared to dining areas. This pressure differential must be maintained across varying exhaust rates when demand-based controls are employed, requiring sophisticated control systems and properly sized make-up air units.

A successful case study from a 4,200 square foot casual dining restaurant in California demonstrates the potential of integrated ventilation strategies. The facility implemented demand-based exhaust controls, heat recovery ventilation, and variable-speed make-up air units. During the first year of operation, the restaurant achieved 45 percent energy savings compared to a conventional system design, with annual utility cost reductions of $18,000. The system maintained excellent air quality and comfort conditions while reducing peak electrical demand by 35 percent.

However, these advanced systems also present implementation challenges. Initial costs can be 20 to 40 percent higher than conventional designs, requiring careful economic analysis to justify the investment. Maintenance requirements are more complex, demanding trained technicians familiar with control systems and heat recovery equipment. Additionally, local code compliance can be challenging, as many jurisdictions have not updated regulations to accommodate demand-based ventilation technologies.

The limitations of advanced ventilation strategies become apparent in certain operational scenarios. Restaurants with highly variable cooking loads may not achieve optimal savings from demand-based controls if the system cannot accurately predict ventilation needs. Similarly, heat recovery systems may be less effective in mild climates where the temperature differential between exhaust and outdoor air is minimal. Proper system commissioning and ongoing performance monitoring are essential to realize the full potential of these technologies.

Energy Efficiency Solutions and Operational Best Practices

The pursuit of energy efficiency in restaurant HVAC systems extends beyond equipment selection to encompass operational strategies, maintenance practices, and integrated building management approaches. ENERGY STAR data indicates that energy use falls by 4 to 5 percent for every degree restaurants can raise their thermostat set point, highlighting the significant impact of operational decisions on energy consumption^[3]. This sensitivity to operational parameters makes restaurant HVAC systems particularly responsive to efficiency improvements when properly implemented.

Equipment selection plays a fundamental role in achieving energy efficiency goals. ENERGY STAR certified Light Commercial HVAC equipment can deliver substantial savings, with certified ventilating fans using 70 percent less energy than standard models^[4]. Ceiling fan and light combination units certified by ENERGY STAR operate over 50 percent more efficiently than conventional alternatives, providing supplemental air circulation that can reduce HVAC loads while improving comfort distribution throughout dining areas.

The implementation of programmable thermostats and building automation systems represents a critical efficiency opportunity often overlooked in restaurant operations. These systems can automatically adjust temperature set points during unoccupied periods, implement startup and shutdown schedules for equipment, and optimize system operation based on occupancy patterns. A properly programmed thermostat can reduce energy consumption by 10 to 15 percent annually while improving comfort consistency for both staff and customers.

Efficiency Measure	Energy Savings Potential	Implementation Cost	Payback Period	Operational Benefits
Demand-based ventilation	30-50%	$15,000-$25,000	2-4 years	Improved air quality, reduced noise
Heat recovery systems	20-40%	$8,000-$15,000	3-5 years	Better temperature control
ENERGY STAR equipment	10-25%	$5,000-$12,000	2-3 years	Enhanced reliability
Programmable controls	10-15%	$2,000-$5,000	1-2 years	Automated operation
Regular maintenance	5-15%	$1,000-$3,000/year	Immediate	Extended equipment life

Maintenance practices significantly impact HVAC system efficiency and performance in restaurant environments. Kitchen exhaust systems require frequent cleaning to maintain proper airflow and prevent grease buildup that can reduce system effectiveness. Air filters should be changed monthly during heavy use periods, as dirty filters can increase energy consumption by 15 to 25 percent while reducing indoor air quality. Regular calibration of thermostats and control systems ensures optimal operation, as drift in temperature sensors can lead to significant energy waste over time.

The integration of HVAC systems with other restaurant equipment presents additional efficiency opportunities. Kitchen equipment scheduling can be coordinated with HVAC operation to minimize simultaneous peak loads. For example, implementing startup and shutdown procedures that stagger equipment activation can reduce peak electrical demand charges while allowing HVAC systems to gradually adjust to changing heat loads. This approach can reduce demand charges by 10 to 20 percent in facilities with time-of-use utility rates.

A comprehensive case study from a regional restaurant chain with 15 locations demonstrates the cumulative impact of efficiency measures. The chain implemented demand-based ventilation controls, upgraded to ENERGY STAR certified equipment, installed programmable thermostats, and established rigorous maintenance protocols across all locations. Over a three-year period, average energy consumption decreased by 35 percent per location, with annual savings of $12,000 to $18,000 per restaurant. The total investment of $180,000 across all locations achieved a payback period of 2.8 years.

However, the implementation of efficiency measures must account for operational realities and potential limitations. Demand-based ventilation systems require proper commissioning and ongoing calibration to maintain effectiveness. Sensors can become contaminated in kitchen environments, leading to inaccurate readings and suboptimal operation. Heat recovery systems may experience reduced effectiveness in mild climates or during periods when exhaust and outdoor air temperatures are similar. Additionally, some efficiency measures may conflict with food safety requirements or local health codes, requiring careful evaluation during the design phase.

The economic analysis of efficiency investments must consider both energy savings and operational benefits. While energy cost reductions provide the primary financial justification, improved comfort conditions can enhance customer satisfaction and employee productivity. Better air quality and temperature control may reduce staff turnover and improve food quality consistency. These indirect benefits, while difficult to quantify precisely, can significantly enhance the overall value proposition of HVAC efficiency investments.

Action Plan: Implementing Effective Restaurant HVAC Solutions

Restaurant operators seeking to optimize their HVAC systems should follow a systematic approach that prioritizes high-impact, cost-effective improvements while building toward more comprehensive efficiency upgrades. The implementation process should begin with a thorough assessment of current system performance, followed by strategic improvements that address the most significant energy waste and comfort issues.

Phase 1: Assessment and Quick Wins (0-3 months)

Begin with a comprehensive energy audit to establish baseline performance and identify immediate improvement opportunities. Document current energy consumption patterns, equipment specifications, and operational schedules. Implement basic maintenance improvements such as filter replacement, thermostat calibration, and ductwork inspection. These measures typically require minimal investment but can yield 5 to 15 percent energy savings immediately. Install programmable thermostats if not already present, and establish equipment startup and shutdown procedures to eliminate unnecessary operation during closed hours.

Phase 2: Equipment Upgrades and Controls (3-12 months)

Evaluate existing HVAC equipment for replacement opportunities, prioritizing units that are oversized, inefficient, or nearing end of useful life. When replacing equipment, specify ENERGY STAR certified models and ensure proper sizing based on actual load calculations rather than rules of thumb. Implement demand-based ventilation controls for kitchen exhaust systems, which typically provide the highest return on investment among efficiency measures. Consider variable frequency drives for large exhaust fans and air handling units to enable more precise airflow control.

Phase 3: Advanced Systems Integration (12-24 months)

Explore heat recovery systems for make-up air conditioning, particularly in climates with significant heating or cooling loads. Integrate HVAC controls with kitchen equipment management systems to optimize coordination between cooking operations and air conditioning loads. Consider building automation systems that can monitor and optimize performance across multiple systems simultaneously. Evaluate opportunities for renewable energy integration, such as solar water heating for kitchen operations or photovoltaic systems to offset electrical loads.

Phase 4: Performance Optimization and Monitoring (Ongoing)

Establish ongoing performance monitoring protocols to track energy consumption, system efficiency, and comfort conditions. Implement preventive maintenance schedules that address the unique requirements of restaurant environments, including frequent filter changes, exhaust system cleaning, and control system calibration. Train staff on energy-efficient operational practices and establish accountability measures for energy performance. Consider participation in utility demand response programs that can provide additional revenue while supporting grid stability.

Financial planning for HVAC improvements should leverage available incentive programs and financing options. Many utilities offer substantial rebates for ENERGY STAR certified equipment and demand-based ventilation systems. On-bill financing programs allow restaurants to implement improvements with no upfront costs, paying for upgrades through utility bill savings over time. Federal and state tax incentives may also be available for qualifying efficiency improvements, particularly those that exceed minimum code requirements.

The selection of qualified contractors and service providers is critical to successful implementation. Seek HVAC professionals with specific restaurant experience who understand the unique requirements of commercial kitchen ventilation and the integration challenges between kitchen and dining area systems. Verify that contractors are familiar with local health codes and building regulations that may impact system design. Request references from similar restaurant projects and verify that proposed solutions have demonstrated performance in comparable applications.

Future Outlook: Emerging Technologies and Market Trends

The restaurant HVAC industry is experiencing rapid technological evolution driven by advancing sensor technologies, artificial intelligence applications, and increasing emphasis on sustainability. Smart building technologies are beginning to penetrate the restaurant market, offering unprecedented opportunities for energy optimization and operational efficiency. Machine learning algorithms can analyze historical performance data to predict optimal system operation, potentially achieving energy savings beyond what traditional control systems can deliver.

Internet of Things (IoT) sensors are becoming more affordable and reliable, enabling real-time monitoring of air quality, temperature, humidity, and equipment performance throughout restaurant facilities. These sensors can provide early warning of maintenance issues, optimize ventilation based on actual air quality conditions, and enable predictive maintenance strategies that reduce equipment downtime while improving efficiency. The integration of IoT technologies with cloud-based analytics platforms allows restaurant operators to monitor multiple locations remotely and identify optimization opportunities across their entire portfolio.

Electrification trends in commercial kitchens present both opportunities and challenges for HVAC system design. Electric cooking equipment typically produces different heat load patterns compared to gas-fired alternatives, potentially allowing for more precise load management and improved integration with HVAC controls. However, the increased electrical loads may require upgraded electrical infrastructure and could impact utility demand charges. Heat pump technologies are advancing rapidly, with new refrigerants and improved efficiency ratings making them increasingly viable for restaurant applications even in extreme climates.

Regulatory trends are likely to drive continued emphasis on energy efficiency and environmental performance. Building energy codes are becoming more stringent, with some jurisdictions implementing performance-based standards that require actual energy consumption to meet specified targets. Carbon reduction mandates may influence equipment selection and operational strategies, particularly for restaurant chains with corporate sustainability commitments. The phase-out of high global warming potential refrigerants will require equipment upgrades over the next decade, presenting opportunities to implement more efficient technologies.

However, several risks and challenges may impact the adoption of advanced HVAC technologies in restaurants. The industry’s traditionally thin profit margins and high failure rates create conservative investment attitudes that may slow technology adoption. Skilled technician shortages could limit the availability of qualified service providers for complex systems. Additionally, the rapid pace of technological change creates risks of premature obsolescence for early adopters of emerging technologies.

Key Takeaways

• Energy Intensity: Restaurants consume 2.5 to 7 times more energy per square foot than other commercial buildings, with fast-food establishments averaging 73.9 kWh per square foot annually compared to 43.5 kWh for full-service restaurants.
• Heat Load Requirements: Restaurant HVAC systems must handle total heat loads of 48 to 120 BTU per hour per square foot, significantly exceeding the 30 BTU per hour per square foot required for residential buildings.
• Efficiency Opportunities: Demand-based ventilation controls offer the highest return on investment, providing 30 to 50 percent energy savings while maintaining superior air quality and comfort conditions.
• Operational Impact: Energy use decreases by 4 to 5 percent for every degree of thermostat adjustment, demonstrating the significant impact of operational decisions on overall energy consumption.

References

1. KitchenAll. “Restaurant Electricity Consumption: Bills, Factors and Different Restaurant Equipment Energy Consumption.” December 25, 2024. https://www.kitchenall.com/blog/restaurant-energy-consumption.html
2. Eng-Tips Engineering Forum. “Restaurant Load Calc Rule of Thumb.” January 25, 2011. https://www.eng-tips.com/threads/restaurant-load-calc-rule-of-thumb.290611/
3. Pacific Gas and Electric Company. “8 HVAC solutions for restaurant dining areas.” March 12, 2024. https://www.pge.com/en/business-resources/business-center/hvac-solutions-for-restaurants.html
4. ENERGY STAR. “ENERGY STAR for Small Business: Restaurants.” U.S. Environmental Protection Agency. https://www.energystar.gov/buildings/resources-audience/small-biz/restaurants
5. Tabunshchikov, Iurii A., Alexander N. Kolubkov, Marianna M. Brodach, and Iurii S. Avakian. “Calculating Airflow Rates, Cooling Loads in Commercial Kitchens.” ASHRAE Journal, vol. 62, no. 8, August 2020. https://www.ashrae.org/technical-resources/ashrae-journal/featured-articles/calculating-airflow-rates-cooling-loads-in-commercial-kitchens
6. Solutions for Air. “Commercial Kitchen Ventilation Rules of Thumb.” https://www.solutionsforair.com/resources/rulesofthumb/commercialkitchen.aspx
7. Consortium for Energy Efficiency. “Commercial Kitchen Ventilation – Demonstrating Savings in the Field.” https://cee1.org/index.php/program-insights/commercial-kitchen-ventilation-demonstrating-savings-in-the-field/
